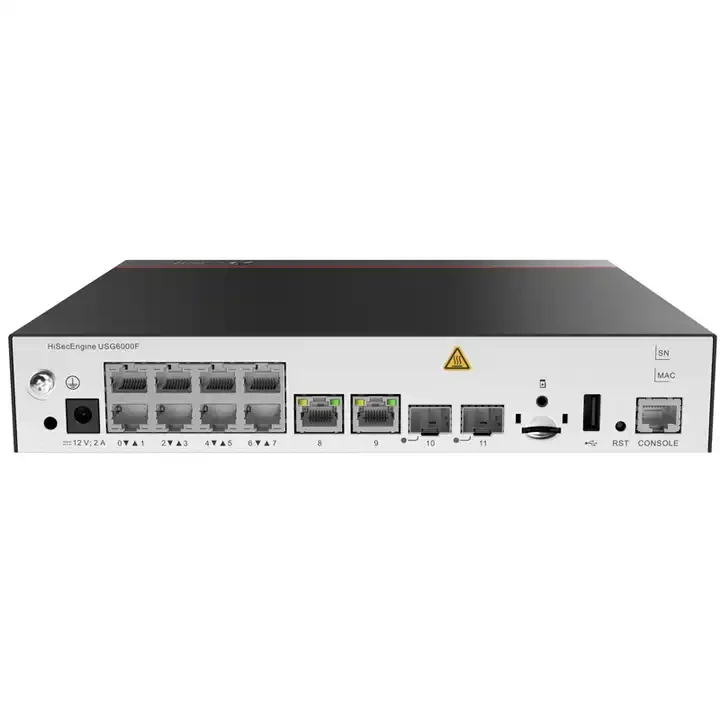

USG6510F-D HiSecEngine USG6000F Series Enterprise Rackmount Security Gateway AI Multi-port Firewall
|
Installation Type
|
Rack,Work bench,Against the wall
|
||
|
Cabinet installation standard
|
Cabinet with a depth of 300 mm or above
|
||
|
Wide [mm]
|
250 mm
|
||
|
Depth [mm]
|
210 mm
|
||
|
Height [mm]
|
43.6 mm
|
||
|
Chassis height [U]
|
1
|
||
|
Weight without packaging [kg(lb)]
|
1.55 (3.42)
|
||
|
Weight with packaging [kg(lb)]
|
2.72 (6.0)
|
||
|
Maximum power consumption [W]
|
23.67
|
||
|
Maximum heat dissipation [BTU/hour]
|
80.8
|
||
|
Heat dissipation mode
|
Has no fan and uses natural cooling.
|
||
|
Power supply mode
|
Power adapter external
|
||
|
Rated input voltage [V]
|
100 V to 240 V, 50 Hz/60 Hz
|
||
|
Input voltage range [V]
|
90 V to 264 V, 47 Hz to 63 Hz
|
||
|
Maximum output power [W]
|
36
|
||
|
Maximum input current [A]
|
1
|
||
|
CPU
|
1 CPU, 4 cores/CPU, up to 1.2 GHz
|
||
|
Memory
|
DDR4 4 GB
|
||
|
NOR Flash
|
64MB
|
||
|
NAND Flash
|
2 GB
|
||
|
Hard disk
|
Optional. Purchase one 64-GB micro SD card from Huawei as required.
|
||
|
Number of power modules
|
1
|
||
|
Number of fan modules
|
0
|
||
|
Types of fans
|
None
|
||
|
Long-term operating temperature [°C(°F)]
|
0°C to 45°C
|
||
|
Storage temperature [°C(°F)]
|
-40°C to 70°C
|
||
|
Long-term operating relative humidity [RH]
|
5% RH to 95% RH, non-condensing
|
||
|
Storage relative humidity [RH]
|
5% RH to 95% RH, non-condensing
|
||
|
Long-term operating altitude [m(ft.)]
|
0 m to 5000 m
|
||
|
Storage altitude [m(ft.)]
|
0 m to 5000 m
|
||
|
MTBF [year]
|
57.29
|
||
|
MTTR [hour]
|
2
|
||
|
Console port
|
RJ45
|
||
