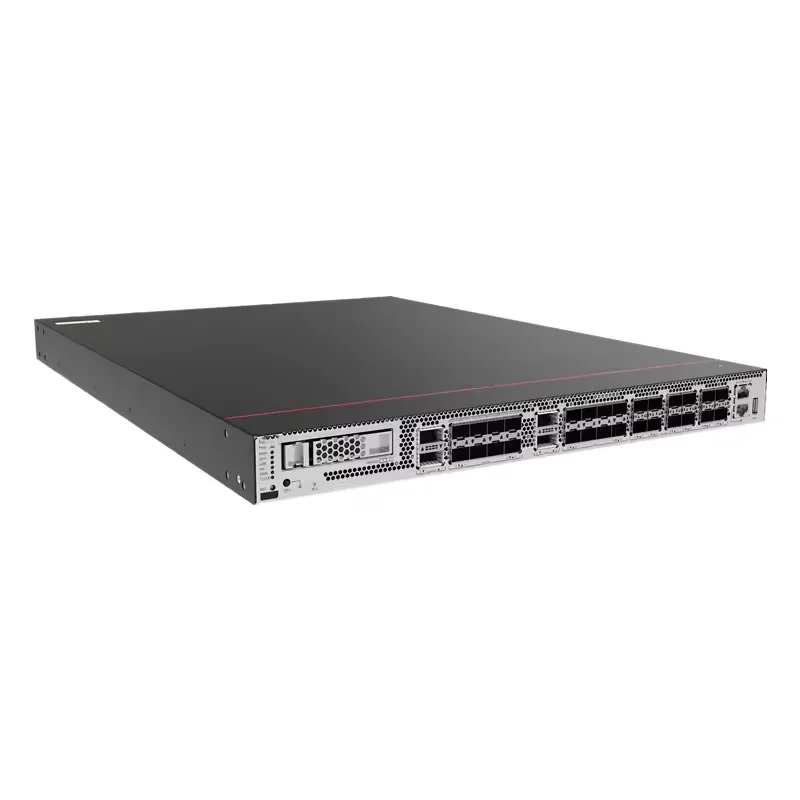

USG6635F HiSecEngine USG6000F Series Enterprise Rackmount Security Gateway AI Multi-port Firewall
5.0
Samples:
$1000.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
USG6635F
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Simultaneous Sessions
without
Throughput
without
VPN Support
Yes
Weight
11 kg
Products Status
Stock
Place of Origin
Guangdong, China
Type
Wired & Wireless
Products Description
HiSecEngine USG6500F series AI firewalls are new-generation AI firewalls launched for small enterprises, industry branches, and chain business organizations. With unique content detection engine (CDE), the USG6500F series can detect viruses with over 100 layers of compression and multi-layer hidden viruses. Through integrated deployment of the network and security controllers, network and security policies can be configured and delivered in a unified manner, reducing OPEX by 80%.
Details Images
Specification
|
Item
|
Specification
|
|
Installation Type
|
Rack
|
|
Cabinet installation standard
|
Cabinet with a depth of 600 mm or above
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
Typical dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in.)
|
|
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442 mm x
470 mm (1.72 in. x 17.4 in. x 18.5 in.) |
|
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
185 mm x 550 mm x 650 mm (7.28 in. x 21.65 in. x 25.59 in.)
|
|
Chassis height [U]
|
1 U
|
|
Weight with packaging [kg(lb)]
|
10.3 kg (22.71 lb)
|
|
Weight without packaging [kg(lb)]
|
7.3 kg (16.09 lb)
|
|
Weight with packaging (full configuration) [kg(lb)]
|
10.3 kg (22.71 lb)
|
|
CPU
|
USG6635F-AC (02353WAV): 1 CPU, 16 Cores/CPU, up to 2.0 GHz
|
|
USG6635F-DC (02355FDP): One CPU, 16 cores/CPU, 2.0 GHz dominant frequency
|
|
|
Memory
|
USG6635F-AC (02353WAV): DDR4 32GB with ECC
|
|
USG6635F-DC (02355FDP): 32 GB DDR4, supporting ECC
|
|
|
NOR Flash
|
64MB
|
|
NAND Flash
|
USG6635F-AC (02353WAV): 4 GB
|
|
USG6635F-DC (02355FDP): 4GB
|
|
|
Hard disk
|
USG6635F-AC (02353WAV): Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB/1920 GB) from Huawei based on
the site requirements. The hard disk is hot swappable. |
|
USG6635F-DC (02355FDP): Optional. Purchase a 2.5-inch hot-swappable SATA hard disk (240 GB, 960 GB, 1000 GB or 1920 GB) from
Huawei. |
|
|
Console port
|
RJ45
|
|
Eth Management port
|
RJ45
|
|
Maximum power consumption [W]
|
USG6635F-AC (02353WAV): 242 W
|
|
USG6635F-DC (02355FDP): 247 W
|
|
|
Maximum heat dissipation [BTU/hour]
|
USG6635F-AC (02353WAV): 825.7 BTU/hour
|
|
USG6635F-DC (02355FDP): 842.8 BTU/hour
|
|
|
MTBF [years]
|
46.11 years
|
|
MTTR [hours]
|
1 hours
|
|
Availability
|
0.999998
|
|
Power supply mode
|
USG6635F-AC (02353WAV): AC built-in
|
|
USG6635F-DC (02355FDP): Built-in DC PM
|
|
|
Number of power modules
|
2
|
|
Rated input voltage [V]
|
USG6635F-AC (02353WAV):
|
|
AC: 100 V to 240 V, 50 Hz/60 Hz
|
|
|
High-voltage DC: 240 V, DC
|
|
|
USG6635F-DC (02355FDP):
|
|
|
+48 V DC
|
|
|
-48 V DC to -60 V DC
|
|
|
Input voltage range [V]
|
USG6635F-AC (02353WAV):
|
|
AC: 90 V to 290 V, 45 Hz to 65 Hz
|
|
|
High-voltage DC: 190–290 V, DC
|
|
|
USG6635F-DC (02355FDP):
|
|
|
+40 V DC to +57 V DC
|
|
|
-38.4 V DC to -72 V DC
|
|
|
Maximum input current [A]
|
USG6635F-AC (02353WAV): 8 A
|
|
USG6635F-DC (02355FDP): 38 A
|
|
|
Maximum output power [W]
|
USG6635F-AC (02353WAV): 600 W
|
|
USG6635F-DC (02355FDP): 1200 W
|
|
|
Types of fans
|
Pluggable
|
|
Number of fan modules
|
4
|
|
Heat dissipation mode
|
USG6635F-AC (02353WAV): The fan module locates at the air exhaust of the system.
|
|
USG6635F-DC (02355FDP): Absorbing cold air into the device
|
|
|
Airflow direction
|
USG6635F-AC (02353WAV): Air intake vent from front and air outlet from rear.
|
|
USG6635F-DC (02355FDP): Air flows in from the front panel and exhausts from the rear panel.
|
|
|
Redundant power supply
|
1+1
|
|
Redundant fans
|
3+1
|
|
Noise at normal temperature (acoustic power) [db(A)]
|
USG6635F-AC (02353WAV): ≤72 dB(A)
|
|
USG6635F-DC (02355FDP): ≤ 72 db(A)
|
|
|
Long-term operating temperature [°C(°F)]
|
USG6635F-AC (02353WAV):
|
|
Without hard disk driver: 0°C to 45°C
|
|
|
With hard disk driver: 5°C to 40°C
|
|
|
USG6635F-DC (02355FDP):
|
|
|
Without HDDs: 0°C to 45°C
|
|
|
With HDDs: 5°C to 40°C
|
|
|
Storage temperature [°C(°F)]
|
-40°C to 70°C
|
|
Long-term operating relative humidity [RH]
|
5% RH to 95% RH, non-condensing
|
|
Storage relative humidity [RH]
|
5% RH to 95% RH, non-condensing
|
|
Long-term operating altitude [m(ft.)]
|
USG6635F-AC (02353WAV):
|
|
Without hard disk driver: 0 m to 5000 m
|
|
|
With hard disk driver: 0 m to 3000 m
|
|
|
USG6635F-DC (02355FDP):
|
|
|
Without HDDs: 0 m to 5000 m
|
|
|
With HDDs: 0 m to 3000 m
|
|
|
Storage altitude [m(ft.)]
|
0 m to 5000 m
|
Why Choose Us
1.Table And Wide Supply Chain System
We have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
2.Competitive Price
We ensure the most competitive price.Warm reminders here, telecommunications equipment configuration is quite different, the price show
3.Safe And Easy Payment Solutions
We support a variety of payment methods, such as T/T, credit card, et
4.Strong Pre-Sales And After-Sales Services
To provide customers with professional pre- sales service, as well as after-sales technical Services
5.More Than 20 Years Industry Experience
We have been engaged in this industry more than 20 years, we have rich industry experience.
6.Fast Delivery And Shipping
Fast, professional and reliable delivery.
FAQ
Q: How about your main products?
A:Our product lines include Switches.Routers,OLTs,SDHs. Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
Q: What brand of products do you offer?
A:We are devoted to offering Huawei, ZTE, Cisco, Ruijie and other network equipment brands
Q:Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q: What trade terms do you use ?
A: We offer EXW.FOB,CIF and CNF or as your request.
Q: How about your delivery time?
A:Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A:Yes we have professional engineer to test all devices before shipping.
