Hw Airengine 9700-m1 Wireless Access Controller
Imagine walking into a world where seamless connectivity is the norm. With the Hw Airengine 9700-m1 Wireless Access Controller, bringing a futuristic touch to your network management is as easy as a flick of a switch. Experience the power of effortless control and top-notch security all in one sleek and sophisticated device. Elevate your network game with the Hw Airengine 9700-m1.
Efficient Wireless Access Control
The Hw Airengine 9700-m1 Wireless Access Controller provides high-performance management for up to 3072 Access Points, ideal for medium to large campus networks, enterprise offices, and wireless MANs. With 12 GE ports, 12 10GE SFP+ ports, and 2 40GE QSFP+ ports, this AC offers adaptable solutions for various networking needs. Backed by over 10 years of industry experience, Chongqing Yujia Technology Co., Ltd. ensures reliable quality, competitive pricing, safe payment options, fast delivery, and excellent pre-sales and after-sales services for a seamless customer experience.
Product Specification
|
Item |
Specification |
|
Installation Type |
Rack |
|
Dimensions without packaging (H x W x D) [mm(in.)] |
Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.) |
|
Maximum: 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.40 in. x 17.48 in.) |
|
|
Weight without packaging [kg(lb)] |
6.25 kg (13.78 lb) |
|
Storage |
M.2 memory card 32 GB |
|
Console port |
RJ45 |
|
Eth Management port |
RJ45 |
|
Maximum power consumption [W] |
163.4 W |
|
Maximum heat dissipation [BTU/hour] |
557.49 BTU/hour |
|
Power supply mode |
Pluggable power supply |
|
Number of power modules |
2 |
|
Service port surge protection [kV] |
6 kV in common mode |
|
Types of fans |
Pluggable |
|
Number of fan modules |
3 |
|
Maximum number of physical ports on the entire device |
2*40G (QSFP+)+12*10GE (SFP+)+12*GE |
|
One 40G interface and four 10G interfaces are mutually exclusive. |
|
|
Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
|
Storage temperature [°C(°F)] |
–40°C to +70°C (–40°F to +158°F) |
|
Long-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
|
Long-term operating altitude [m(ft.)] |
–60 m to +5000 m (–196.85 ft to +16404.20 ft) |
|
Atmospheric pressure [kPa] |
53kPa - 106kPa ETSI 300 019-2-3 |
|
Noise at normal temperature (acoustic power) [dB(A)] |
≤ 55 dBA |
|
Ground |
Ground |
|
USB |
Standard USB 3.0(HOST TYPE A) ×1 |
|
MTBF [year] |
28 year |
|
MTTR [hour] |
2 hour |

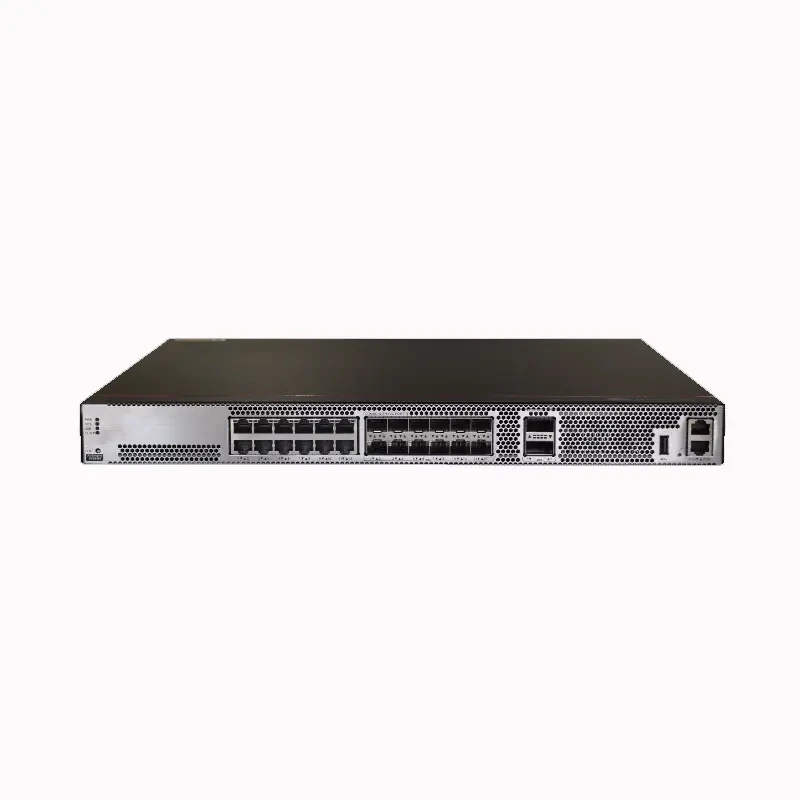

Product Display
The Advantages of Hw Airengine 9700-m1 Wireless Access Controller
Efficient, Secure Connectivity Management
The Hw Airengine 9700-m1 Wireless Access Controller is a high-performance AC designed for medium to large enterprise campuses, branches, and school campuses. It can manage up to 3072 Access Points, offering up to 120 Gbit/s forwarding performance. When paired with HW APs, it provides a flexible solution for medium to large campus networks, office networks, MANs, and hotspot coverage, making it an essential tool for efficient and reliable network management.
