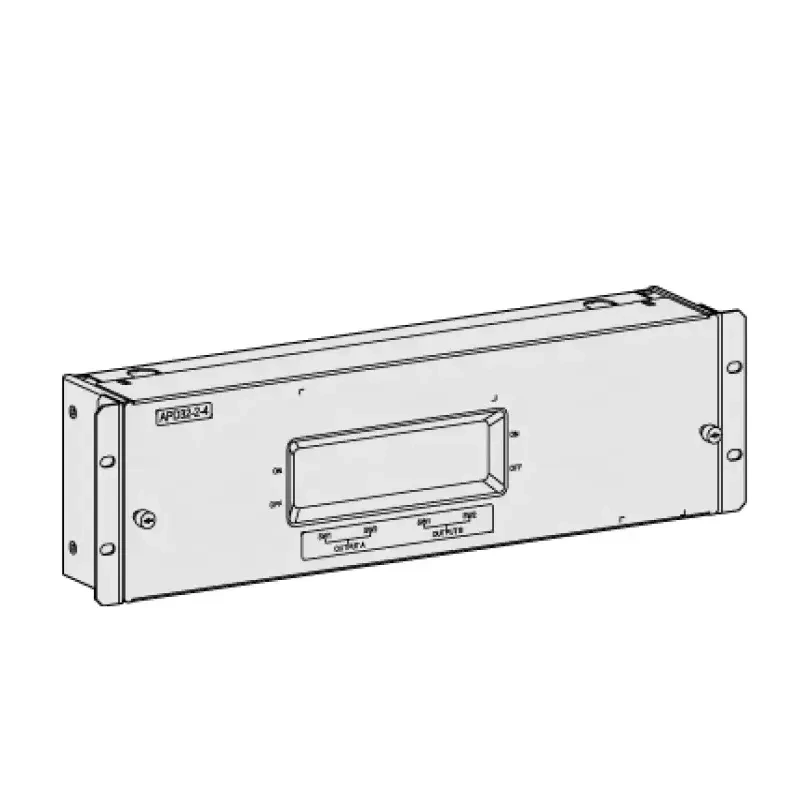

IM1W24APD 02355418 2200 W AC power distribution box for h w

Input

Input voltage

Rated voltage: 100 V AC to 240 V AC

Operating voltage: 90 V AC to 276 V AC

Input mode

Typical application: two AC inputs (1+1). The delivered terminal block has two AC input terminals (1+1) by default.

Three AC inputs (2+1)

Four AC inputs (2+2)

Maximum input current

Two AC inputs (1+1): 32 A + 32 A (maximum)

Three AC inputs (2+1): 16 A x 2 + 32 A (maximum)

Four AC inputs (2+2): 16 A x 4 (maximum)

Frequency

50/60±3 Hz

Output

Output voltage

Rated voltage: 100 V AC to 240 V AC

Operating voltage: 90 V AC to 276 V AC

Number of outputs

Four outputs, with short-circuit protection function

Current of each output

16 A (maximum)

Output protection

Overcurrent protection and short-circuit protection (Power supply needs to be restored manually once the power distribution box enters a protection state.)

Environment specifications

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Relative humidity

5% to 95%

Altitude

-60 m to +3000 m (-197 ft. to +9483 ft.)

Safety standards compliance

EN60950-1, IEC60950-1

Environmental standards compliance

RoHS, WEEE,  regulation on the 13 hazardous substances

Dimensions (H x W x D)

133 mm x 436 mm x 94.5 mm (5.2 in. x 17.2 in. x 3.7 in.)

Color

NC purple gray

Model

IM1W24APD

Part number

02355418
