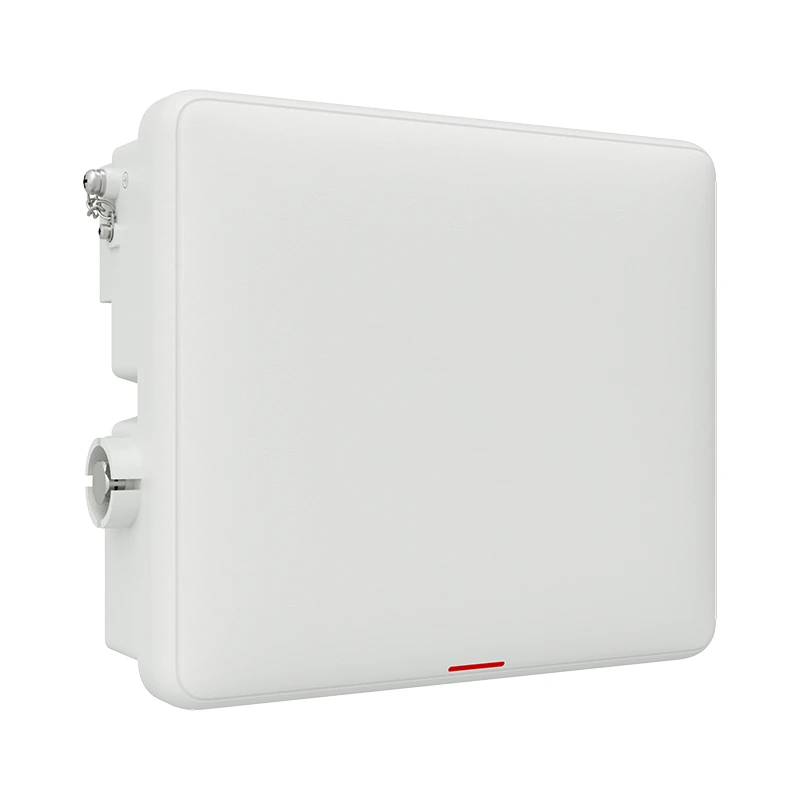

Industrial AP AirEngine 5776I-X7H Outdoor Wireless Access Point with omnidirectional antenna
● Model No.: AirEngine 5776I-X7H
● Port details: 1×10GE SFP + optical port, 1×2.5GE electrical port
● Application scenarios: Outdoor coverage scenarios such as plazas, stadiums, scenic spots, and amusement parks
● Feature: 360° full coverage, high-density concurrency, industrial-grade reliability
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
Plazas/Civic Centers: In open areas such as plazas and pedestrian streets, built-in omnidirectional antennas provide 360° all-around coverage, reducing the number of access points (APs) and lowering TCO.
Parks/Scenic Spots: In tourist attractions, parks, and other scenarios requiring wide-area coverage, IP68 protection ensures stable operation under sun and rain.
Street Centers/Intersections: In locations requiring all-around coverage, such as street centers and road intersections, omnidirectional antennas guarantee signal coverage in all directions.
Sports Venue Surroundings: Provides highly reliable wireless access in open areas such as plazas surrounding sports venues and spectator gathering areas.
Key selling points
Built-in high-performance omnidirectional antenna provides 360° coverage without dead zones. Installation requires no additional antenna adjustments, ensuring efficient deployment and making it suitable for open environments such as plazas, parks, and scenic areas.
Supports 320MHz bandwidth, 4096-QAM, MLO, OFDMA, and other technologies, with 6 concurrent streams and a 6.45Gbps speed, meeting the high-bandwidth demands of high-density users, high-definition video, and AR/VR applications.
IP68 dust and water resistance, -40℃ to +70℃ ultra-wide temperature range, and 6kV lightning protection ensure long-term stable operation in harsh outdoor environments such as heavy rain, sandstorms, and extreme cold/heat.
10GE optical port + 2.5GE electrical port dual uplink support supports hybrid fiber optic cables and Mesh self-organizing networks, meeting the needs of long-distance backhaul and cabling-free expansion scenarios.
Detailed description
| parameter item | Specification Description |
| Product Model | AirEngine 5776I-X7H |
| product form | Outdoor AP (supporting pole/wall mounted installation) |
| Applicable scenarios | Outdoor open scenes such as squares, parks, block centers, scenic spots, amusement parks, etc |
| wireless protocol | Wi-Fi 7 (802.11be)， Fully compatible with 802.11a/b/g/n/ac/ax |
| Antenna type | Built in omnidirectional antenna (360 ° all-round coverage) |
| RF and Space Flow | Dual RF design: 2.4GHz (2 × 2:2)+5GHz (4 × 4:4), with 6 spatial streams for the entire machine |
| Maximum speed of the whole machine | 6.45 Gbps |
| interface | 1 x 10GE SFP+optical port (supporting optoelectronic hybrid cables)+1 x 2.5GE electrical port (PoE_IN) |
| power supply method | PoE power supply (compliant with 802.3bt/at/af standard) or DC (43.2V~57.6V) |
| maximum number of users | ≤ 1200 |
| Physical dimensions (width x depth x height) | 250 mm × 220 mm × 92 mm |
| Operating Temperature | -40℃ ～ +70℃ |
| Protection level | IP68 (completely dust-proof, continuous immersion protection) |
| Lightning protection capability | Ethernet interface: 6KA/6kV enhanced lightning protection |
| security features | Support Wi Fi security shield to prevent malicious users from sniffing attacks |
| Expansion of the Internet of Things | Built in BLE 5.2 Bluetooth, supports Bluetooth serial port operation and maintenance through CloudCampus APP |
| working mode | Fit, Fat, Cloud Management |
