Industrial Grade Hw Network Switch with 8*10/100/1000base-t and 4*GE SFP Ports
Imagine a bustling warehouse, where every corner is alive with activity. In the heart of it all stands the Industrial Grade Hw Network Switch, a powerful and reliable piece of machinery designed to keep the operations running seamlessly. With its 8*10/100/1000base-t and 4*GE SFP Ports, this switch is a true lifesaver for any industrial setting, ensuring smooth communication and connectivity at all times. Look no further for a dependable network switch that will keep your business running like a well-oiled machine.
Efficient, Reliable, Robust Networking
The Industrial Grade HW Network Switch with 8*10/100/1000base-t and 4*GE SFP Ports offers unmatched reliability and multiple security controls, ensuring seamless operation for your network. With its Smart iStack stack technology and durable construction, this switch delivers high-quality performance in a compact design. Trust in Chongqing Yujia Technology Co., Ltd. for over 10 years of experience and a commitment to providing top-notch networking products at competitive prices.
Product Specification
|
Item |
Specification |
|
Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 120.0 mm x 133.0 mm (5.91 in. x 4.72 in. x 5.24 in.) |
|
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 120.0 mm x 142.0 mm (6.38 in. x 4.72 in. x 5.59 in.) |
|
|
Dimensions with packaging (H x W x D) [mm(in.)] |
175.0 mm x 280.0 mm x 230.0 mm (6.89 in. x 11.02 in. x 9.06 in.) |
|
Weight without packaging [kg(lb)] |
2.08 kg (4.59 lb) |
|
Weight with packaging [kg(lb)] |
2.54 kg (5.6 lb) |
|
Typical power consumption [W]
|
25.3 W (12 V power supply, 25°C, no wind, 100% traffic) |
|
27.9 W (48 V power supply, 25°C, no wind, 100% traffic) |
|
|
Typical heat dissipation [BTU/hour]
|
86 (12 V power supply, 25°C, no wind, 100% traffic) |
|
95 (48 V power supply, 25°C, no wind, 100% traffic) |
|
|
Maximum power consumption [W] |
33.80 W (60 V power supply, 60°C, no wind, 100% traffic) |
|
Maximum heat dissipation [BTU/hour] |
115 BTU/hour |
|
Static power consumption [W] |
16.2W ( 12V@25°C ); 19.2W (48V@25°C) |
|
MTBF [years] |
78.4 years |
|
MTTR [hours] |
2 hours |
|
Availability |
> 0.99999 |
|
Noise at normal temperature (acoustic power) [dB(A)] |
Noise-free (no fans) |
|
Noise at normal temperature (acoustic pressure) [dB(A)] |
Noise-free (no fans) |
|
Number of card slots |
0 |
|
Number of power slots |
0 |
|
Number of fans modules |
0 |
|
Redundant power supply |
1+1 |
|
Long-term operating temperature [°C(°F)]
|
Altitude of 0–1800 m (0–5906 ft.), industrial optical modules: |
|
Installed in a sealing cabinet: -40°C to +60°C (-40°F to +140°F) |
|
|
Installed in a ventilation cabinet, with the wind speed of at least 40 LFM: -40°C to +70°C (-40°F to +158°F) |
|
|
Installed in a ventilation cabinet that is equipped with fans and has a fan speed of at least 200 LFM: -40°C to +75°C (-40°F to +167°F) |
|
|
Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature [°C(°F)] |
–40°C to +85°C (–40°F to +185°F) |
|
Long-term operating relative humidity [RH] |
5% RH to 95% RH (non-condensing) |
|
Long-term operating altitude [m(ft.)] |
0–5000 m (0–16404 ft.) |
|
Storage altitude [m(ft.)] |
0-5000 m (0-16404 ft.) |
|
Power supply mode |
DC extermal |
|
Rated input voltage [V] |
DC input: 12 V DC to 48 V DC |
|
Input voltage range [V] |
DC input: 9.6 V DC to 60 V DC |
|
Maximum input current [A] |
5A |
|
Memory |
2 GB |
|
Flash memory |
Physical space: 1 GB |
|
Console port |
RJ45 |
|
Eth Management port |
Not Supported |
|
USB |
Supported |
|
RTC |
Not Supported |
|
RPS input |
Not supported |
|
Service port surge protection [kV] |
Common mode: ±4 kV |
|
Power supply surge protection [kV] |
DC power module: ±4 kV in common mode and ±2 kV in differential mode |
|
Ingress protection level (dustproof/waterproof) |
IP40 |
|
Types of fans |
None |
|
Heat dissipation mode |
Natural heat dissipation |
|
Airflow direction |
- |
|
PoE |
Not Supported |
|
Certification |
EMC certification |
|
Safety certification |
|
|
Manufacturing certification |

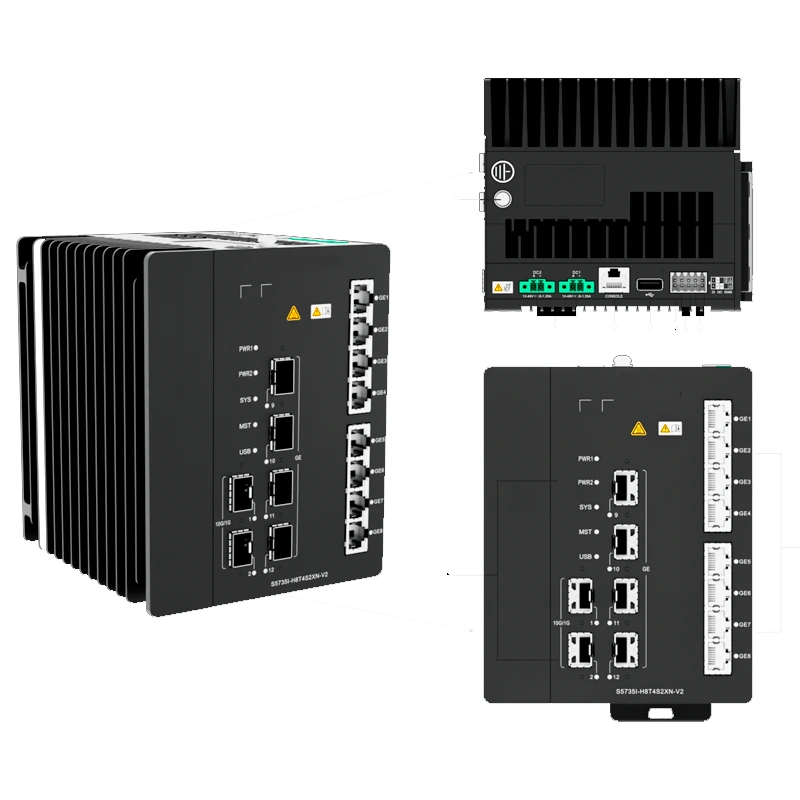

Product Display
Enhanced Efficiency and Versatility
Robust Networking Powerhouse
This Industrial Grade HW Network Switch with 8*10/100/1000Base-T and 4*GE SFP Ports offers industrial-grade reliability, multiple security controls, and a smart iStack stack for efficient network management. With DIN Rail Mounting, TSN support, and dual-redundant 9.6 to 60V DC power, this switch ensures seamless connectivity in demanding environments. Additionally, the fanless design and compact dimensions make it suitable for a variety of operating conditions, while its high MTBF and MTTR ensure long-term performance and easy maintenance.
