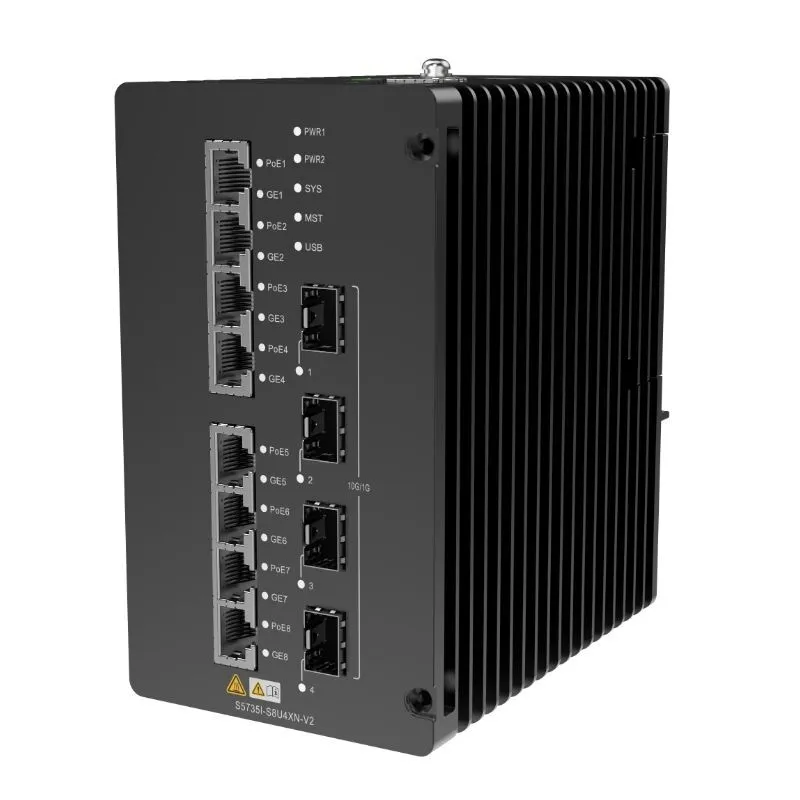

● Model No.: S5735I-S8U4XN-V2
● Port details: 8×10/100/1000BASE-T PoE++,4×10GE SFP+
● Application scenarios: Access in harsh environments such as industrial sites, security monitoring, outdoor/low-voltage electrical wells, power supply, and transportation.
● Feature: Supports PoE++ power supply, wide temperature range, dust and moisture resistant, and low power consumption.
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
Security Monitoring: Power supply and access for cameras, PTZ cameras, and NVRs in low-voltage electrical shafts/outdoor locations
Industrial Sites: Terminal access in harsh environments such as factories, power plants, transportation hubs, and mines
Park IoT: Access for outdoor APs, access control systems, facial recognition, and sensors
Education/Commercial: Small-capacity, high-density PoE access in low-voltage electrical rooms
Key selling points
1. Industrial-grade wide-temperature range and high reliability: Fanless operation from -40°C to +85°C, suitable for harsh environments such as outdoor areas, low-voltage wells, factories, and the field.
2. PoE++ 90W high-power supply: 90W per port, directly powering high-power devices such as PTZ cameras, APs, pan-tilt units, face recognition terminals, and industrial cameras without separate cabling.
3. 8 Gigabit PoE ports + 4 10 Gigabit optical ports, flexible uplink: 8 Gigabit PoE ports and 4 10 Gigabit SFP+ uplink ports, meeting the high bandwidth requirements of high-definition video and high-density APs.
4. Security/industrial scenario optimization: Supports PoE watchdog, loop detection, storm suppression, QoS, and ACL, suitable for security monitoring, campus IoT, and industrial terminal access.
5. Simplified operation and maintenance: Supports WEB visual management, cloud management, plug and play, and simple deployment.
Detailed description
| parameter item | Specification Description |
| Product Model | CloudEngine 25735I-S8U4XN-V2 (part code: 98012066) |
| Device Type | Industrial switch/rail mounted switch |
| Fixed port | 8 10/100/1000BASE-T PoE++Ethernet ports+4 10GE SFP+optical ports |
| control interface | 1 Console port, 1 USB 2.0 port, 1 RS-485 port, 1 DI port, 1 DO port |
| exchange capacity | 96 Gbps/520 Gbps (device switching capacity/machine switching capacity) |
| Packet forwarding rate | 72 Mpps to 102 Mpps (data from different sources may vary slightly) |
| MAC Address Table | 32K pieces |
| PoE power supply standard | Supports PoE++(802.3bt), with a maximum power of 90W per single port |
| PoE total budget | Up to 400W when using a 56V DC external power supply |
| Power Specifications | Dual redundant DC power input (54-57V) |
| cooling method | No fan, natural heat dissipation |
| Protection level | IP40 |
| Operating Temperature | -40°C ~ +75°C |
| Installation method | DIN rail installation |
