 1600 W DC Power Module

Version Mapping

Table 1 Switch chassis and software versions matching a 1600 W DC power module

Model	Power Module Name	S9300 Chassis	S9300E Chassis
LE0MPSD16	1600 W DC power module	S9303, S9306 and S9312 chassis: supported in V100R001C02 and later versions S9310 chassis: not supported	Not supported

Appearance

A 1600 W DC power module is 3 U in height.

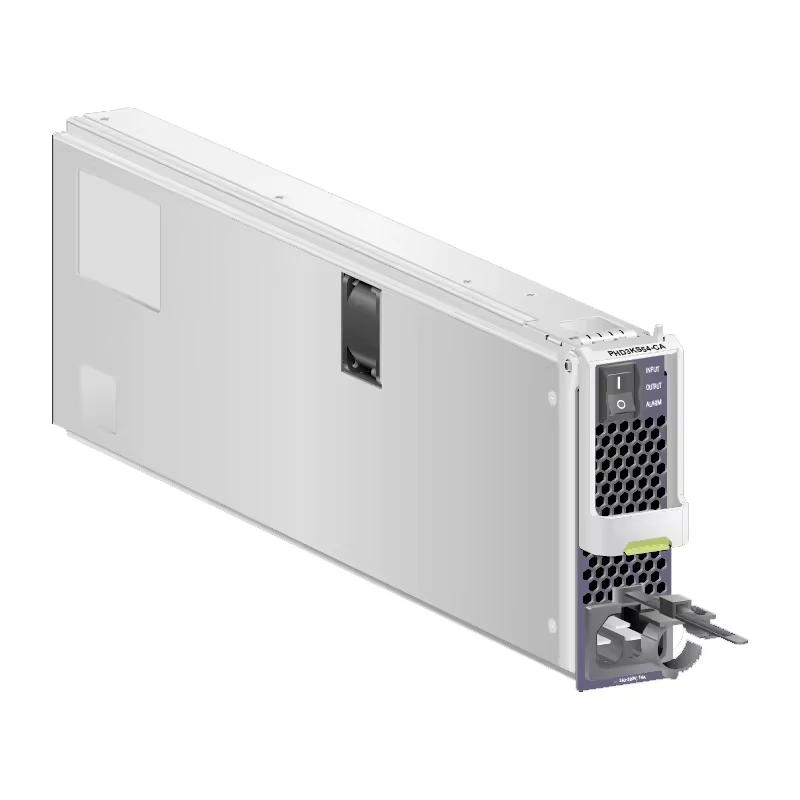

Figure 1 1600 W DC power module



Functions

A 1600 W DC power module provides a maximum of 1600 W power for the chassis and has the following functions:

1)EMC filtering, surge protection, and short circuit protection

2)Alarms about various power supply events, for example, no power input, air breaker status, ineffective surge protection, and input undervoltage

3)The power module is hot swappable.



Panel Description

Figure 2 Panel of a 1600 W DC power module

1. NEG terminal	2. Power switch NOTE: ON: The power module is supplying power. OFF: The power module is not supplying power.	3. ALARM indicator
4. OUTPUT indicator	5. INPUT indicator	6. Ejector lever NOTE: Raise the ejector lever to release the power module from the slot, and lower the ejector lever to lock the power module in the slot.
7. RTN terminal	—	—



Table 2 Indicators on a 1600 W DC power module panel

Indicator	Color	Description
INPUT	Green	Steady on: The input power is normal. Off: The power module receives no power input or its power cables are reversely connected.
OUTPUT	Green	Steady on: The output power of the power module is in the normal range. Off: The power module provides no output power.
ALARM	Red	Steady on: The protection circuit has failed. Off: The protection circuit is working properly.

Table 3 describes the relationship between cables and the terminals on a 1600 W DC power module.

Table 3 Relationship between cables and the terminals on a 1600 W DC power module

Input Terminal Identifier	Cable Type	Cable Color	Connected Terminal
RTN NOTE: RTN indicates return.	Power ground cable	Black	OT bare crimp terminal
NEG	Power cable	Blue

Specifications

Table 4 Technical specifications of a 1600 W DC power module

Item		Value
Dimensions (H x W x D)		130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight		< 2.5 kg
Input	Rated input voltage	-48 V DC/-60 V DC
	Input voltage range	-38.4 V DC to -72 V DC
	Maximum input current	40 A
Output	Rated output voltage	-48 V DC/-60 V DC
	Output voltage range	-38.4 V DC to -72 V DC
	Maximum output current	40 A
	Maximum output power	1600 W
Hot swapping		Supported
Part number		02316867
