ME0B0BKP1630 02352024 Me60-x16 Integrated Chassis Components (including 8 Dc Power) For H W 1

ME0B0BKP1630 02352024 Me60-x16 Integrated Chassis Components (including 8 Dc Power) For H W 2

ME0B0BKP1630 02352024 Me60-x16 Integrated Chassis Components (including 8 Dc Power) For H W

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

ME0B0BKP1630

Inquiry

Write a Review

Short-term operating temperature

-5°C to 55°C (23°F to 131°F)

Switching capacity

12.58Tbps(BSUF-240)

Number of service board slots

Number of slots

Dimensions without packaging (H x W x D)

1420 mm x 442 mm x 650 mm

Storage temperature

-40°C to 70°C (-40°F to 158°F)

Long-term operating temperature

0°C to 45°C (32°F to 113°F)

Chassis height

32 U

Part Number

02352024

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

ME60 Series

The ME60 series is a range of multiple-service control gateways — a type of Broadband Remote Access Server (BRAS) — developed to serve as a platform for unified user access and management, and most suitable for industries such as broadcasting, television, and education. Based on a 2T platform, the series boasts the industry’s largest-capacity routing line card (480G) plus a large-capacity NAT service line card (160G), enabling smooth evolution from IPv4 to IPv6.

Table 1 Basic information about the ME60-X16

Description	Part Number	Model	First Supported Version	Remarks
ME60-X16 Integrated Chassis Components (Including 8 DC Power)	02352024	ME0B0BKP1630	V800R008C10	-

Appearance

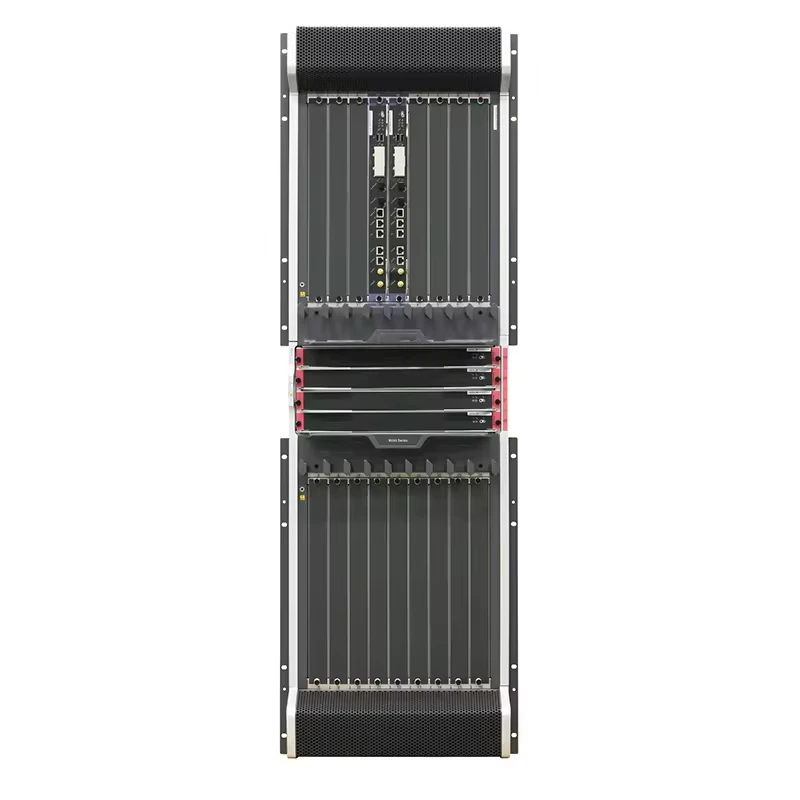

Figure 1 Appearance of the ME60-X16

ME0B0BKP1630 02352024 ME60-X16 Integrated Chassis Components (Including 8 DC Power) for h w

Table 2 Technical specifications of the ME0B0BKP1630

Item	Specification
Cabinet installation standards	Can be installed in a standard 19" 800 mm-deep cabinet. A H w 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)]	1420 mm x 442 mm x 650 mm (55.91 in. x 17.40 in. x 25.59 in.) (Chassis main body) 1420 mm x 442 mm x 770 mm (55.91 in. x 17.40 in. x 30.31 in.) (Dimensions of the chassis body together with cable trays and front and back attachments)
Chassis height [U]	32 U
Weight without packaging (base configuration) [kg(lb)]	94.4 kg (208.15 lb)
Weight without packaging (full configuration) [kg(lb)]	279 kg (615.2 lb)
Typical power consumption [W]	6210 W (fully configured with BSUF-240s)
Typical heat dissipation [BTU/hour]	20147.9 BTU/hour (fully configured with BSUF-240s)
MTBF [year]	21.66 year
MTTR [hour]	0.5 hour
Availability	0.999998327
Power supply mode	DC built-in
Maximum number of power chassis inputs	(1 channel/PEM)*8 PEM=8 channels
Rated input voltage [V]	–48 V/ –60 V
Input voltage range [V]	–38.4 V to –72 V
Maximum input current [A]	70 A/module (8 modules in total, 4+4 backup)
Maximum input cable diameter [mm²]	35 mm²/channel
Front-end circuit breaker/fuse [A]	70 A
Noise at normal temperature (acoustic power) [dB(A)]	NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Number of slots	22
Number of service board slots	16
Switching capacity	12.58Tbps(BSUF-240)
Redundant MPUs	1:1
Redundant Switch fabrics	3+1
Redundant power supply	4+4
Redundant fans	2 partitions 2 assemblies/partition, each partition in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	-5°C to 55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (86°F/hour)
Storage temperature [°C(°F)]	-40°C to 70°C (-40°F to 158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	Less than 5000 m (16404 ft.)
