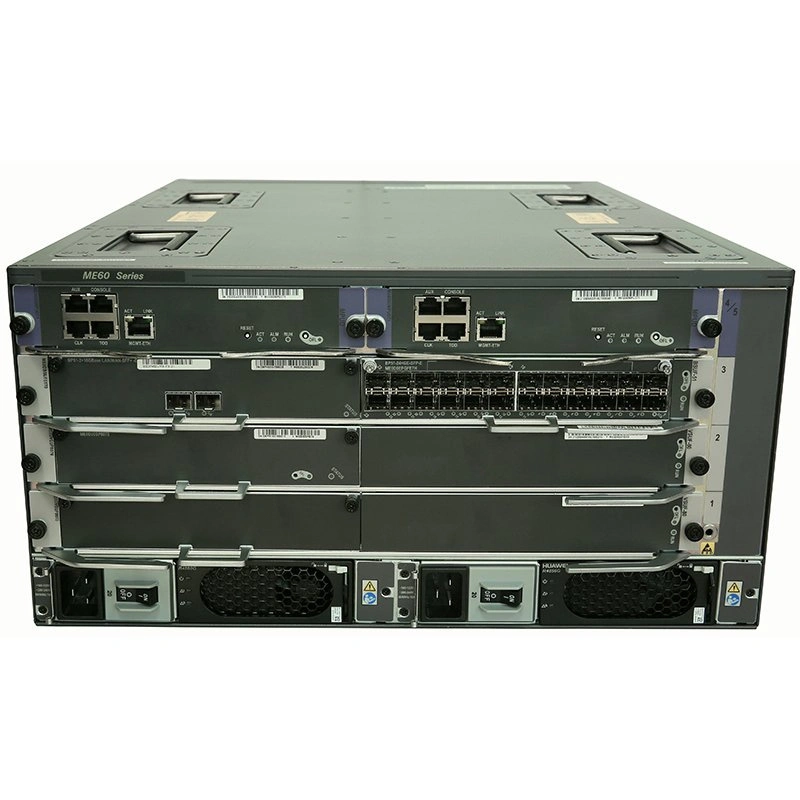

ME60-X3 100GE/10GE/GE/FE Multiple-Service Control Gateway
ME60-X3 is a compact 5U/4U multi service control gateway (BRAS) launched by Huawei, which provides high-performance user access, service control, and IPv4/IPv6 integration capabilities for urban area network edges, park cores, broadcasting/education, and other scenarios. It is the preferred device for small and medium-sized broadband operations and multi service support in parks.
The ME60-X3 is based on the Huawei 2T platform architecture and adopts a compact 5U (AC)/4U (DC) chassis design. It integrates 2 main control boards (SRUs) and 3 business line card slots (LPUs) and supports 10GE/100GE high-speed interfaces
product Information
● Model No.: ME60-X3
● switching capacity: Whole machine switching capacity: 20.94 Tbps; Packet forwarding rate: 360 Mpps
● Interface capability: Supports 100GE/10GE/GE/FE optical/electrical interfaces; Support traditional interfaces such as POS, ATM, E1, etc. (sub card expansion)
● Main features: Compact chassis design, integrated with 2 main control boards (SRUs) and 3 business line card slots (LPUs), supporting 10GE/100GE high-speed interfaces and powerful BRAS business processing
● Application scenarios: Small and medium-sized metropolitan area network edge, large campus network (campus/enterprise/broadcasting), telecom grade IP/MPLS network edge
● Warranty: 1 years
● MOQ: 1 pieces
Core selling points
Compact and high-density, saving data center space
5U/4U ultra compact design, 3 business slots+12 sub card slots, achieving flexible combination of 100GE high-speed ports and multiple business line cards in limited space, suitable for deployment in small and medium-sized data centers and edge nodes.
Powerful BRAS business processing capability
Native support for PPPoE/IPoE/802.1X full scene access, combined with RADIOUS/HWTACACS to achieve user authentication, authorization, and billing (AAA) integration, meeting the broadband operation needs of operators, broadcasting and television, and universities.
IPv6 Smooth Evolution, Towards the Future
Fully supports transition technologies such as IPv4/IPv6 dual stack, NAT64, DS Lite, etc., enabling IPv6 deployment without the need for network reconstruction and protecting existing investments.
High performance NAT and QoS guarantee
Support 160G high-capacity NAT line cards to meet the address translation needs of a large number of users; Level 5 H-QoS fine scheduling ensures SLA for voice, video, and data services.
High reliability and easy operation and maintenance
Main control/power supply 1+1 redundancy, hot swappable, NSR/NSF guarantee uninterrupted business; IBMC+FusionDirector enables centralized monitoring, automated deployment, and rapid fault location, reducing operational costs.
Multi service integration carrier
One device integrates BRAS, router, firewall VPN、 Traffic analysis capability, replacing multiple discrete devices, simplifying network architecture, and reducing TCO.
Parameters
| category | Detailed specifications |
| form | Rack mounted, 5U (AC: 442 × 650 × 220mm)/4U (DC: 442 × 650 × 175mm) |
| switching capacity | Whole machine exchange capacity: 20.94 Tbps; Packet forwarding rate: 360 Mpps |
| Slot configuration | Total slots: 5; Main control board (SRU): 2 pieces (1+1 redundant); Business Line Cards (LPUs): 3; Sub card slot: up to 12 slots |
| processor | Main control processor clock frequency: 800MHz |
| Memory/Storage | SDRAM：4GB； Flash：16MB； CF card: 2GB; NVRAM: 512KB |
| interface capability | Support 100GE/10GE/GE/FE optical/electrical interfaces; Support traditional interfaces such as POS, ATM, E1, etc. (sub card expansion) |
| BRAS business | Access protocols: PPPoE, IPoE, 802.1X, ND access; Authentication: PAP/CHAP/RADIOS/HWTACACS; Billing: RADIOS/HWTACACS; Support user speed limit, traffic control, and address pool management |
| Business Characteristics | Support NAT44/NAT64, DS Lite, MAP-T; Level 5 H-QoS scheduling; MPLS VPN、L2VPN、L3VPN； IPv4/IPv6 dual stack; BGP/OSPF/IS-IS and other routing protocols |
| reliability | Main control 1+1 redundancy; Power supply 1+1 redundancy; Hot swappable components; NSR/NSF/GR uninterrupted forwarding; FDM fault diagnosis |
| Power supply/power consumption | Power supply: 1+1 redundancy, AC/DC optional; Maximum power consumption: 6200W; Full weight: AC 52kg/DC 42kg |
| environment | Working temperature: 0~45 ℃; Altitude: ≤ 4000m |
