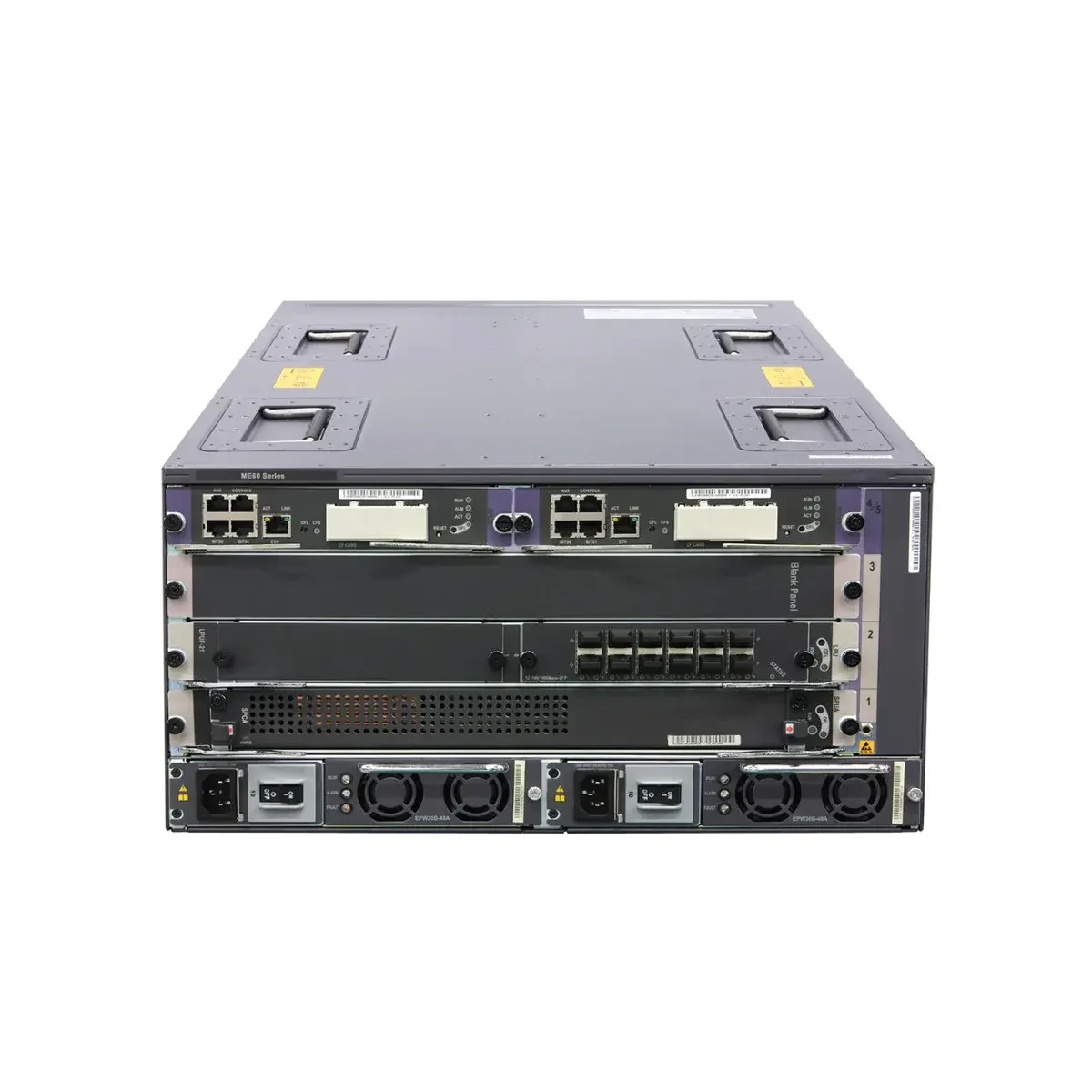

Me60-x3 Me60 Series (bras) Multiple-service Control Gateway
5.0
Samples:
$1000.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
/
Model Number:
ME60-X3
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Full Configuration Weight(AC)
52 kg (100G)
Full Configuration Weight(DC)
42 kg (100G)
Dimensions (H x W x D)(AC)
220 x 442 x 650 mm
Dimensions (H x W x D)(DC)
175 x 442 x 650 mm
Forwarding Performance
360 Mpps
Weight
356 kg
Switching capacity
1.08 Tbit/s
Number of slots
5 slots, including 3 LPUs and 2 MPUs
Certification
CCC
Maximum power consumption
920 W (BSUF-100)
Use
other
Place of Origin
Guangdong, China
Type
Gateway
Products Description
The ME60 series is a range of multiple-service control gateways — a type of Broadband Remote Access Server (BRAS) — serve as a platform for unified user access and management, and most suitable for industries such as broadcasting, television, and education. ased on a 2T platform, the series boasts the industry’s largest-capacity routing line card (480G) plus a large-capacity NAT service line card (160G), enabling smooth evolution from IPv4 to IPv6.
Details Images
Specification
|
Attribute
|
ME60-X16A
|
ME60-X8A
|
ME60-X16
|
ME60-X8
|
ME60-X3
|
|
Switching Capacity
|
50.32 Tbit/s
|
25.16 Tbit/s
|
12.58 Tbit/s
|
7.08 Tbit/s
|
1.08 Tbit/s
|
|
Forwarding Performance
|
11,520 Mpps
|
5,760 Mpps
|
5,760 Mpps
|
2,880 Mpps
|
360 Mpps
|
|
Number of Slots |
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
|
12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs
|
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
|
11 slots, including 8 LPUs, 2 SRUs, and 1 SFU
|
5 slots, including 3 LPUs and 2 SRUs
|
|
Dimensions (H x W x D) |
1,778 mm x 442 mm x 650 mm (40U)
|
934 mm x 442 mm x 650 mm (21U)
|
1,420 mm x 442 mm x 650 mm (32U)
|
620 mm x 442 mm x 650 mm (14U)
|
175 mm x 442 mm x 650 mm (DC 4U);
220 mm x 442 mm x 650 mm (AC 5U) |
|
Maximum Power Consumption
|
7,220W (BSUF-240)
9,040W (BSUF-480) |
4,110W (BSUF-240)
4,770W (BSUF-480) |
4,610W (BSUF-100)
6,210W (BSUF-240) |
2,340W (BSUF-100)
3,220W (BSUF-240) |
920W (BSUF-100)
|
|
Full Configuration Weight |
356 kg |
190 kg |
279 kg |
136 kg |
DC: 42 kg (100G)
AC: 52 kg (100G) |
