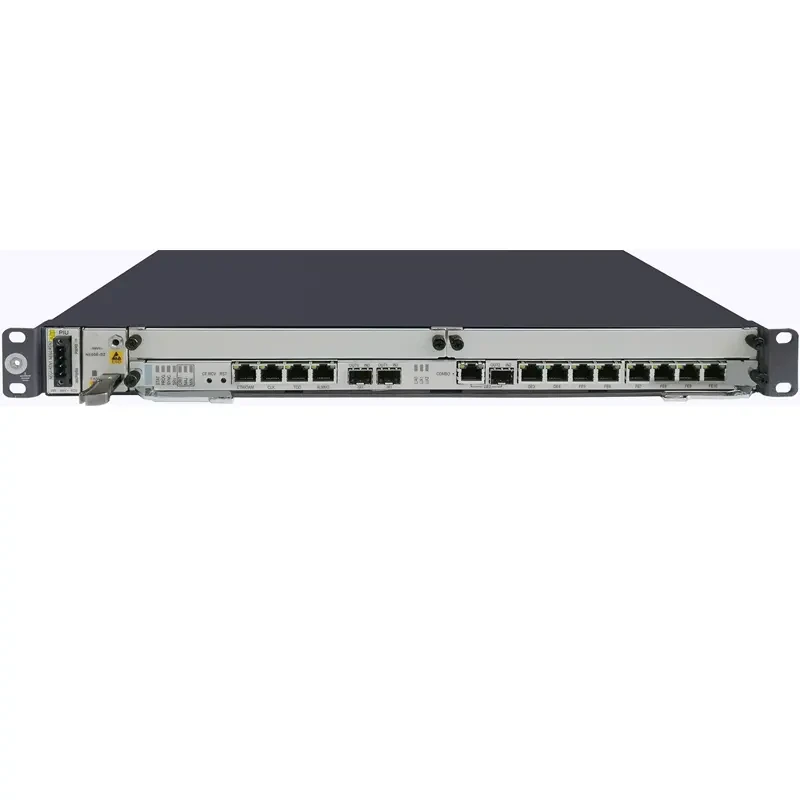

NE05E-S2 System Router with 2*GE/FE Ports 1

NE05E-S2 System Router with 2*GE/FE Ports 2

NE05E-S2 System Router with 2*GE/FE Ports 3

NE05E-S2 System Router with 2*GE/FE Ports 4

NE05E-S2 System Router with 2*GE/FE Ports 5

NE05E-S2 System Router with 2*GE/FE Ports 6

NE05E-S2 System Router with 2*GE/FE Ports

Imagine a sleek and powerful router, the NE05E-S2 System Router with 2*GE/FE Ports, standing tall with its dual ports ready to connect you to the vast world of the internet. Picture effortlessly streaming your favorite movies and games with blazing fast speeds, thanks to its cutting-edge technology. Say goodbye to lagging connections and hello to seamless browsing with this impressive router by your side.

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

NE05E-S2

Inquiry

Write a Review

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Router

Efficient Connectivity Simplified Solution

The NE05E-S2 System Router with 2*GE/FE Ports provides reliable and efficient network connectivity with its heat dissipation design and air intake/exhaust vents. Its compact size and weight make it easy to install in any cabinet while maintaining optimal ventilation. With a switching capacity of 12 Gbit/s and redundant power supply, this router ensures maximum performance and reliability for your network needs.

Product Specification

Item	Specification
Type	Enterprise Router
Cabinet installation standards	R01S100 Outdoor Cabinet, ETSI(21-inch), IEC(19-inch), IMB(3U)
Dimensions without packaging (H x W x D) [mm(in.)]	44.5 mm x 442 mm x 220 mm (1.75 in. x 17.4 in. x 8.66 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.2 kg (7.06 lb)
Weight without packaging (full configuration) [kg(lb)]	4.41 kg (9.72 lb)
Typical power consumption (with configuration) [W]	30.9 W
Typical heat dissipation(with configuration) [BTU/hour]	100.2 BTU/hour
MTBF [years]	40 years
MTTR [hours]	2 hours
Availability	0.99999
Power supply mode	DC
Rated input voltage [V]	-48 V/-60 V
Input voltage range [V]	-38.4 V to -72 V
Maximum input current [A]	4 A
Maximum input cable size [mm²]	4mm^2(10m)
Front-end circuit breaker/fuse [A]	≥ 5 A
Heat dissipation mode	Air cooling
Airflow direction	From left to right
Noise at normal temperature (acoustic power) [dB(A)]	55 dB(A)
Switching capacity	12 Gbit/s (Bidirectional). The maximum allowed error is 0.01%. To be specific, 99.99% of the line rate is guaranteed.
Redundant power supply	1+1
Redundant fans	If a single fan fails, the system can still work for a short period of time at an ambient temperature of 50°C (122°F).
Long-term operating temperature [°C(°F)]	-20°C to 60°C (-40°F to 140°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (54°F/hour)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158 °F)
Long-term operating relative humidity [RH]	5% to 95% RH, non-condensing
Storage relative humidity [RH]	5% to 100% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	< 5000 m (16404 ft.)
Use	Other
Place of Origin	Guangdong, China

Product Display

carousel-2

carousel-5

carousel-7

Efficient Connectivity with Versatility

NE05E-S2 System Router with 2*GE/FE Ports 12

Fast and Reliable Connectivity

The NE05E-S2 System Router with 2*GE/FE Ports provides high-performance networking for fast and reliable internet connectivity.

Seamless Multi-Device Connectivity

With 2 Gigabit Ethernet/Fast Ethernet ports, this router offers seamless connectivity for multiple devices.

Advanced Security Features

The router features advanced security protocols to ensure safe browsing and data protection for users.

High Performance

The NE05E-S2 System Router with 2*GE/FE Ports delivers a high-performance networking experience for users.

High-speed Connectivity Made Simple

The NE05E-S2 System Router with 2*GE/FE Ports is designed to provide high-speed connectivity with 2 optical and 2 electric Gigabit Ethernet/Fast Ethernet ports, along with 1 Combo port and 6 electric Fast Ethernet ports. With a compact 1U chassis and support for DC power supply, this router offers reliable performance with typical power consumption of 30.9W and switching capacity of 12 Gbit/s. Additionally, it features redundant power supply and fans for enhanced reliability in operation, making it an ideal solution for network connectivity in various environments.

Application Scenario

NE05E-S2 System Router with 2*GE/FE Ports 17

Small Business Network Expansion Description

The NE05E-S2 System Router with 2*GE/FE Ports is ideal for small businesses looking to expand their network with reliable and high-performance connectivity.

NE05E-S2 System Router with 2*GE/FE Ports 18

Remote Office Connection Description

Easily connect remote offices to the main network using the NE05E-S2 System Router with 2*GE/FE Ports for seamless communication and data sharing.

Branch Office Deployment Description

Deploy the NE05E-S2 System Router with 2*GE/FE Ports in branch offices to ensure secure and efficient connectivity with the main network.

Internet Service Provider Integration Description

Internet service providers can use the NE05E-S2 System Router with 2*GE/FE Ports to provide reliable and fast internet services to customers with multiple devices.

Material Introduction

The NE05E-S2 System Router with 2*GE/FE Ports is constructed of high-quality materials to ensure optimal performance and durability. The chassis is made from sturdy components that provide stability and protection for the internal electronics. The heat dissipation design allows for efficient cooling to maintain the router's performance even under heavy usage.

FAQ

What are the main features of the NE05E-S2 System Router with 2*GE/FE Ports?

The NE05E-S2 System Router features 2*GE/FE Ports, providing high-speed Ethernet connections for your network.

Can I use the NE05E-S2 System Router for small business networks?

Yes, the NE05E-S2 System Router is suitable for small business networks that require reliable and fast Ethernet connectivity.

How easy is it to set up the NE05E-S2 System Router with 2*GE/FE Ports?

The NE05E-S2 System Router is easy to install and configure, with a user-friendly interface for setup.

What are some common application scenarios for the NE05E-S2 System Router?

The NE05E-S2 System Router is commonly used in branch office networks, retail environments, and small office/home office setups.

Can the NE05E-S2 System Router support multiple VLANs?

Yes, the NE05E-S2 System Router supports VLANs, allowing for segmentation of network traffic for security and performance purposes.

Does the NE05E-S2 System Router come with built-in security features?

Yes, the NE05E-S2 System Router includes built-in security features such as firewall protection and encryption to help secure your network.
