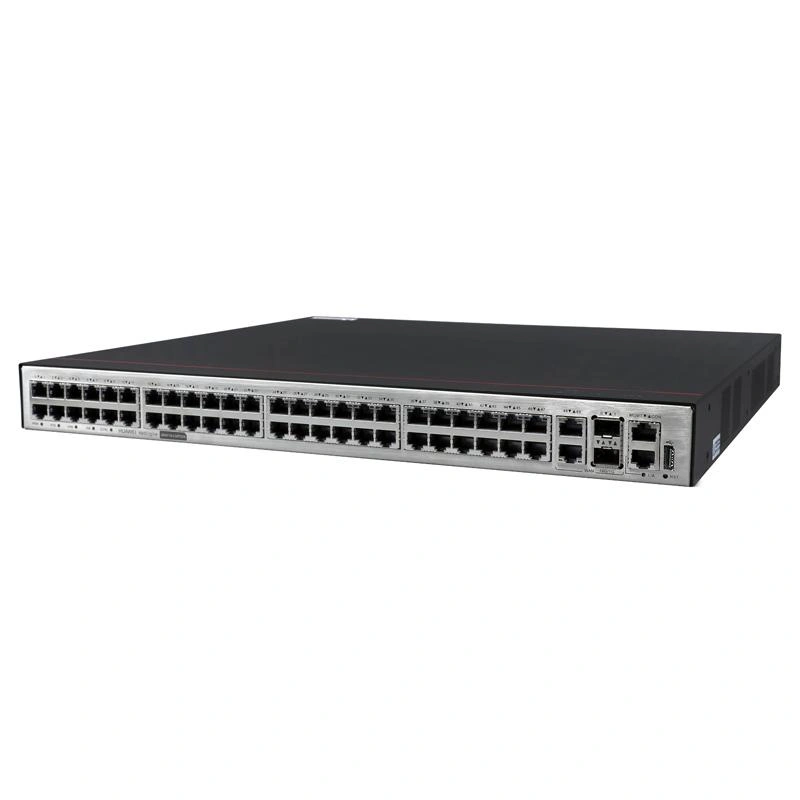

Netengine AR6710-L26T2X4-T AR6710-L50T2X4-T Enterprise Access Router with GE RJ45 10GE(SFP+) port
The industry's first enterprise-class Access Routers (ARs) designed for a Software-Defined Wide-Area Network (SD-WAN) solution, the NetEngine AR6700 series uses a multi-core processor and non-blocking switching architecture, providing a forwarding performance that's three times the industry average. Well suited to coping with uplink traffic surges and promoting diversified service development, the NetEngine AR6700 series is widely deployed at the egress of medium and small-sized campus networks and at the headquarters of enterprises.
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 550 mm x 650 mm (7.28 in. x 21.65 in. x 25.59 in.) |
| Weight with packaging [kg(lb)] | 8.95 kg (19.73 lb) |
| Weight without packaging [kg(lb)] | 5.75 kg (12.68 lb) |
| CPU | Quad-core, 1.4 GHz |
| Memory | 4 GB |
| NAND Flash | 2 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 48 x GE electrical |
| WAN ports | 2 x 10GE SFP+, 2 x GE electrical |
| Number of service board slots | 4 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 4/4 |
| WSIC slots (default/maximum) | 0/2 |
| XSIC slots (default/maximum) | 0/1 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 46.08 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999950457 |
| Typical power consumption [W] | 83 W |
| Maximum power consumption [W] | 115 W |
| Power supply mode |
|
| Number of power modules | 2 |
| Rated input voltage [V] |
Rated AC input voltage: 100 V to 240 V, 50 Hz or 60 Hz Rated DC input voltage: –48 V DC to –60 V DC |
| Input voltage range [V] |
Maximum AC input voltage: 90 V to 264 V, 47 Hz to 63 Hz Maximum DC input voltage: –38.4 V DC to –72 V DC |
| Maximum input current [A] |
AC: 3 A DC: 2.5 A |
| Maximum output power [W] |
AC: 350 W DC: 240 W |
| Redundant power supply | Dual power supplies in 1:1 backup mode |
| Types of fans | Built-in |
| Number of fan modules | 5 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 57.2 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
