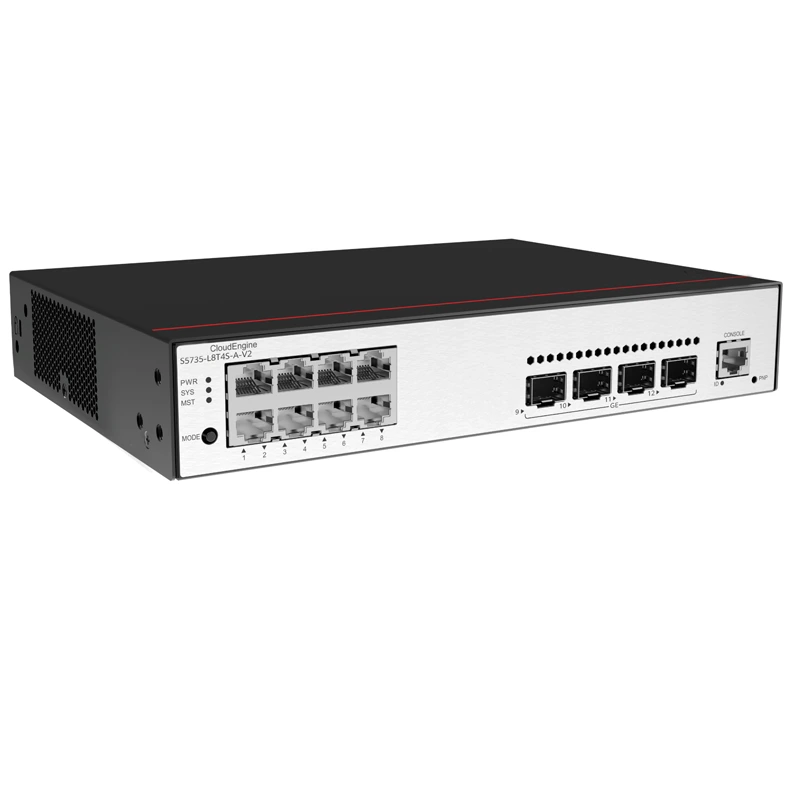

Enterprise Switch S5735-L8T4S-A-V2 with 8*10/100/1000BASE-T Ports 4*GE SFP Ports AC Power
● Model No.: S5735-L8T4S-A-V2
● Switching capacity: 520 Gbps/5.2 Tbps (dual stack)
● Fixed interfaces: 88*10/100/1000BASE-T ports, 4*GE SFP ports, AC power
● Core strengths:Compact body, reasonable port ratio, low power consumption, intelligent operation and maintenance, and three-layer flexible networking.
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
1.Basic Gigabit to Desktop Access: This is its core application scenario. It can serve as an edge device for the network, providing stable gigabit to desktop access for desktop computers, laptops, printers, regular IP phones, and other devices in small offices, clinics, classrooms, and other places. 8 Gigabit Ethernet ports meet the needs of small-scale networking, while 4 Gigabit SFP optical ports are used to connect to the upper layer network
2.The network core of small branch offices: For environments such as chain stores and small branch offices that lack professional network equipment, it can be used as a core switch. Supports various three-layer routing protocols such as static routing, RIP, OSPF, etc., enabling network interoperability between different departments and providing an exit to the headquarters network.
3.Network expansion and fiber optic access: When it is necessary to extend the network to another building or area that is far away, its four gigabit SFP optical ports can be connected to fiber optic cables to achieve long-distance transmission. For example, as a fiber optic convergence node for monitoring systems, it receives network signals from distant cameras
4.PoE powered environment without requirements: If your terminal devices (such as desktops and servers) all use local power and do not require power supply through Ethernet cables, this switch is a cost-effective choice. Compared to PoE models, it saves unnecessary power supply costs
Core selling points
1. Flexible networking and expansion
IStack intelligent stacking: supports multiple devices to be virtualized as a single logical device, unified management, and supports up to 9 stacking devices.
Three layer routing: supports static routing, RIP/RIPng, OSPF/OSPFv3, etc., to meet the three-layer forwarding requirements of small networks.
Reliability: Supports STP/RSTP/MSTP, ERPS (G.8032), VRRP/VRRP6, ensuring link and gateway redundancy.
2. Security and Access Control
User authentication: Supports 802.1X, MAC authentication, Portal authentication, and hybrid authentication, in conjunction with Radius and HWTACACS.
VLAN features: Supports 4K VLAN, Voice VLAN, MUX VLAN, VLAN Mapping/Stacking, GVRP/LNP.
Security Protection: Supports DoS attack defense, ARP spoofing defense, DHCP Snooping, IP Source Guard, BPDU protection.
3. Intelligent operation and management
Management mode: Supports Web, CLI (Telnet/SSH), SNMP v1/v2 c/v3, RMON, NETCONF.
Cloud management: compatible with Huawei iMaster NCE Campus cloud management platform, achieving zero configuration deployment and remote operation and maintenance.
Parameters
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.09 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.41 kg (3.11 lb) |
| Weight with packaging [kg(lb)] | 2.22 kg (4.89 lb) |
| Typical power consumption [W] | 15.95 W |
| Typical heat dissipation [BTU/hour] | 54.42 BTU/hour |
| Maximum power consumption [W] | 21.52 W |
| Maximum heat dissipation [BTU/hour] | 73.43 BTU/hour |
| Static power consumption [W] | 10.52 W |
| MTBF [years] | 75.32 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 44.5 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 32.5 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification Safety certification Manufacturing certification |
