We provide customers with various communication products at reasonable prices and high quality products and services

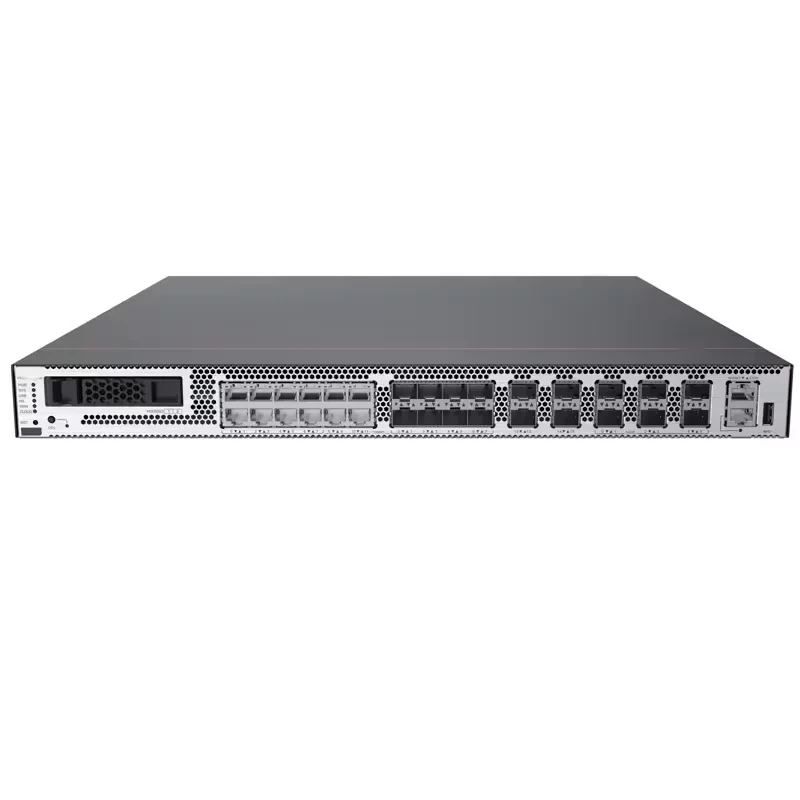

Antiddos1905 AntiDDoS1908 Network Security Hisecengine Ddos Defense System 1

Antiddos1905 AntiDDoS1908 Network Security Hisecengine Ddos Defense System 2

Antiddos1905 AntiDDoS1908 Network Security Hisecengine Ddos Defense System 3

Antiddos1905 AntiDDoS1908 Network Security Hisecengine Ddos Defense System 4

Antiddos1905 AntiDDoS1908 Network Security Hisecengine Ddos Defense System 5

Antiddos1905 AntiDDoS1908 Network Security Hisecengine Ddos Defense System

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

AntiDDoS1905

Inquiry

Write a Review

Products Description

The HW AntiDDoS1000 DDoS protection system utilizes Big Data analytics technology and supports modeling for 60+ types of network traffic to offer second-level attack response and comprehensive defense against 100+ types of attacks. The AntiDDoS1000 can be deployed on a user network using in-line mode to defend against volumetric and application attacks in real time.

When attack traffic exceeds the bandwidth or defense capability of a local scrubbing device, the AntiDDoS1000 associates with the AntiDDoS device of the upstream carrier or ISP to defend against flood attacks and guarantee service continuity.

Details Images

Antiddos1905 AntiDDoS1908 Network Security Hisecengine Ddos Defense System 6

Antiddos1905 AntiDDoS1908 Network Security Hisecengine Ddos Defense System 7

Specification

Item	Specification
Installation Type	Rack
Cabinet installation standard	Cabinet with a depth of 600 mm or above
Dimensions without packaging (H x W x D) [mm(in.)]	Typical dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442 mm x 470 mm (1.72 in. x 17.4 in. x 18.5 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 550 mm x 650 mm (7.28 in. x 21.65 in. x 25.59 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	9.3 kg (20.5 lb)
Weight without packaging [kg(lb)]	6.3 kg (13.89 lb)
CPU	1 CPU, 16 Cores/CPU, up to 2.0 GHz
Memory	16 GB DDR4, supporting ECC
NOR Flash	64 MB
NAND Flash	4 GB
Hard disk	Reserved function
Console port	RJ45
Eth Management port	RJ45
Typical power consumption [W]	102.2 W
Typical heat dissipation [BTU/hour]	348.7 BTU/hour
Maximum power consumption [W]	162.4 W
Maximum heat dissipation [BTU/hour]	554.1 BTU/hour
MTBF [years]	46.48 years
MTTR [hours]	1 hours
Availability	0.999998
Power supply mode	AC pluggable
Number of power modules	1
Redundant power supply	Dual power modules can be purchased to form 1+1 redundancy backup.
Rated input voltage [V]	AC power input: 100 V to 240 V, 50 Hz/60 Hz High-voltage DC power input: 240V, DC
Input voltage range [V]	AC: 90 V to 290 V, 45 Hz to 65 Hz High-voltage DC: 190–290 V, DC
Maximum input current [A]	8 A/power module
Rated output power [W]	600W/12V
Maximum output power [W]	600 W/power module
Types of fans	Pluggable
Number of fan modules	4
Automatic fan speed adjustment	Supported
Heat dissipation mode	The fan module locates at the air exhaust of the system.
Airflow direction	Front-to-back airflow
Redundant fans	3+1
PoE	Not supported
Noise at normal temperature (acoustic power) [db(A)]	≤72dB(A)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Storage environment	ETSI EN 300 019-1-1 Class 1.2 NOTE: The product has a valid storage period of one year. The valid storage period refers to the period during which the product maintains the required quality when stored with packing materials in an environment that meets the preceding requirements.
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	0 m to 5000 m (0 ft to 16404 ft)
Storage altitude [m(ft.)]	0 m to 5000 m (0 ft to 16404 ft)
