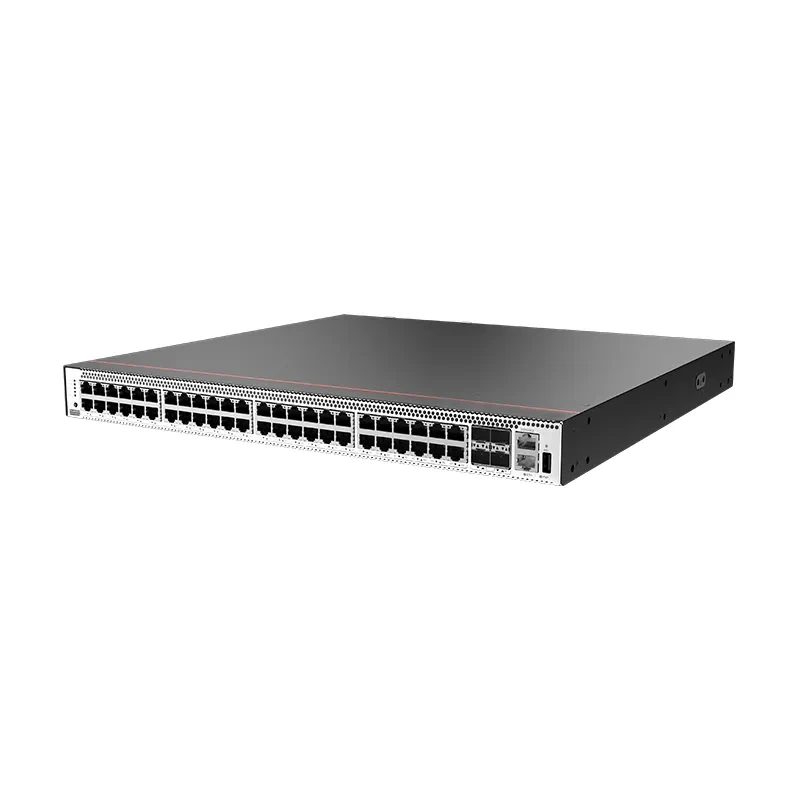

Network Switch S5731-S48P4X Desktop Ethernet Poe Switch with 48 port
Huawei S5731-S48P4X is an enterprise level three-layer Ethernet switch designed specifically for campus and office networks of small and medium-sized enterprises, suitable for deployment at the access layer or aggregation layer.
This switch adopts a 1U rack mounted design, with dimensions of 442 × 420 × 43.6mm, providing 48 Gigabit electrical ports and 4 10G SFP+optical ports, supporting PoE+power supply (maximum 30W per port), and can supply power to wireless APs, IP phones, and other devices.
Trade Information
● Model No.: S5731-S48P4X
● Chair size: Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
● Material: metal plastic
● Place of Origin: Guangdong, China
● Place of use: LACP, QoS, SNMP, Stackable, VLAN Support
● Warranty: 1years
● MOQ: 1 pieces
The key specifications include
Detailed description
|
Item |
Description |
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 54.96 years |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 8.8 kg (19.40 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) |
|
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 108 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) Note: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 02353AJH 02353AJH-001 02353AJH-003 |
