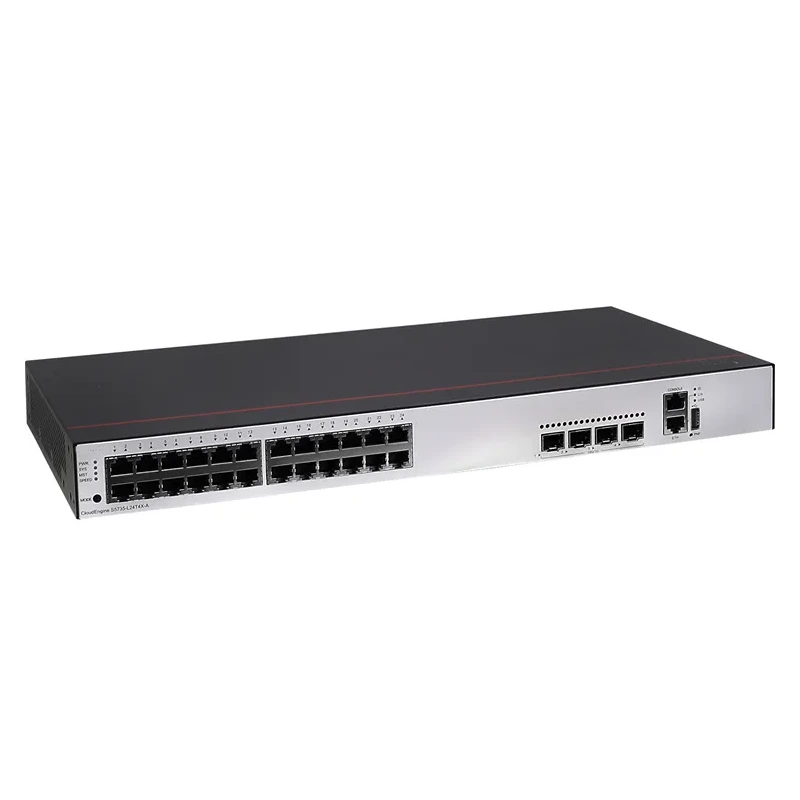

Network Switch S5735-L24P4X-A Desktop Enterprise Switch with 4*10GE SFP+ ports 1

Network Switch S5735-L24P4X-A Desktop Enterprise Switch with 4*10GE SFP+ ports 2

Network Switch S5735-L24P4X-A Desktop Enterprise Switch with 4*10GE SFP+ ports 3

Network Switch S5735-L24P4X-A Desktop Enterprise Switch with 4*10GE SFP+ ports 4

Network Switch S5735-L24P4X-A Desktop Enterprise Switch with 4*10GE SFP+ ports

Name: Network Switch S5735-L24P4X-A Desktop Enterprise Switch with 4*10GE SFP+ ports
Uploaded: 2026-01-27T16:32:53+08:00
Description: S5735-L24P4X-A 98010927 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power Nwtwork Switch

S5735-L24P4X-A 98010927 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power Nwtwork Switch

The S5735-L24P4X-A is a 24 port Gigabit PoE+electrical port+4-port 10G SFP+optical port access switch from the Huawei CloudEngine 25735-L series, which combines PoE power supply with high-speed uplink and is suitable for high-density Gigabit access scenarios that require PoE power supply

Inquiry

Write a Review

Trade Information

● Model No.: S5735-L24P4X-A

● Chair size:43.6*220*420mm

● Material: metal plastic

● Place of Origin: Guangdong, China

● Place of use: LACP, QoS, SNMP, Stackable, VLAN Support

● PoE: Supported

● Warranty: 1years

● MOQ: 1 pieces

S6730-H24X4Y4C-02353NRD-24-10GE-SFP-ports-4-25GE-S (3)

Introduction

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

Product Introduction

Huawei S5735S-L24P4X-A is a gigabit Ethernet switch core chip launched by Huawei, belonging to the category of electronic chips, mainly used in the construction of enterprise level network communication infrastructure. This chip supports backplane bandwidth from 336Gbps to 3.36Tbps and packet forwarding rates from 108Mpps to 126Mpps, making it suitable for medium to high-density data exchange scenarios and undertaking high-speed data processing and forwarding functions

The switch device driven by it is equipped with 24 10/100/1000Base-T ports and 4 10G SFP+ports, supporting PoE+power supply, three-layer network architecture, and intelligent stacking technology. The power system is compatible with AC 100-240V wide voltage input, meeting the stability requirements of enterprise level network equipment

Detailed description

Chassis material	Metal
Height[mm]	43.6 mm
Depth[mm]	220.0 mm
Wide[mm]	442.0 mm
Chassis height[U]	1
Weight with packaging[kg(lb)]	4.31 kg (9.5 lb)
Maximum power consumption[W]	- Not providing the PoE function: 56 W
Maximum power consumption[W]	- 100% PoE loads: 458 W (PoE: 380 W)
Typical power consumption[W]	43
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Maximum heat dissipation[BTU/hour]	- Not providing the PoE function: 191.1
Maximum heat dissipation[BTU/hour]	- 100% PoE loads: 1563
Typical heat dissipation[BTU/hour]	146.72
Power supply mode	AC built-in
Input voltage range[V]	- AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Input voltage range[V]	- High-Voltage DC input: 190 V DC to 290 V DC
Rated input voltage[V]	- AC input: 100 V AC to 240 V AC, 50/60 Hz
Rated input voltage[V]	- High-Voltage DC input: 240 V DC
Maximum input current[A]	6 A
Number of power slots	0
Number of card slots	0
Memory	1 GB
Flash memory	512 MB in total. To view the available flash memory size, run the display version command.
Redundant power supply	Not supported
Types of fans	Built-in
Noise at normal temperature (acoustic power)[dB(A)]	57.7
Noise at normal temperature (acoustic pressure)[dB(A)]	43
Airflow direction	Air intake from left and front, air exhaustion from right
Storage temperature[°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Short-term operating temperature[°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Long-term operating temperature[°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate[°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
	- The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year.
	- The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year.
	- The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year.
	The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded.
	The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude[m(ft.)]	0-5000 m (0-16404 ft.)
MTBF[year]	57.07
MTTR[hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	28
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	4
Maximum number of GE ports	28
Maximum number of FE ports	24
10GE optical interface	4
1000M electrical interface	24
USB	Supported
Console port	RJ45
Eth Management port	RJ45
Service port surge protection[kV]	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
RPS input	Not supported
PoE	Supported
PoE power supply	Supported
