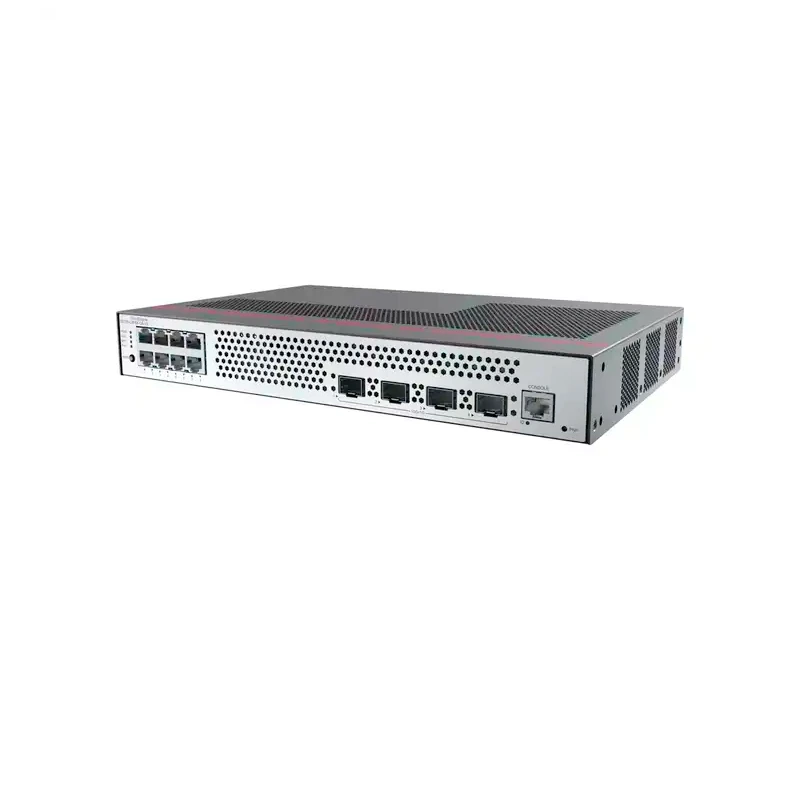

Network Switch S5735-L8P4X-QA-V2 With 4*10GE SFP+ Ports, PoE+
● Model No.: S5735-L8P4X-QA-V2
● Switching capacity: 672 Gbps/6.72 Tbps (dual stack)
● Fixed interfaces:8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power, Fanless
● Core strengths:8-port PoE+, 4 × 10GE SFP+10 Gigabit uplink, fanless mute, three-layer routing, iStack stacking, green energy-saving.
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
1.High speed aggregation and small network core: With four 10 Gigabit uplink optical ports, it can seamlessly aggregate data from multiple devices below, making it ideal as a network core switch for small offices, clinics, or branch offices. It supports three-layer routing protocols such as OSPF and can flexibly connect networks from different departments of the company
2.High bandwidth PoE access: 8 Gigabit Ethernet ports all support PoE+power supply, providing data connection and power for high-power devices such as Wi Fi 6/7 high-speed wireless APs, high-definition video conferencing terminals, PTZ (pan tilt zoom) cameras, etc. Its total PoE power is 125W, which is sufficient to ensure full power operation of 8 ports using PoE (802.3af) standard or 4 ports using PoE+(802.3at) standard
3.Places with requirements for quietness and environment: adopting fanless quietness design, relying entirely on natural heat dissipation, zero noise during operation, very suitable for open offices, conference rooms, reading rooms, clinics and other places that require absolute quietness
4.High cost-effective 10G interconnect: This switch can also provide a very economical solution for 10G access to monitoring storage servers, high-performance workstations, or application servers
Core selling points
1. 10Gbps uplink: 4 × SFP+provides 10Gbps uplink, eliminating bandwidth bottlenecks and supporting 10Gbps fiber/high-speed copper cables
2. iStack intelligent stacking: up to 9 virtual devices can be stacked together, with 10 Gigabit ports available as stacking links for unified management and expansion
3. Layer 3 routing: supports static RIP、OSPF、BGP、VRRP， Meet the three-layer forwarding needs of small and medium-sized networks
4. Reliability: STP/RSTP/MSTP, ERPS, SmartLink, VRRP, millisecond level link protection
5. User authentication: 802.1X, MAC, Portal authentication, in conjunction with RADIOUS/HWTACACS
6. VLAN features: 4K VLAN, Voice VLAN, MUX VLAN, VLAN Mapping
7. Security Protection: DHCP Snooping, IP Source Guard, ARP Defense, DoS Attack Protection
Parameters
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.24 kg (4.94 lb) |
| Weight with packaging [kg(lb)] | 3.06 kg (6.75 lb) |
| Typical power consumption [W] | 21.16 W |
| Typical heat dissipation [BTU/hour] | 72.2 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 15.24 W |
| MTBF [years] | 70.41 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Supported |
| Certification | EMC certification Safety certification Manufacturing certification |
