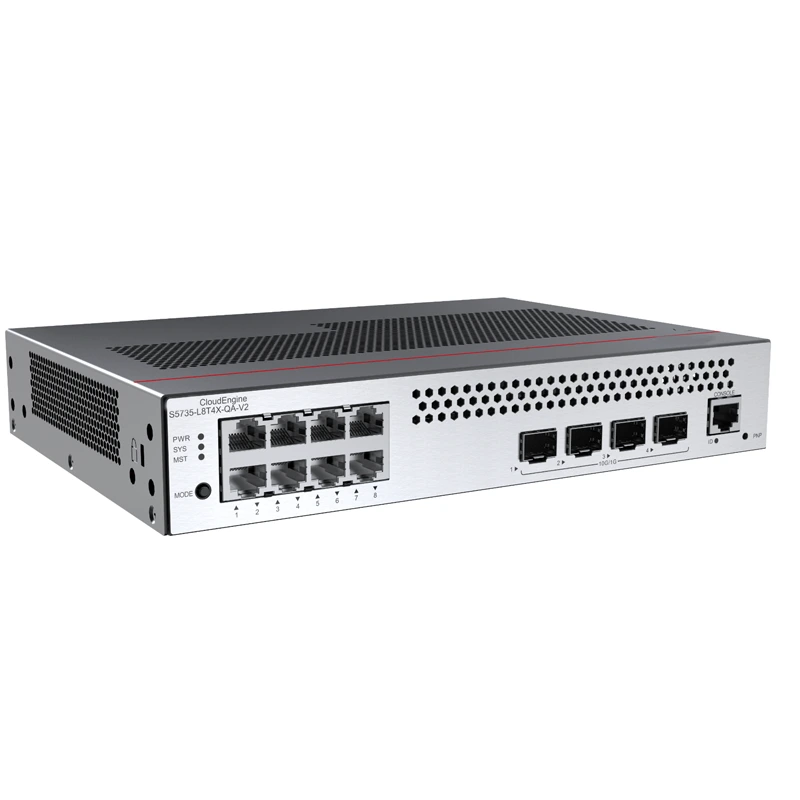

Optical Fiber Switch S5735-L8T4X-QA-V2 With 8*10/100/1000BASE-T Ports, 4*10GE SFP+ Ports
● Model No.: S5735-L8T4X-QA-V2
● Switching capacity: 672 Gbps/6.72 Tbps (dual stack)
● Fixed interfaces:8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, Fanless
● Core strengths:8-power 40000 Mbps port, high-performance forwarding, flexible stacking, three-layer routing, intelligent operation and maintenance, green energy saving.
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
1.High bandwidth access to enterprise park networks: This is its core application scenario. It can serve as an edge device for the network, providing stable gigabit to desktop access for office desktop computers, printers, regular IP phones, and more. Its four 10 Gigabit uplink optical ports can provide high bandwidth to ensure that when a large number of users access the server or the Internet at the same time, there will be no bottleneck in the access layer.
2.Core switch for small networks: For networks in small offices, branch offices, or clinics, it is fully capable of fulfilling the role of a core switch. It supports various three-layer routing protocols such as OSPF, which can flexibly connect different departmental networks within the company, and with its 10 Gigabit uplink capability, provides non blocking data exchange for the entire small network
3.Places with strict requirements for quietness: The whole machine adopts a fanless design, relying entirely on natural heat dissipation, and operates with zero noise. This feature makes it an ideal choice for open offices, conference rooms, reading rooms, consultation rooms, and other spaces that require an absolutely quiet environment.
4..High cost-effective server/storage access: For application servers, mail servers, or monitoring storage servers that do not require PoE power supply, this switch can serve as a cost-effective 10 Gigabit access device. The server can be directly connected to the 10G optical port of the switch to obtain high-speed network connectivity.
Core selling points
1. 10Gbps uplink: 4 SFP+ports provide 10Gbps uplink bandwidth, completely eliminating uplink bottlenecks and supporting 10Gbps fiber or high-speed copper cable connections.
2. iStack Intelligent Stacking: Supports up to 9 devices to be virtualized as a single logical device for unified management, with 10 Gigabit ports available for stacking, greatly expanding the number of ports and bandwidth.
3. Layer 3 routing: Supports static routing, RIP/RIPng, OSPF/OSPFv3, BGP and other rich routing protocols to meet the three-layer forwarding and core requirements of small and medium-sized networks.
4. High reliability: Supports STP/RSTP/MSTP, ERPS (G.8032), SmartLink, VRRP/VRRP6, providing millisecond level link and gateway redundancy protection.
Parameters
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.1 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.40 kg (3.09 lb) |
| Weight with packaging [kg(lb)] | 2.21 kg (4.87 lb) |
| Typical power consumption [W] | 16.2 W |
| Typical heat dissipation [BTU/hour] | 55.28 BTU/hour |
| Maximum power consumption [W] | 16.97 W |
| Maximum heat dissipation [BTU/hour] | 57.9 BTU/hour |
| Static power consumption [W] | 10.05 W |
| MTBF [years] | 76.15 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
