Optixstar E810 Industrial-grade Osu Cpe For Terminal Access Device
5.0
Samples:
$500.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
OptiXstar E810
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
5 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Router
Products Description

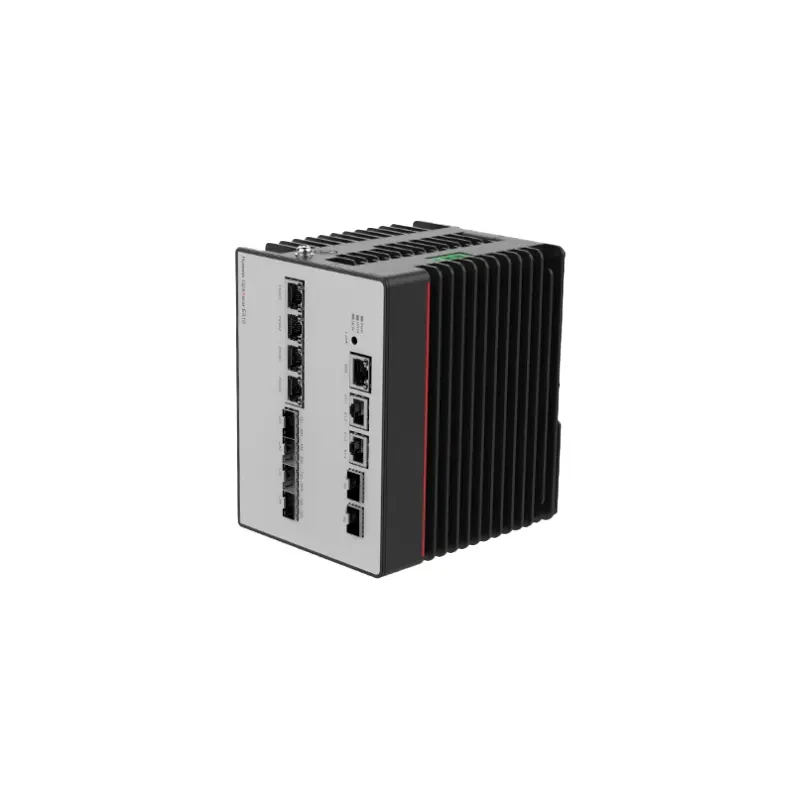

OptiXstar E810 is the industry's first industrial-grade OSU CPE and is used as a terminal access device in Intelligen OptiX Network solution. It can be used for industrial control and collection, and surveillance service backhaul at remote sites such as oil and gas BVS and new energy stations. The NHP-based transmission technology ensures secure and reliable service transmission and supports OSU evolution. The ultra-low power consumption and industrial-grade design enable the device to be deployed in extremely harsh environments.
Details Images
Specification
|
Parameters
|
OptiXstar E810
|
|
Dimensions (H x W x D)
|
150mm x 155mm ×133mm
|
|
Weight (excluding adapters)
|
About 5 kg
|
|
Operating temperature
|
–40°C to +65℃, natural heat dissipation
|
|
Rated voltage and current
|
12 V DC to 60 V DC, 1+1 power protection
|
|
Maximum power consumption
|
40W
|
|
Client-side capability
|
4 x E1 + 4 x GE/FE (E) + 4 x GE/FE (O)
|
|
Line-side capability
|
2 x STM-16/STM-4/STM-1, OSU OTN (Reserved)
|
|
Service model
|
EoS private line, EoOSU private line (Reserved)
|
|
Protection type
|
• OTN：ODUk SNCP
|
|
|
• TDM: SNCP and 1+1 linear MSP
|
|
|
• EOS：LCAS
|
|
Installation mode
|
Guide rail mounting
|
