Optixstar T823e-dl Industrial Onu Of Industrial Onu
5.0
Samples:
$1000.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
OptiXstar T823E-DL
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
2 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Router
Products Description

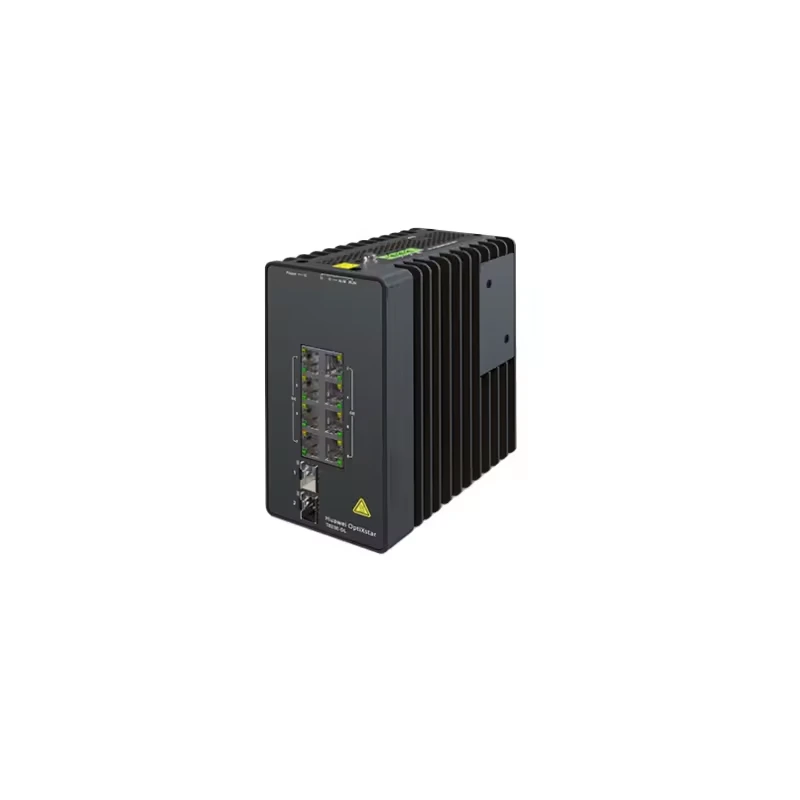

The OptiXstar T823E-DL is industrial ONU in industrial optical network solution. The network side provides two
GPON/XGS-PON upstream ports, and the user side provides eight GE Ethernet ports. With high-performance forwarding capabilities, the device provides ideal industrial production network solutions for various industrial scenarios, such as
transportation，electric power and intelligent manufacturing.
GPON/XGS-PON upstream ports, and the user side provides eight GE Ethernet ports. With high-performance forwarding capabilities, the device provides ideal industrial production network solutions for various industrial scenarios, such as
transportation，electric power and intelligent manufacturing.
Details Images
Specification
|
Specifications
|
HW OptiXstar T823E-DL
|
|
Dimensions (W*D*H)
|
75mm * 133mm * 150mm
|
|
Weight
|
About 1.2 kg
|
|
Operating temperature
|
-40°C ~ +70°C
|
|
Operating humidity
|
5%RH ~ 95%RH (non-condensing)
|
|
System power supply
|
100V ~ 240V AC
|
|
Installation mode
|
Din-rail mount
|
|
NNI
|
2*XGS-PON/GPON（SFP）
|
|
UNI
|
8*GE
|
|
Maximum power consumption
|
11.08W
|
|
PON Port
|
• Port type: SC/UPC
|
|
|
• Maximum transmission distance: 20 km
|
|
|
• XGS-PON
|
|
|
SFP+, complying with ITU-T G.9807.1, class N1/N2
|
|
|
Transmission rate: RX: 9.953 Gbit/s, TX: 9.953 Gbit/s
|
|
|
Optical receiver sensitivity: –28 dBm
|
|
|
Overload optical power: –8 dBm
|
|
|
• GPON
|
|
|
SFP, complying with ITU-T G.984, class B+
|
|
|
Transmission rate: RX: 2.488 Gbit/s, TX: 1.244 Gbit/s
|
|
|
Optical receiver sensitivity: –27 dBm
|
|
|
Overload optical power: –8 dBm
|
|
GE Electrical Port
|
• Port type: RJ-45
|
|
|
• Auto ports speed(10/100/1000 Mbit/s)
|
|
Network Protection
|
• Type B Protection
|
|
|
• Type C Protection
|
|
|
• Ring network detection
|
|
Security
|
• Filtering based on MAC/IP/URL
|
|
|
• DoS/ARP anti-attacks
|
|
|
• Web session number restriction
|
|
|
• Device access control
|
|
|
• 802.1x authentication modes: EAP-MD5, TLS, TTLS, and PEAP
|
|
|
• Static MAC address binding
|
|
|
• IPv6/IPv4 firewall
|
