Optixstar W626e Wi-fi 6 Routing-type Optical Network Unit Onu
5.0
Samples:
$500.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
OptiXstar W626E
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
0.65 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Router
Products Description

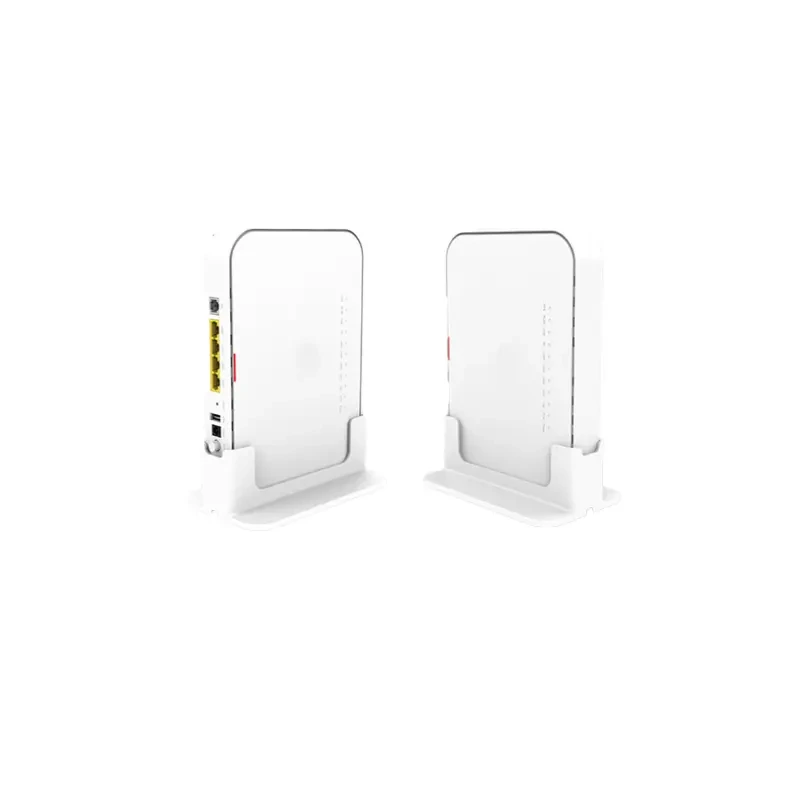

OptiXstar W626E is an intelligent GPON and Wi-Fi 6 routing-type Optical Network Unit ONU, offering ultra-broadband access, high performance, and wide coverage to users. The high forwarding performance ensures a consistent user experience for voice, data, and High Definition (HD) video services, providing customers a first-rate all-optical access solution with future-oriented service support capabilities.
Details Images
Specification
|
Parameters
|
HW OptiXstar W626E
|
|
Dimensions (H x W x D)
|
227.5 x 165 x 36 mm (without the base)
|
|
|
237.5 x 172.5 x 105 mm (without the base)
|
|
NNI
|
GPON
|
|
UNI
|
4 x GE + 1 x POTS + 2.4G/5G Wi-Fi 6 + 1 x USB
|
|
Optical Connector
|
SC/APC
|
|
Indicators
|
Power/PON/LOS/LAN/TEL/USB/WLAN/WPS
|
|
Antenna
|
Built-in antenna
|
|
System Power Supply
|
11–14 V DC, 1.5 A
|
|
Power Adapter Input
|
100–240 V AC, 50/60 Hz
|
|
Maximum Power Consumption
|
18 W
|
|
Weight
|
Approximately 650 g
|
|
Installation Mode
|
Desktop or wall mounting
|
|
Operating Temperature
|
0°C to 40°C
|
|
Operating Humidity
|
5% RH to 95% RH (non-condensing)
|
|
Memory
|
128 M Flash, 256 M RAM
|
