PAC-2200WA 02131188 S9300 Series S9300e Series S9312/S9306/S9303 Switch 2200 W Ac Power Module For H W
2200 W AC Power Module
Version Mapping
|
Model |
Power Module Name |
S9300 Chassis |
S9300E Chassis |
|---|---|---|---|
|
PAC-2200WA NOTE:
PAC-2200WA has replaced W0PSA2200 since Jan, 2016. |
2200 W AC power module |
S9303, S9306 and S9312 chassis: In V100R006C00, this power module is supported only in the PoE power module slots. In V200R001C00 and later versions, this power module is supported in all the power module slots. S9310 chassis: supported in V200R010C00 and later versions |
Supported in V200R001C00 to V200R013C00 |
Appearance
A 2200 W AC power module is 3 U in height.

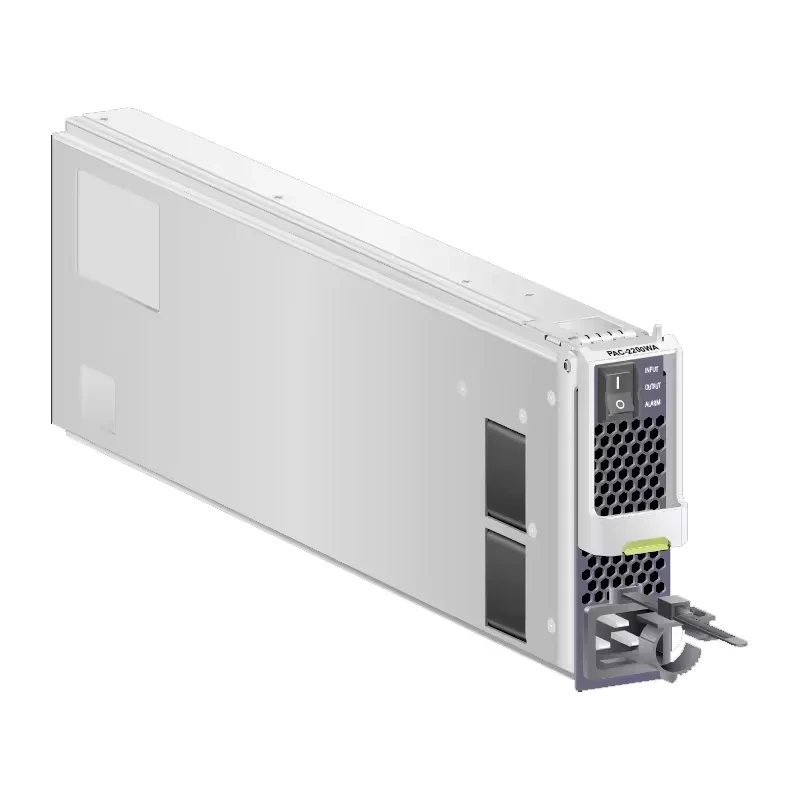

Figure 1 2200 W AC power module (PAC-2200WA)
Functions
|
unction |
Description |
|
|---|---|---|
|
Input protection |
Input undervoltage protection |
In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again. |
|
Input overcurrent protection |
In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced. |
|
|
Output protection |
Output overvoltage protection |
In this protection state:
|
|
Output overcurrent protection |
In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again. |
|
|
Output short-circuit protection |
In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again. |
|
|
Overtemperature protection |
When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
|
|
Hot swapping |
The power module is hot swappable. |
|
Panel Description
Figure 2 Panel of a 2200 W AC power module (PAC-2200WA)
|
1. Power switch |
2. Ejector lever |
3. Power socket |
|
4. ALARM indicator |
5. OUTPUT indicator |
6. INPUT indicator |
Table 3 Indicators on a power module panel (PAC-2200WA)
|
Indicator |
Color |
Description |
|---|---|---|
|
INPUT |
Green |
Steady on: The input power of the power module is in the normal range. Blinking: The power module is in an input undervoltage or input overvoltage condition. Off: The power module receives no input power. |
|
OUTPUT |
Green |
Steady on: The output power of the power module is in the normal range. Off: The power module provides no output power. |
|
ALARM |
Red |
Steady on: The power module is experiencing overheating, external short circuit, output overvoltage, output overcurrent, or a fan failure. Blinking: Communication between the power module and CMU has been interrupted. Off: The power module is working normally. |
Specifications
|
Item |
Value |
|
|---|---|---|
|
Dimensions (H x W x D) |
130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.) |
|
|
Weight |
< 2.5 kg |
|
|
Input |
Rated input voltage |
220 V AC/110 V AC; 50/60 Hz |
|
Rated input voltage range |
200 V AC to 240 V AC (220 V AC input)/100 V AC to 120 V AC (110 V AC input); 47 Hz to 63 Hz |
|
|
Maximum input voltage range |
90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage is in the range of 90 V AC to 175 V AC.) |
|
|
Maximum input current |
15.5 A |
|
|
Output |
Maximum output current |
42 A (220 V AC input)/21 A (110 V AC Input) |
|
Maximum output power |
2200 W (220 V AC input)/1100 W (110 V AC input) |
|
|
Hot swapping |
Supported |
|
|
Part number |
02131188 |
|
