PHD3KS54-CA 02311YLY 3000 W HVDC power module for S9300 S9300E for h w 1

PHD3KS54-CA 02311YLY 3000 W HVDC power module for S9300 S9300E for h w 2

PHD3KS54-CA 02311YLY 3000 W HVDC power module for S9300 S9300E for h w

Samples:

$200.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-100(pieces):3(days),>100(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

PHD3KS54-CA

Inquiry

Write a Review

Weight

< 3.0 kg

Rated input voltage

240 V DC/380 V DC

Part Number

02311YLY

Use

other

Place of Origin

Guangdong, China

Type

power module

Product Description

3000 W HVDC Power Module

Version Mapping

Table 1 Switch chassis and software versions matching a 3000 W HVDC power module

Model	Power Module Name	S9300 Chassis	S9300E Chassis
PHD3KS54-CA	3000 W HVDC power module (Purple gray)	Supported in V200R012C00 and later versions	Supported only in V200R012C00 and V200R013C00

Appearance

A 3000 W HVDC power module is 3 U in height.

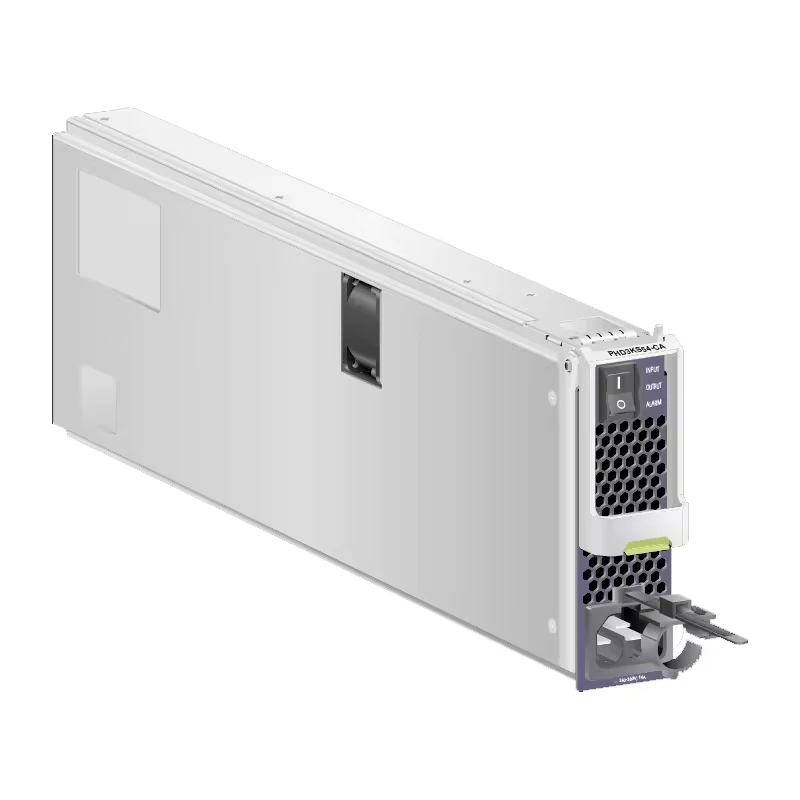

Figure 1 3000 W HVDC power module

PHD3KS54-CA 02311YLY 3000 W HVDC power module for S9300 S9300E for h w

Functions

A 3000 W HVDC power module provides a maximum power of 3000 W for the chassis.

Table 2 Functions of a 3000 W HVDC power module

Function		Description
Input protection	Input overvoltage protection	In this protection state, the power module is turned off and stops supplying power. When the system recovers from input overvoltage, the power module can automatically start supplying power again.
	Input undervoltage protection	In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again.
	Input polarity reversal protection	The input does not distinguish the positive and negative wires. The input is normal. The reverse connection is normal, and no alarm is generated.
Output protection	Output overvoltage protection	In this protection state: If output overvoltage is caused by the power module itself, the power module stops supplying power. When the system recovers from output overvoltage, the power module cannot automatically start supplying power again. If output overvoltage is caused by increase of the input voltage received from the external power source, the power module stops supplying power. When the system recovers from output overvoltage, the power module can automatically start supplying power again.
	Output overcurrent protection	In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again.
	Output short-circuit protection	In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again.
Overtemperature protection		When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping		The power module is hot swappable.

Panel Description

Figure 2 Panel of a 3000 W HVDC power module

1. Power switch	2. Ejector lever	3. Power socket
4. ALARM indicator	5. OUTPUT indicator	6. INPUT indicator

Table 3 Indicators on a power module panel

Indicator	Color	Description
INPUT	Green	Steady on: The input power of the power module is in the normal range. Blinking: The power module is in an input undervoltage or input overvoltage condition. Off: The power module receives no input power.
OUTPUT	Green	Steady on: The output power of the power module is in the normal range. Off: The power module provides no output power.
ALARM	Red	Steady on: The power voltage is experiencing overheating, external short circuit, output overvoltage, output overcurrent, or a fan failure. Blinking: Communication between the power module and CMU has been interrupted. Off: The power module is working normally.

Indicator

Color

Description

INPUT

Green

Steady on: The input power of the power module is in the normal range.

Blinking: The power module is in an input undervoltage or input overvoltage condition.

Off: The power module receives no input power.

OUTPUT

Green

Steady on: The output power of the power module is in the normal range.

Off: The power module provides no output power.

ALARM

Red

Steady on: The power voltage is experiencing overheating, external short circuit, output overvoltage, output overcurrent, or a fan failure.

Blinking: Communication between the power module and CMU has been interrupted.

Off: The power module is working normally.

Specifications

Table 4 Technical specifications of a 3000 W HVDC power module

Item		Value
Dimensions (H x W x D)		41 mm x 130 mm x 417.4 mm (1.6 in. x 5.1 in. x 16.4 in.)
Weight		< 3.0 kg
Input	Rated input voltage	240 V DC/380 V DC
	Input voltage range	190 V DC to 400 V DC
	Maximum input current	14 A
Output	Rated output voltage	53.5 V DC
	Output voltage range	53 V DC to 54 V DC
	Maximum output current	56.1 A
	Maximum output power	3000 W
Hot swapping		Supported
Part number		02311YLY
