CR5B0BKP0871 02350AFW Ne40e-x8a Integrated Chassis Dc Components(including 2 Fan Tray) For H W
5.0
Доставка:
Поддержка морских перевозок
Место происхождения:
Китай
Платежи:
Л / К, Д / А, Д / П, Т / Т, западное соединение, МонейГрам, О.А.
Время выполнения заказа:
1-100(шт.):3(дней),>100(шт.): по договоренности(дней)
Изготовление на заказ:
Подгонянный логотип (Min. Заказ: 10000 комплектов), Индивидуальная упаковка (мин. Заказ: 10000 комплектов), настройка графики (мин. Заказ: 10000 комплектов)
Фирменное наименование:
как
Номер модели:
CR5B0BKP0871
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Пожалуйста, заполните форму ниже, чтобы запросить цитату или запросить дополнительную информацию о нас. Пожалуйста, будьте максимально подробны в вашем сообщении, и мы вернемся к вам как можно скорее с ответом. Мы готовы начать работать над своим новым проектом, свяжитесь с нами сейчас, чтобы начать.
MTTR
0.5 час
MTBF
22.32 Год
Количество слотов для обслуживания
8
Количество слотов
12
Размеры без упаковки (H x w x d)
930 мм х 442 мм х 650 мм
Температура хранения
-40 ° C до 70 ° C (от -40 ° F до 158 ° F)
Длительная рабочая температура
0 ° C до 45 ° C (от 32 ° F до 113 ° F)
Высота шасси
21 U
Номер детали
02350AFW
Использование
Другие
Место происхождения
Guangdong, Китай
Тип
Шасси
รายละเอียดสินค้า
NE40E-X8A
Overview
Mesa 1
Basic information about the NE40E-X8A
| Descrição | Part Number | Modelo | First Supported Version | Remarks |
|---|---|---|---|---|
| NE40E-X8A Integrated Chassis DC Components(Including 2 Fan Tray) | 02350AFW | CR5B0BKP0871 | V800R006C20 | - |

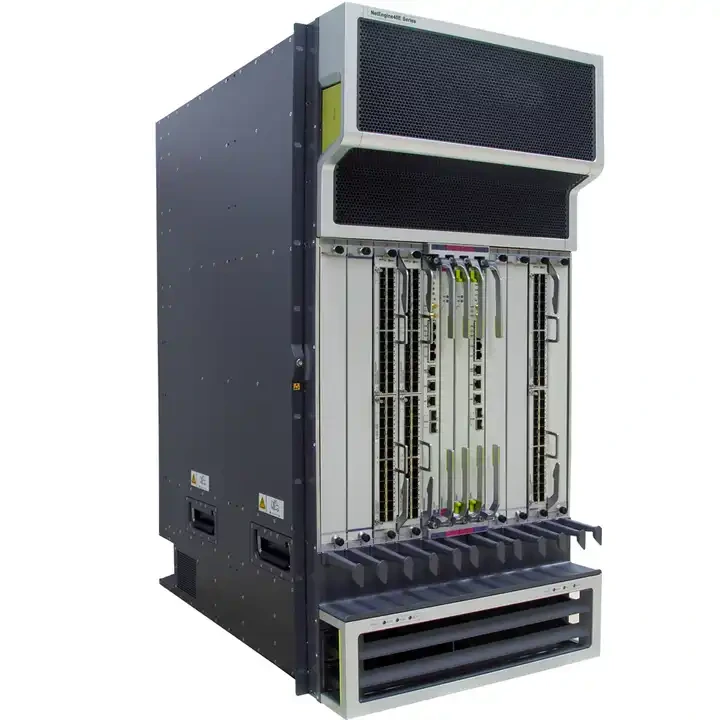

Figura 1 Appearance of the NE40E-X8A
Mesa 2
Technical specifications
| Item | Especificação |
|---|---|
| Cabinet installation standards | Can be installed in a standard 19" 800 mm-deep cabinet. A 2.2 m-high N68E cabinet is used by default. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 930 mm x 442 mm x 650 mm (36.61 in. x 17.40 in. x 25.59 in.) (Chassis main body) 930 mm x 442 mm x 750 mm (36.61 in. x 17.40 in. x 29.53 in.) (Dimensions of the chassis body together with cable trays and front and back attachments) |
| Chassis height [U] | 21 U |
| Weight without packaging (base configuration) [kg(lb)] | 78.9 kg (173.94 lb) |
| Weight without packaging (full configuration) [kg(lb)] | [400G bundle] 186.1 kg (410.28 lb) [1T bundle] 209 kg (460.77 lb) |
| Typical power consumption [W] | 4110 W (fully configured with LPUF-240s) 4770 W (fully configured with LPUF-480s) 6520 W (fully configured with LPUI-1Ts) |
| Typical heat dissipation [BTU/hour] | 13334.6 BTU/hour (fully configured with LPUF-240s) 15475.9 BTU/hour (fully configured with LPUF-480s) 21153.6 BTU/hour (fully configured with LPUI-1Ts) |
| MTBF [year] | 22.32 ano |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999997443 |
| Power supply mode | DC built-in |
| Maximum number of power chassis inputs | (8 channels/PEM)*2 PEM=(2 channels/PM)*4 PM*2 PEM=16 channels |
| Rated input voltage [V] | –48 V/ –60 V |
| Input voltage range [V] | –40 V to –72 V |
| Maximum input current [A] | 63 A/single-module |
| Maximum input cable diameter [mm²] | 35 milímetros²/channel |
| Front-end circuit breaker/fuse [A] | 2 channels of 63 A/single-module [400G bundle] DC device: 4 PMs, with a total of 8 channels of 63 A [1T bundle] DC device: 6 PMs, with a total of 12 channels of 63 A |
| Noise at normal temperature (acoustic power) [dB(A)] | NEBS-compliance (< 78 dBA @ 27°C (80.6°F)) |
| Number of slots | 12 |
| Number of service board slots | 8 |
| Switching capacity | 25.16 Tbps (LPUI-1T) |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | 3+1 |
| Redundant power supply | [400G bundle] :3+1 [1T bundle] 5+1 |
| Redundant fans | [400G bundle] 2 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) [1T bundle] 3 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) |
| Long-term operating temperature [°C(°F)] | 0°C para 45°C (32°F para 113°F) |
| Short-term operating temperature [°C(°F)] | -5°C para 55°C (23°F para 131°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | <000000>le; 30°C/hour (86°F/hour) |
| Storage temperature [°C(°F)] | -40°C para 70°C (-40°F para 158°F) |
| Long-term operating relative humidity [RH] | 5% to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | <000000>le; 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | Less than 5000 m (16404 ft.) |
Vantagens
A)Stable and Wide Supply Chain System
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.
C) Safe and Easy Payment Solutions
Oferecemos suporte a uma variedade de métodos de pagamento, como T/T, cartão de crédito, etc.
D)Fast Delivery and Shipping
Entrega rápida, profissional e confiável.
E)Complete and powerful pre-sales and after-sales service system
To provide customers with professional pre-sales service, as well as after-sales technical services
F)More Than 14 Years Industry Experience
we have been engaged in this industry more than 14 years, we have rich industry experience.
FAQ
P: E seus principais produtos?
R: Nossas linhas de produtos incluem switches, roteadores, OLTs e SDHs. Módulos de rede, placas de interface, firewalls de segurança, pontos de acesso sem fio etc.
P: Que marca de produtos vocês oferecem?
A:We are devoted to offering
Huawei, ZTE, Cisco, Ruijie and other network equipment brands
P: Podemos obter amostras grátis?
R: Desculpe, não está disponível, mas você pode pagar por um.
P: Quais termos comerciais você usa?
R: Oferecemos EXW.FOB, CIF e CNF ou conforme sua solicitação.
P: E quanto ao prazo de entrega?
R: Geralmente, leva de 1 a 10 dias após o recebimento do seu depósito. O prazo de entrega específico depende dos itens e da quantidade do seu pedido.
P: Vocês testam todos os seus produtos?
R: Sim, temos engenheiros profissionais para testar todos os dispositivos antes do envio.
