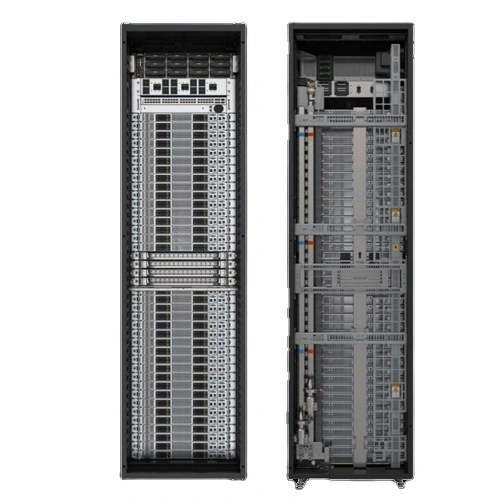

FusionPod 700 Scrate Scale Server Server Server Server

FusionPod 700 Cabinet Dimensions (H x W x D)
• Full liquid cooling (including front door and RDHx): without casters: 2200 mm x 600 mm x 1400 mm (86.61 in. x 23.62 in. x 55.11
in.), with casters: 2250 mm × 600 mm × 1400 mm (88.58 in. x 23.62 in. x 55.11 in.)
• Board-level liquid cooling (including front door and normal back door): without casters: 2200 mm x 600 mm x 1200 mm (86.61 in. X
23.62 in. x 47.24 in.), with casters: 2250 mm × 600 mm × 1200 mm (88.58 in. x 23.62 in. x 47.24 in.)

Specifiche tecniche
• Available space: 47 U
• Server node: 36 x 1 U server nodes
• Switching node: 4 service switching nodes, 1 out-of-band management switching node, and 1+1 redundancy of service switching
nodes
• Cabinet management node: 1 cabinet management module

Power Supply
• Power supply requirement: AC: 4 PSU modules in 2+2 redundancy mode, 380 V/32 A
• PSU module: 11+1 PSU, 3 kW

Cabinet Power and Heat Dissipation
• System maximum power consumption: 33 KW (backup) and 36 kW (no backup)
• Heat dissipation methods: liquid cooling + air cooling

Environmental Specifications
• Temperatura di esercizio: 5°Da C a 45°C (41°Da F a 113°F) (ASHRAE Classes A1 to A3 compliant)
• Storage temperature (within three months): -30°Da C a +60°C (-22°Da F a +140°F)
• Storage temperature (within six months): -15°Da C a +45°C (5°Da F a 113°)
• Storage temperature (within one year): -10°Da C a +35°C (14°Da F a 95°F)
• Maximum temperature change rate: 20°C (36°F) per hour, 5°C (9°F) per 15 minutes

Humidity (RH and No Condensing)
• Operating humidity: 8% to 90%
• Storage humidity (within three months): 8% to 85%
• Storage humidity (within six months): 8% to 80%
• Storage humidity (within one year): 20% to 75%
• Maximum change rate: 20%/h

Altitude
• Operating altitude: no more than 3050 m (10,006.56 ft)
- When the server configuration complies with ASHRAE Class A2 standards and the altitude is above 900 m (2,952.76 ft.), the
operating temperature decreases by 1°C (1.8°F) for every increase of 300 m (984.24 ft.)
- When the server configuration complies with ASHRAE Class A3 standards and the altitude is above 900 m (2,952.76 ft.), the
operating temperature decreases by 1°C (1.8°F) for every increase of 175 m (574.15 ft)
- When the configuration complies with ASHRAE Class A4 standards and the altitude is above 900 m (2,952.76 ft.), the operating
temperature decreases by 1°C (1.8°F) for every increase of 125 m (410.10 ft)

Installazione
• Installation dimensions: cabinet projection area: 600 mm x 1350 mm (23.62 in. x 53.15 in.); reserve at least 1.2 m (3.94 ft)
space for maintenance in front of and behind the cabinet
• Package size (W x H x D): 980 mm x 2405 mm x 1310 mm (except the front door and the back door)
• Fully loaded weight: 1200 Kg
• Cabinet package weight: 34.8 kg
• Equipment room: no less than 1000 kg/m²
• Equipment room floor height: no less than 600 mm
• Manifold pipe installation port: 1-inch flange quick port
• RDHx pipe installation port: 1-inch flange quick port

Cooling
• Manifold water supply requirement: pH value: <000000>ge; 6.5; glycol-concentration: 25% ± 5% (volume concentration); total microorganism
count: < 105 CFU/mL
Turbidity: no visible impurities in the filter net
• Manifold water supply temperature: 5ºDa C a 45ºC (41°Da F a 113°F)
• Manifold recommended water supply temperature: 30ºC (86°F)
• Manifold water supply flow: 32 LPM
• Manifold water supply maximum pressure: 350 KPa
• Manifold supply and return water pressure difference: 35 KPa at 25% glycol solution
