S310-24P4X 98012335 S310 Series Fiber Optical Switch 2410/100/1000base-t Ports 4ge Sfp Poe+ Ac Power

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets),Customized logo (Min. Order: 10000 sets)

Brand Name:

Model Number:

S310-24P4X

Inquiry

Write a Review

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Products Description

S310 Series fiber optical switch 24*10/100/1000BASE-T Ports 4*GE SFP PoE+ AC power S310-24P4X

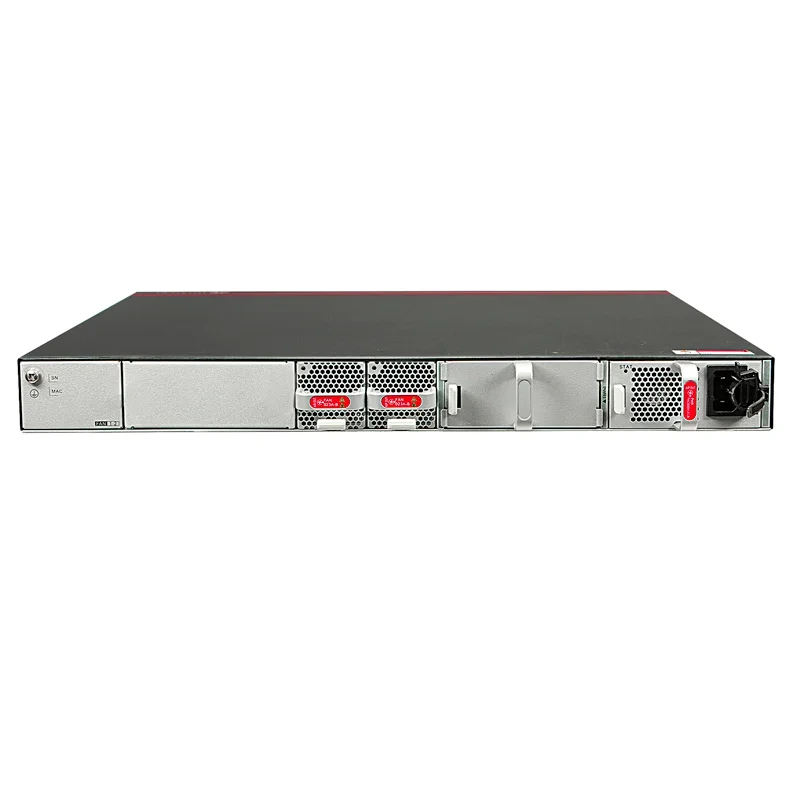

Details Images

S310-24P4X 98012335 S310 Series Fiber Optical Switch 24*10/100/1000base-t Ports 4*ge Sfp Poe+ Ac Power 2

S310-24P4X 98012335 S310 Series Fiber Optical Switch 24*10/100/1000base-t Ports 4*ge Sfp Poe+ Ac Power 3

Specification

Chassis material	Metal
Height [mm]	43.6 mm
Depth [mm]	220.0 mm
Wide [mm]	442.0 mm
Chassis height [U]	1
Weight without packaging [kg(lb)]	2.92 (6.44)
Weight with packaging [kg(lb)]	3.79 (8.36)
Typical power consumption [W]	37.12
Maximum power consumption [W]	- Without PoE: 44.35 W - Full PoE load: 485.91 W (PoE: 400 W)
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Typical heat dissipation [BTU/hour]	126.65
Maximum heat dissipation [BTU/hour]	- Without PoE: 151.32 - Full PoE load: 1657.92
Power supply mode	AC built-in
Input voltage range [V]	- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC
Rated input voltage [V]	- AC input: 100 V AC to 240 V AC, 50/60 Hz - High-voltage DC input: 240 V DC
Maximum input current [A]	6 A
Number of card slots	0
Number of power slots	0
Memory	2 GB
Flash memory	Physical space: 1 GB
Redundant power supply	Not supported
Types of fans	Built-in
Noise at normal temperature (acoustic power) [dB(A)]	49.3
Noise at normal temperature (acoustic pressure) [dB(A)]	37.3
Airflow direction	Air intake from left and front, air exhaustion from right
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
MTBF [year]	60.18
MTTR [hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	28
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	4
Maximum number of GE ports	28
Maximum number of FE ports	24
USB	Not supported
Console port	RJ45
Eth Management port	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection	Differential mode: ±6 kV; common mode: ±6 kV
RPS input	Not supported
PoE	Supported
