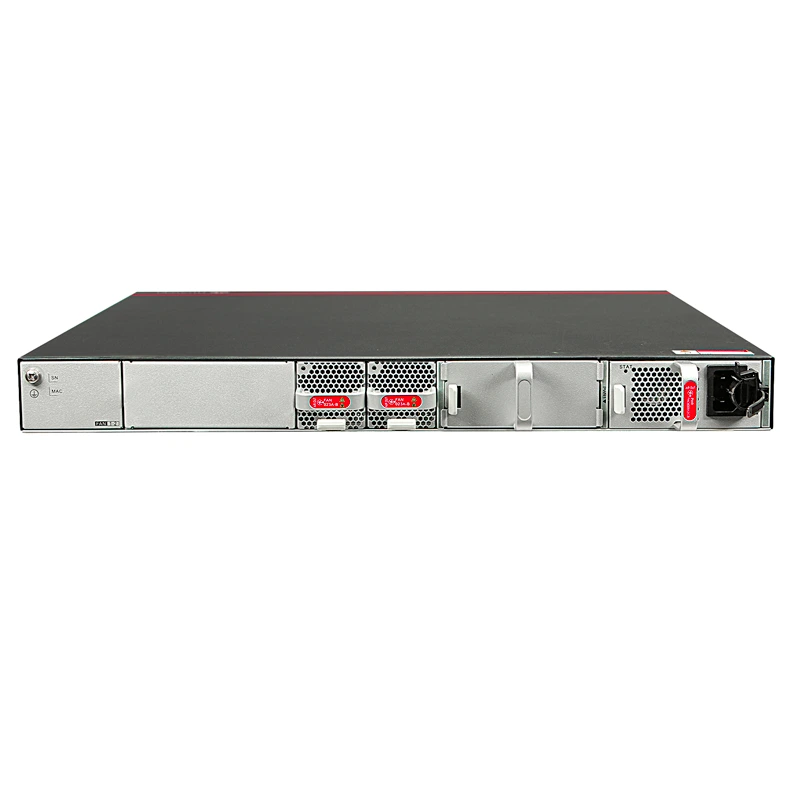

S5700-28c-pwr-ei 02352361 S5700 Series S5700-ei Series Ethernet Switch For H W1
S5700-28C-PWR-EI
Version Mapping
|
Series |
Model |
Software Version |
|---|---|---|
|
S5700-EI |
S5700-28C-PWR-EI |
V100R005C01 to V200R005C03 |
Appearance and Structure
|
Item |
Description |
|---|---|
|
Memory (RAM) |
256 MB |
|
Flash |
32 MB |
|
Mean time between failures (MTBF) |
52 years when a 2-port 10GE interface card is configured, 55.4 years when a 4-port GE front card is configured, 32.92 years when a 4-port 10GE front card is configured |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
±1 kV in common mode |
|
Power supply surge protection |
±2 kV in differential mode, ±4 kV in common mode |
|
Dimensions (H x W x D) |
43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
|
Weight |
|
|
Stack ports |
Two stack ports available on each stack card |
|
RPS |
Not supported |
|
PoE |
Supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans) |
842 W (system power consumption: 102 W, PoE: 740 W) |
|
Operating temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 45 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
|
|
Part number |
02352361 |
