S5720-28P-SI-AC 02350DLS 20*10/100/1000BASE-T ports+4*combo ports network 24 port switch 1

S5720-28P-SI-AC 02350DLS 20*10/100/1000BASE-T ports+4*combo ports network 24 port switch 2

S5720-28P-SI-AC 02350DLS 20*10/100/1000BASE-T ports+4*combo ports network 24 port switch 3

S5720-28P-SI-AC 02350DLS 20*10/100/1000BASE-T ports+4*combo ports network 24 port switch 4

S5720-28P-SI-AC 02350DLS 20*10/100/1000BASE-T ports+4*combo ports network 24 port switch 5

S5720-28P-SI-AC 02350DLS 2010/100/1000BASE-T ports+4combo ports network 24 port switch

Samples:

$600/piece | Min. order : 1 piece

Shipping:

FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5720-28P-SI-AC

Inquiry

Write a Review

Weight(with packaging)

9.1 kg (20.06 lb)

Memory (RAM)

512 MB

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Maximum power consumption

34.6 W

Part Number

02350DLS

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

S5720-28P-SI-AC

Version Mapping

Table 1 Version mapping

Series		Model	Software Version
S5720-SI	S5720-P-SI	S5720-28P-SI-AC	V200R008C00 to V200R019C10 versions

Appearance and Structure

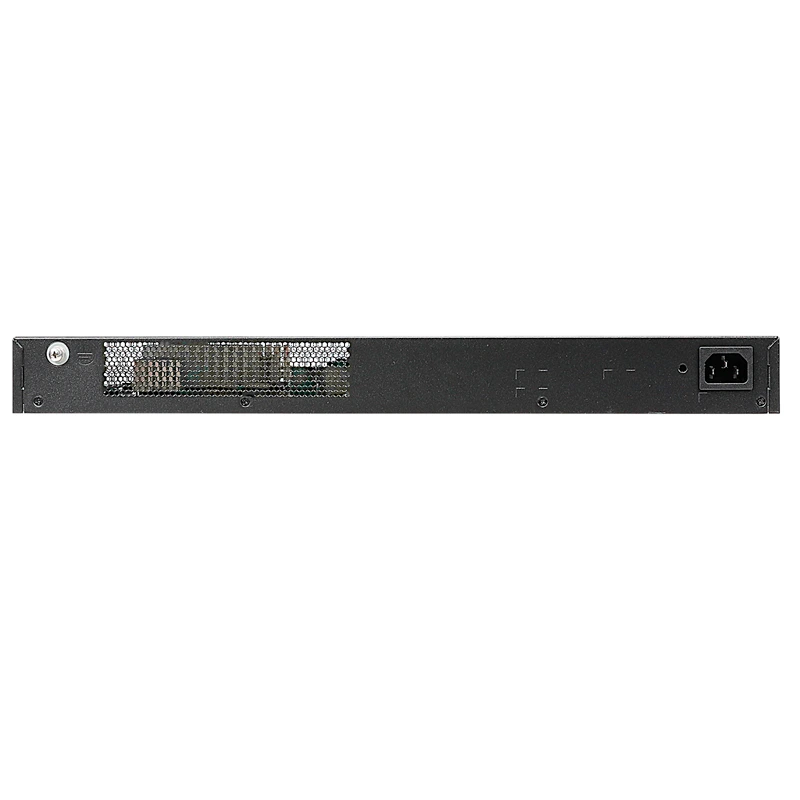

Figure 1 S5720-28P-SI-AC appearance

S5720-28P-SI-AC 02350DLS S5700 Series S5720-SI S5720-P-SI Series 24 Port Access Ethernet Switch for h w

Table 2 Technical specifications

Item	Description
Memory (RAM)	512 MB
Flash	512 MB in total
Mean time between failures (MTBF)	85.48 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)
Weight (with packaging)	9.1 kg (20.06 lb)
Stack ports	GE electrical ports and GE SFP optical ports except combo ports on the front panel
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	34.6 W
Typical power consumption (30% of traffic load)	21.2 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 52 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	AC power modules configured: 0-5000 m (0-16404 ft.) DC power modules configured: 0-2000 m (0-6562 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02350DLS
