S5720-28TP-PWR-LI-AC 98010637 24* PoE+ 10/100/1000BASE-T ports 2* combo ports enterprise switch poe 24 port

Samples:

$362/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5720-28TP-PWR-LI-AC

Inquiry

Write a Review

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

S5720-28TP-PWR-LI-AC

Version Mapping

Table 1 Version mapping

Series	Model	Software Version
S5720-LI	S5720-28TP-PWR-LI-AC	V200R010C00 and later versions

Appearance and Structure

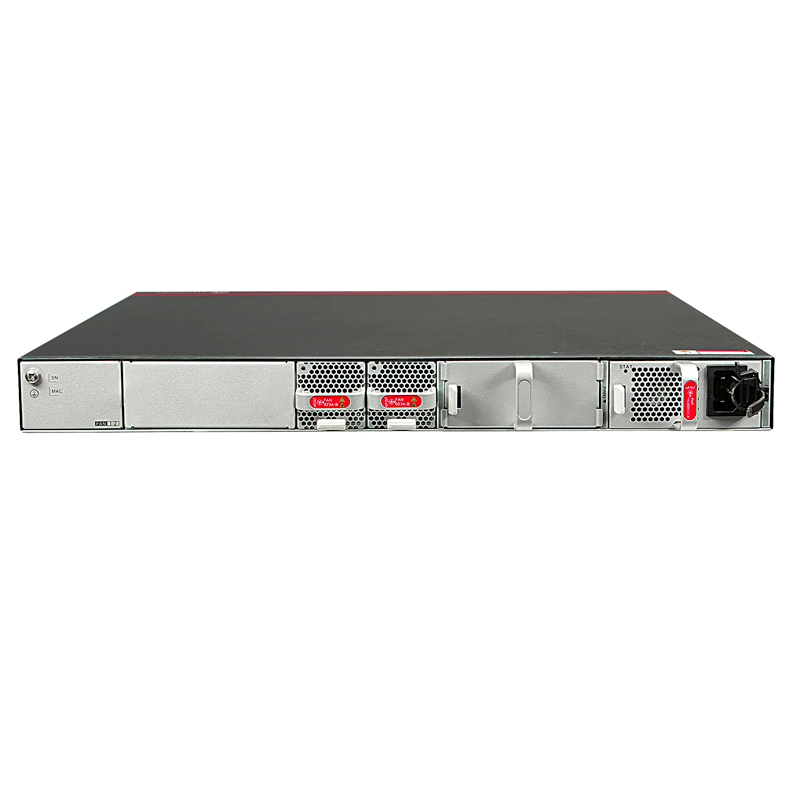

Figure 1 S5720-28TP-PWR-LI-AC appearance

S5720-28TP-PWR-LI-AC 98010637 S5720-LI Series Ethernet Switch for h w

Table 2 Technical specifications

Item	Description
Memory (RAM)	512 MB
Flash	512 MB in total
Mean time between failures (MTBF)	40 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 314.8 mm (1.72 in. x 17.4 in. x 12.39 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 323.8 mm (1.72 in. x 17.4 in. x 12.75 in.)
Weight (with packaging)	5.3 kg (11.69 lb)
Stack ports	Twenty-four 10/100/1000BASE-T ports and two 1000BASE-X ports
RTC	Not supported
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 38.8 W 100% PoE loads: 444.8 W (system power consumption: 75.2 W, PoE: 369.6 W)
Typical power consumption (30% of traffic load)	27.4 W
Operating temperature	0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 48.6 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	98010637
