S5720I-12X-SI-AC S5700 Series Ethernet Switch with 8*10/100/1000base-T Ports

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5720I-12X-SI-AC

Inquiry

Write a Review

Weight(with packaging)

2.65 kg (5.84 lb)

Memory (RAM)

512 MB

Part Number

98010794

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

S5720I-12X-SI-AC

Version Mapping

Table 1 Version mapping

Series	Switch Model	Software Version
S5720I-SI	S5720I-12X-SI-AC	V200R012C00 and later versions

Appearance and Structure

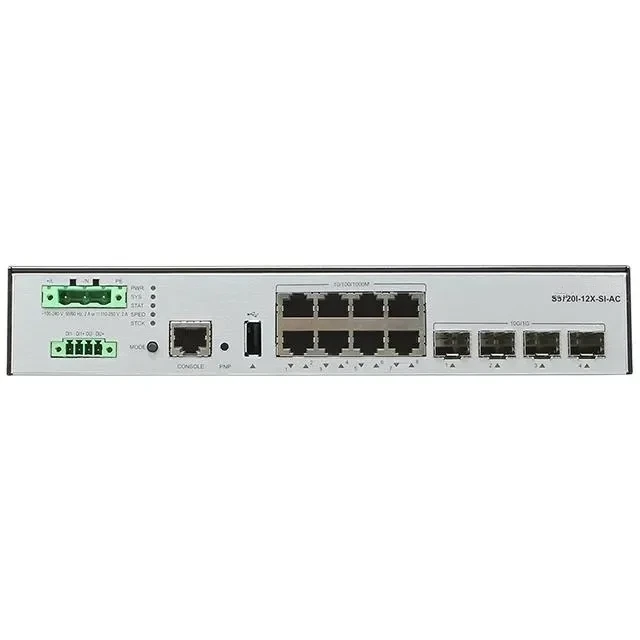

Figure 1 S5720I-12X-SI-AC appearance

S5720I-12X-SI-AC 98010794 S5700 Series S5720I-SI Series Ethernet Switch for h w

Table 2 Technical specifications

Item	Description
Memory (RAM)	512 MB
Flash	512 MB in total
Mean time between failures (MTBF)	67.89 years
Mean time to repair (MTTR)	2
Availability	> 0.99999
Service port surge protection	±1.5 kV in differential mode, ±6 kV in common mode
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.8 in. x 7.1 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 186.36 mm (1.72 in. x 9.8 in. x 7.34 in.)
Weight (with packaging)	2.65 kg (5.84 lb)
Stack ports	Eight 10/100/1000BASE-T ports and four 10G SFP+ ports
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz 110 V DC to 250 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz 110 V DC to 250 V DC
Maximum power consumption (100% throughput)	17 W
Typical power consumption (30% of traffic load)	15.6 W
Operating temperature	-40°C to +65°C (-40°F to +149°F) (installed in the sealing cabinet) -40°C to +70°C (-40°F to +158°F) (installed in the ventilation cabinet, with the wind speed of at least 40 LFM) -40°C to +75°C (-40°F to +167°F) (installed in the ventilation cabinet shipped with fans with a fan speed of at least 200 LFM)
Storage temperature	-40°C to +85°C (-40°F to +185°F)
Protection rating	IP30
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	98010794
