S5720I-28X-PWH-SI-AC 98010797 24*10/100/1000BASE-T Ports and 4*10G SFP+ Ports Network Switch 1

S5720I-28X-PWH-SI-AC 98010797 24*10/100/1000BASE-T Ports and 4*10G SFP+ Ports Network Switch 2

S5720I-28X-PWH-SI-AC 98010797 24*10/100/1000BASE-T Ports and 4*10G SFP+ Ports Network Switch 3

S5720I-28X-PWH-SI-AC 98010797 24*10/100/1000BASE-T Ports and 4*10G SFP+ Ports Network Switch 4

S5720I-28X-PWH-SI-AC 98010797 2410/100/1000BASE-T Ports and 410G SFP+ Ports Network Switch

Samples:

$1100/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5720I-28X-PWH-SI-AC

Inquiry

Write a Review

Weight(with packaging)

6.7 kg (14.77 lb)

Memory (RAM)

512 MB

Part Number

98010797

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

S5720I-28X-PWH-SI-AC

Version Mapping

Table 1 Version mapping

Series	Model	Software Version
S5720I-SI	S5720I-28X-PWH-SI-AC	V200R012C00 and later versions

Appearance and Structure

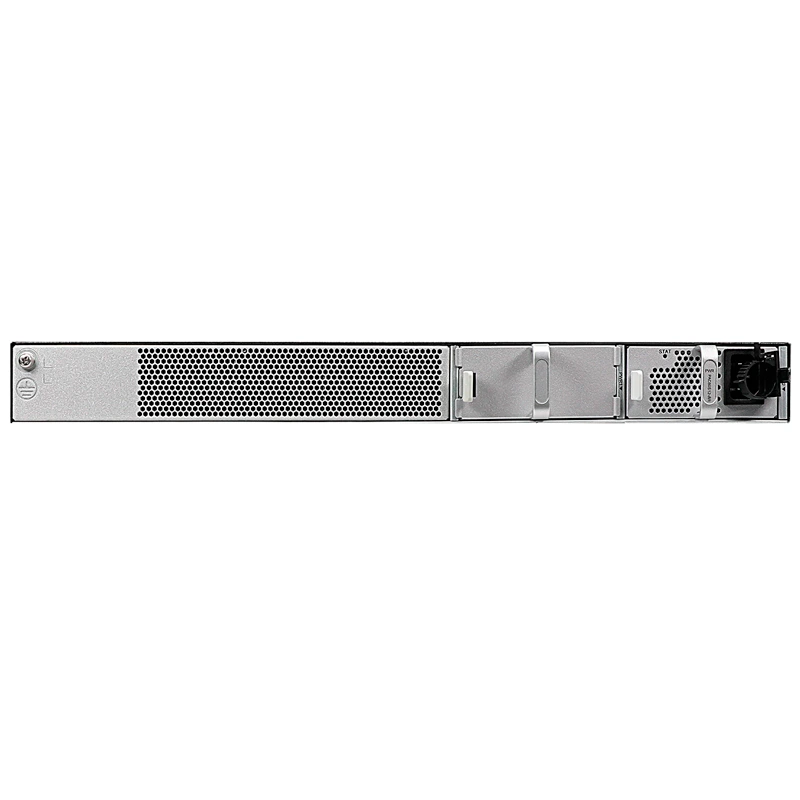

Figure 1 S5720I-28X-PWH-SI-AC appearance

S5720I-28X-PWH-SI-AC 98010797 S5700 Series 28 Ports Gigabit Switch

Table 2 Technical specifications

Item	Description
Memory (RAM)	512 MB
Flash	512 MB in total
Mean time between failures (MTBF)	45.94 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	±1.5 kV in differential mode, ±6 kV in common mode
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 316.46 mm (1.72 in. x 17.4 in. x 12.46 in.)
Weight (with packaging)	6.7 kg (14.77 lb)
Stack ports	Twenty-four 10/100/1000BASE-T ports and four 10G SFP+ ports
RTC	Supported
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	Without PoE: 57.8 W 100% PoE loads: 905 W (system power consumption: 165.8 W, PoE: 739.2 W)
Typical power consumption (30% of traffic load)	34.6 W
Operating temperature	-40°C to +65°C (-40°F to +149°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +85°C (-40°F to +185°F)
Protection rating	IP20
Noise under normal temperature (27°C, sound power)	< 47 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	98010797
