S5721-28X-SI-24S-AC 98010661 S5700 Series 16*100/1000base-X Ports+8 Combo Ports +4*10ge SFP+ Ports Ethernet Switch 1

S5721-28X-SI-24S-AC 98010661 S5700 Series 16*100/1000base-X Ports+8 Combo Ports +4*10ge SFP+ Ports Ethernet Switch 2

S5721-28X-SI-24S-AC 98010661 S5700 Series 16100/1000base-X Ports+8 Combo Ports +410ge SFP+ Ports Ethernet Switch

Samples:

$385/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-50(pieces):7(days),51-100(pieces):15(days),>100(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5721-28X-SI-24S-AC

Inquiry

Write a Review

Typical power consumption

34.5 W

Weight(with packaging)

8.6 kg (18.96 lb)

Memory (RAM)

512 MB

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Part Number

98010661

Place of Origin

Guangdong, China

Product Description

S5721-28X-SI-24S-AC

Version Mapping

Table 1 Version mapping

Series		Switch Model	Software Version
S5720-SI	S5720-X-SI	S5721-28X-SI-24S-AC	V200R011C10 to V200R019C10 versions

Appearance and Structure

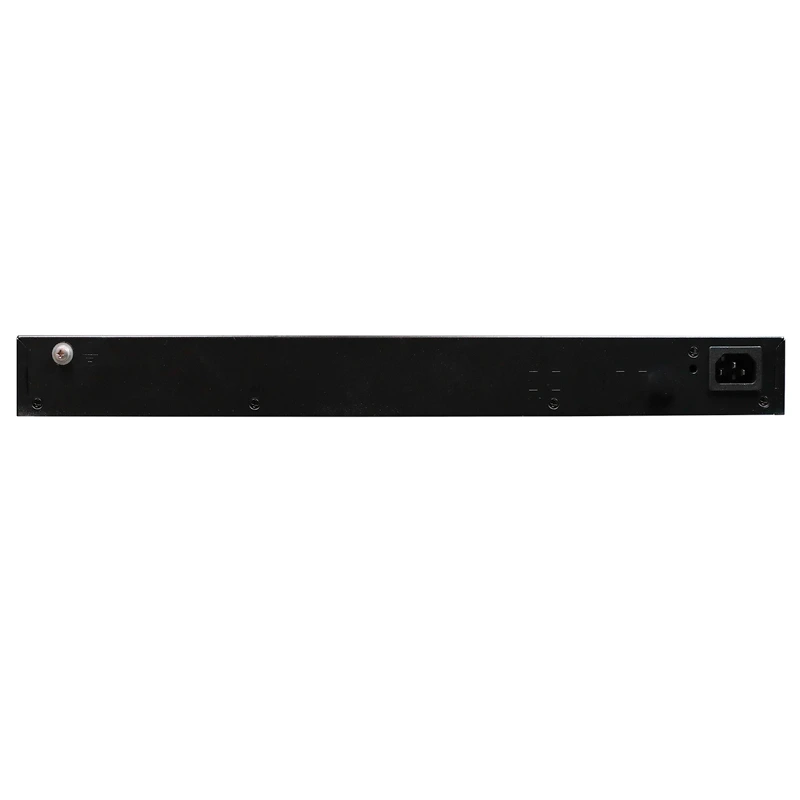

Figure 1 S5721-28X-SI-24S-AC appearance

S5721-28X-SI-24S-AC 98010661 S5700 Series S5720-SI S5720-X-SI Series Ethernet Switch for h w

Table 2 Technical specifications

Item	Description
Memory (RAM)	512 MB
Flash	512 MB in total
Mean time between failures (MTBF)	36 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)
Weight (including package)	8.6 kg (18.96 lb)
Stack ports	GE optical ports and 10GE SFP+ optical ports except combo ports on the front panel
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	41 W
Typical power consumption (30% of traffic load)	34.5 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 50.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	AC power modules configured: 0-5000 m (0-16404 ft.) DC power modules configured: 0-2000 m (0-6562 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	98010661
