S5730-44C-PWH-HI 02351LKB 24* PoE++ 10/100/1000BASE-T Ports+4*10GE SFP+ Ports Enterprise Switch

Samples:

$2500/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5730-44C-PWH-HI

Inquiry

Write a Review

Memory (RAM)

2 GB

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Part Number

02351LKB

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

S5730-44C-PWH-HI

Version Mapping

Table 1 Version mapping

Series	Model	Software Version
S5730-HI	S5730-44C-PWH-HI	V200R012C00 to V200R019C10 versions

Appearance and Structure

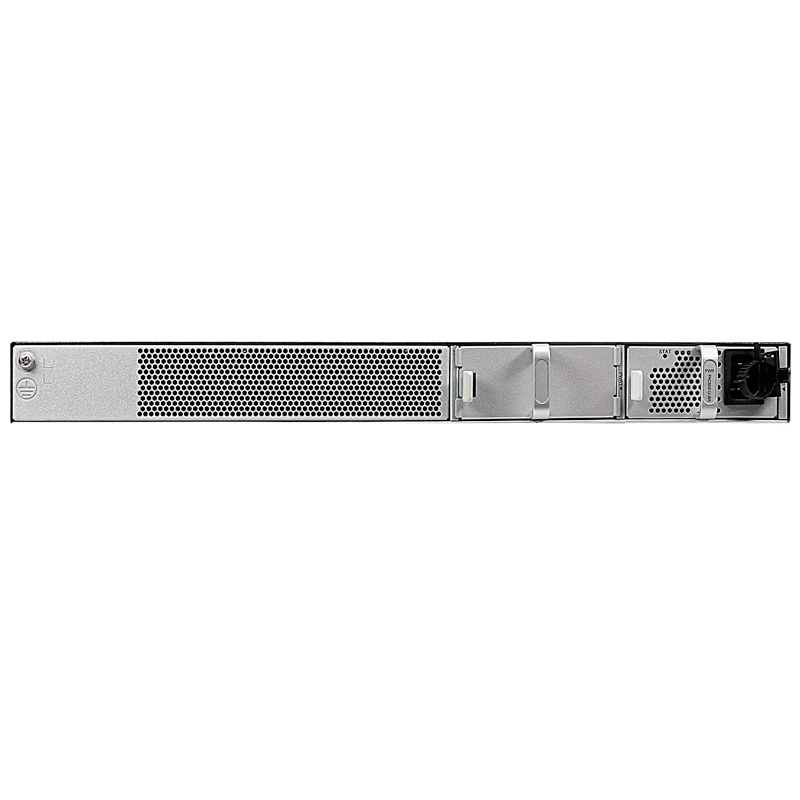

Figure 1 S5730-44C-PWH-HI appearance

S5730-44C-PWH-HI 02351LKB S5700 Series S5730-HI Series POE Ethernet Switch for h w

Table 2 Technical specifications

Item	Description
Memory (RAM)	2 GB
Flash	1 GB in total
Mean time between failures (MTBF)	49.48 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	Using 500 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using 650 W DC or 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 541.1 mm (21.3 in.).
Weight (with packaging)	8.5 kg (18.74 lb)
Stack ports	10GE SFP+ ports on the front panel, or 10GE ports or 40GE QSFP+ ports on the rear card
RTC	Supported
RPS	Not supported
PoE	Supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Using 650 W DC power modules: Not providing the PoE function: 94 W (without card) 100% PoE loads: 830 W (system power consumption: 130 W, PoE: 700 W, without card) Using 500 W AC power modules: Not providing the PoE function: 94 W (without card) 100% PoE loads: 830 W (system power consumption: 90.8 W, PoE: 739.2 W, without card) Using 1150 W AC power modules or 1000 W AC power modules: Not providing the PoE function: 107.6 W (without card) 100% PoE loads: 1596 W (system power consumption: 156 W, PoE: 1440 W, without card)
Typical power consumption (30% of traffic load)	Using 650 W DC or 500 W AC power modules: 65 W (without card) Using 1150 W AC or 1000 W AC power modules: 71 W (without card)
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 69.6 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02351LKB
