S5735-L48S4XE-A-V2 98012226 Industrial Ethernet Switch With 48*ge Sfp Ports,4*10ge Sfp+ Ports,2*12ge Stack Ports
5.0
Samples:
$545/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):3(days),2-10(pieces):7(days),11-100(pieces):15(days),>100(pieces):To be negotiated(days)
Brand Name:
hw
Model Number:
S5735-L48S4XE-A-V2
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
4 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Switch
Products Description
Based on the latest generation of high-performance hardware and HW software platform, CloudEngine S5735-L-Q-V2 series switches feature flexible Ethernet networking, diversified security control, simple operation and maintenance, and support multiple Layer 3 routing protocols, providing higher performance and diversified service processing capabilities. The whole system of switches adopts fanless design, quiet and energy saving, widely used in medical, retail, mining, Internet and other industries

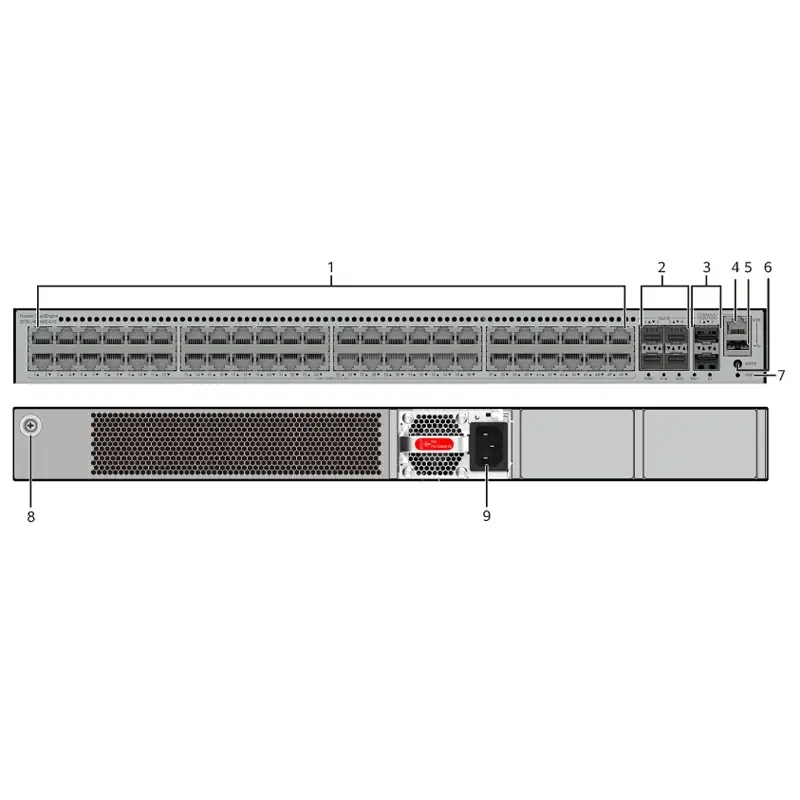

Details Images
Specification
|
Item
|
Specification
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
|
|
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
|
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
|
|
Chassis height [U]
|
1 U
|
|
Chassis material
|
Metal
|
|
Weight without packaging [kg(lb)]
|
3.2 kg (7.1 lb)
|
|
Weight with packaging [kg(lb)]
|
3.82 kg (8.42 lb)
|
|
Typical power consumption [W]
|
66.6 W
|
|
Typical heat dissipation [BTU/hour]
|
227.25 BTU/hour
|
|
Maximum power consumption [W]
|
85.5 W
|
|
Maximum heat dissipation [BTU/hour]
|
291.73 BTU/hour
|
|
Static power consumption [W]
|
32 W
|
|
MTBF [years]
|
46.98 years
|
|
MTTR [hours]
|
2 hours
|
|
Availability
|
> 0.99999
|
|
Noise at normal temperature (acoustic power) [dB(A)]
|
45.6 dB(A)
|
|
Noise at normal temperature (acoustic pressure) [dB(A)]
|
33.6 dB(A)
|
|
Number of card slots
|
0
|
|
Number of power slots
|
0
|
|
Number of fans modules
|
2
|
|
Redundant power supply
|
Not supported
|
|
Long-term operating temperature [°C(°F)]
|
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
|
|
Restriction on the operating temperature variation rate [°C(°F)]
|
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.). |
|
Devices cannot start when the temperature is lower than 0°C (32°F).
|
|
|
Storage temperature [°C(°F)]
|
–40°C to +70°C (–40°F to +158°F)
|
|
Long-term operating relative humidity [RH]
|
5% RH to 95% RH (non-condensing)
|
|
Long-term operating altitude [m(ft.)]
|
0–5000 m (0–16404 ft.)
|
|
Storage altitude [m(ft.)]
|
0-5000 m (0-16404 ft.)
|
|
Power supply mode
|
AC built-in
|
|
Rated input voltage [V]
|
AC input: 100–240 V AC; 50/60 Hz
|
|
Input voltage range [V]
|
AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
|
|
Maximum input current [A]
|
3 A
|
|
Memory
|
2 GB
|
|
Flash memory
|
Physical space: 1 GB
|
|
Console port
|
RJ45
|
|
Eth Management port
|
Supported
|
|
USB
|
Supported
|
|
RTC
|
Not supported
|
|
RPS input
|
Not supported
|
|
Power supply surge protection [kV]
|
Differential mode: ±6 kV; common mode: ±6 kV
|
|
Ingress protection level (dustproof/waterproof)
|
IP20
|
|
Types of fans
|
Built-in
|
|
Heat dissipation mode
|
Air cooling for heat dissipation, intelligent fan speed adjustment
|
|
Airflow direction
|
Air intake from left and front, air exhaustion from right
|
|
PoE
|
Not supported
|
|
Certification
|
EMC certification
|
|
Safety certification
|
|
|
Manufacturing certification
|
