We provide customers with various communication products at reasonable prices and high quality products and services

S5735S-L24T4S-MA 98010916 S5700 Series 2410/100/1000base-T Ports 4 1000base-X Ports sfp switch

Samples:

$178/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5735S-L24T4S-MA

Inquiry

Write a Review

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

S5735S-L24T4S-MA

Version Mapping

Table 1 Version mapping

Series	Model	Software Version
S5735S-L-M	S5735S-L24T4S-MA	V200R019C00 and later versions

Appearance and Structure

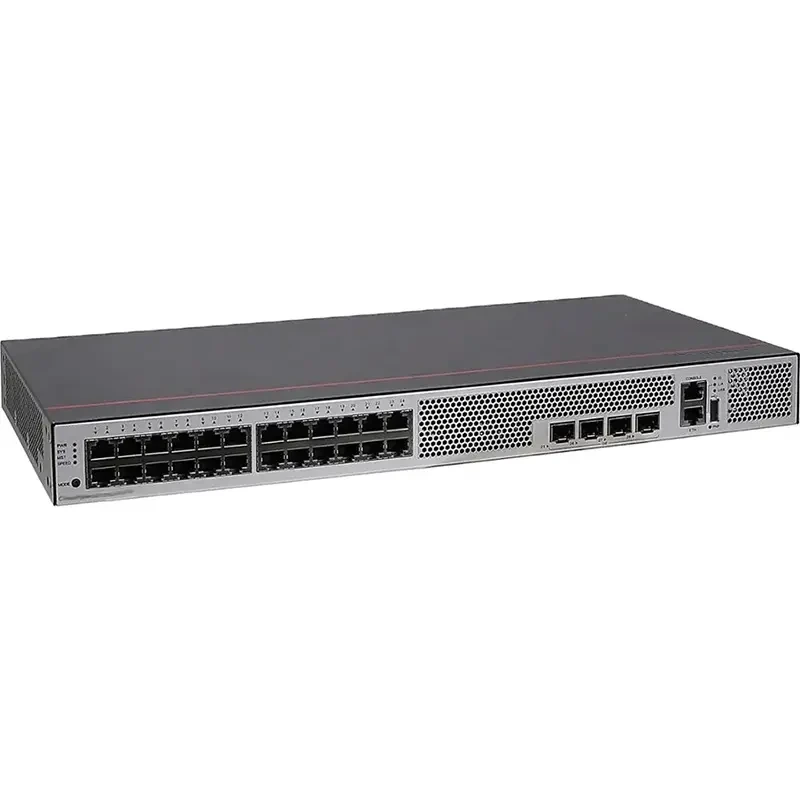

Figure 1 S5735S-L24T4S-MA appearance

S5735S-L24T4S-MA 98010916 S5700 S5735S-L-M Series Ethernet switch for h w

Table 2 Technical specifications

Item	Description
Memory (RAM)	1 GB
Flash	512 MB in total
Mean time between failures (MTBF)	92.82 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Weight (with packaging)	4.08 kg (9 lb)
Stack ports	Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions)
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC
Maximum voltage range	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz High-Voltage DC input: 190 V DC to 290 V DC
Maximum power consumption (100% throughput)	34 W
Typical power consumption (30% of traffic load)	28 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	Noise-free (no fans)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	98010916

Why Choose Us

A)Stable and Wide Supply Chain System

we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.

B)Competitive Price

We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.

C) Safe and Easy Payment Solutions

We support a variety of payment methods, such as T/T, credit card, et

D)Fast Delivery and Shipping

Fast, professional and reliable delivery.

E)Complete and powerful pre-sales and after-sales service system

To provide customers with professional pre-sales service, as well as after-sales technical services

F)More Than 20 Years Industry Experience

we have been engaged in this industry more than 20 years, we have rich industry experience.

FAQ

Q: How about your main products?
A:Our product lines include Switches.Routers,OLTs,SDHs. Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.

Q: What brand of products do you offer?

A:We are devoted to offering Huawei, ZTE, Cisco, Ruijie and other network equipment brands

Q:Can we get free samples?

A: Sorry, it is not available, but you can pay for one.

Q: What trade terms do you use ?

A: We offer EXW.FOB,CIF and CNF or as your request.

Q: How about your delivery time?

A:Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q: Do you test all your goods?

A:Yes we have professional engineer to test all devices before shipping.
