We provide customers with various communication products at reasonable prices and high quality products and services

S5735S-L48P4S-A1 98011346 S5700 S5735s-l1 Series 48*10/100/1000base-t Ports,4*ge Sfp Ports,Poe+,Ac Power Network Switch 1

S5735S-L48P4S-A1 98011346 S5700 S5735s-l1 Series 48*10/100/1000base-t Ports,4*ge Sfp Ports,Poe+,Ac Power Network Switch 2

S5735S-L48P4S-A1 98011346 S5700 S5735s-l1 Series 4810/100/1000base-t Ports,4ge Sfp Ports,Poe+,Ac Power Network Switch

Samples:

$350/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-100(pieces):3(days),>100(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S5735S-L48P4S-A1

Inquiry

Write a Review

Typical power consumption

58.7 W

Weight(with packaging)

4.28 kg (9.44 lb)

Dimensions with packaging (H x W x D)

90.0 mm x 550.0 mm x 360.0 mm

Memory (RAM)

512 MB

Certification

CCC

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Part Number

98011346

Use

other

Place of Origin

Guangdong, China

Type

Ethernet Switch

Product Description

S5735S-L48P4S-A1

Overview

Table 1 Basic information about the S5735S-L48P4S-A1

Item	Details
Description	S5735S-L48P4S-A1 (4810/100/1000BASE-T ports, 4GE SFP ports, PoE+, AC power)
Part Number	98011346
Model	S5735S-L48P4S-A1
First supported version	V200R020C10

Components

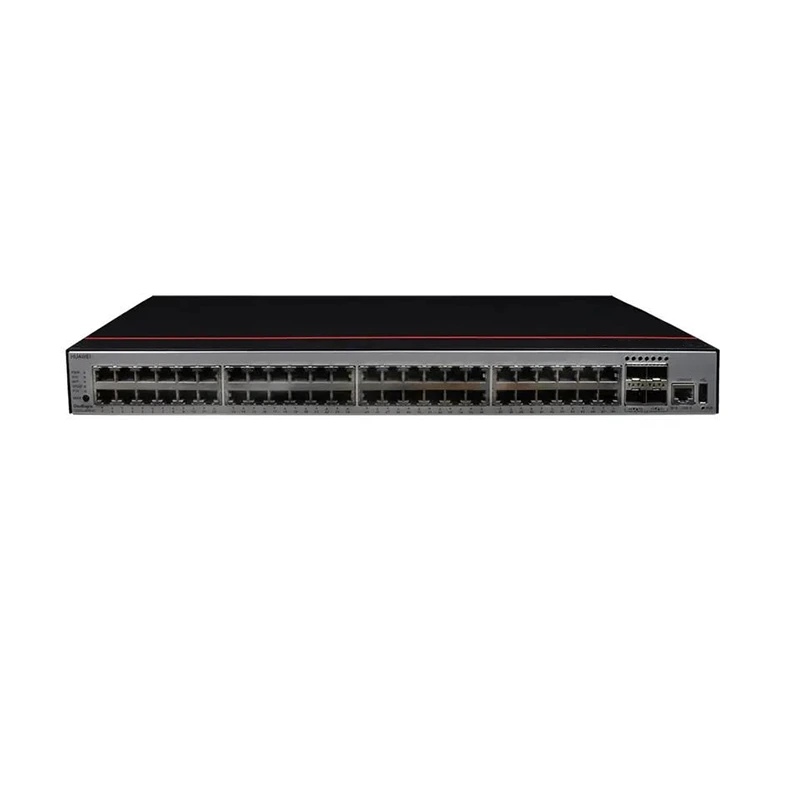

Figure 1 S5735S-L48P4S-A1 appearance

S5735S-L48P4S-A1 98011346 S5700 S5735S-L1 Series 48*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power switch for h w

Table 2 Technical specifications

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	3.23 kg (7.12 lb)
Weight with packaging [kg(lb)]	4.28 kg (9.44 lb)
Typical power consumption [W]	58.7 W
Typical heat dissipation [BTU/hour]	200.29 BTU/hour
Maximum power consumption [W]	Not providing the PoE function: 76.1 W 100% PoE loads: 456.1 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour]	Not providing the PoE function: 259.66 100% PoE loads: 1556.26
MTBF [year]	44.9 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	50 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans	2
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	6 A
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Eth Management port	Not supported
USB	Supported
RTC	Not supported
RPS	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Types of fans	Built-in
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Certification	EMC certification Safety certification Manufacturing certification
