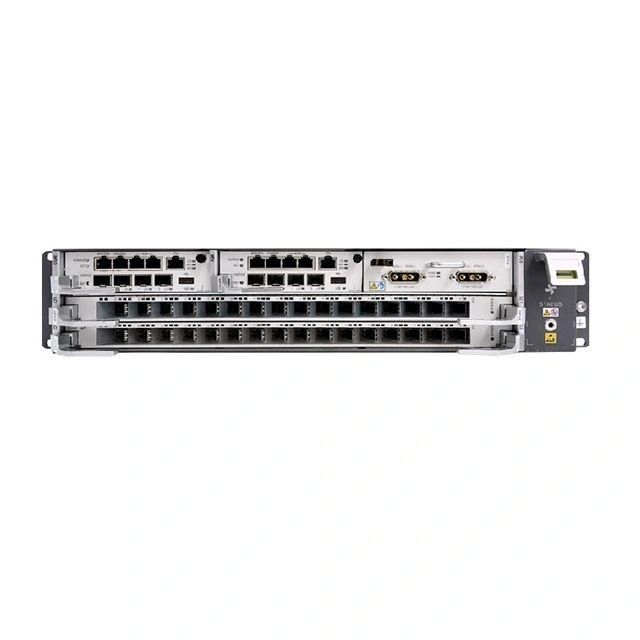

SmartAX MA5800-X7 GPON EPON 16×10G PON FTTH/FTTB Optic Access OLT Equipment
Model No.: MA5800-X7
Size: 482.6 × 268.7 × 263.9mm (with hanging ears); Fully equipped with approximately 26kg
Maximum access capability: GPON/XG-PON/XGS-PON: 112 ports,10G P2P: 56 ports
Main features: Virtual OLT, business slicing SmartOLT、QoS、 Multicast, Energy saving, D-CAP Fusion
Application scenarios: Medium scale optical access, suitable for medium-sized communities, parks, and urban area network edges
Warranty: 1 years
MOQ: 1 pieces
Application scenarios
Small and Medium-Sized Metropolitan Area Network Access: As a metropolitan area network access layer device, it meets the gigabit access needs of thousands of households within the region and is compatible with IPTV and broadband services.
Small and Medium-Sized Industrial Park/Enterprise All-Optical Network: Adapted for industrial parks, SMEs, and commercial complexes, it uniformly carries office, monitoring, and merchant dedicated lines, simplifying network layers through convergence and aggregation.
Edge Node/Township Access: Deployed in township data centers and edge nodes, it meets the needs of wide coverage in rural/suburban areas, achieving FTTH at low cost.
Hotel/Apartment/School Access: Provides all-optical access for hotels, apartments, and primary and secondary schools, supporting unified networking of guest rooms, classrooms, and office areas.
Core selling points
1. Distributed architecture, ultra wide and non blocking
Industry leading distributed forwarding, separation of control and forwarding, single slot 200G bandwidth, supporting 16 port 10G PON/4 port 40G PON without blocking.
2. Full service integration, supported by a single fiber optic network
Unified carrier of home broadband, enterprise dedicated lines, 5G backhaul Wi‑Fi 6/7、 Video surveillance IoT， Simplify network architecture.
3. Smooth evolution to protect investments
Hardware compatible with 40G/100G PON, no need to change the chassis, just replace the business board to smoothly upgrade.
4. Intelligent operation and maintenance, minimalist and efficient
Unified management of U2000, supporting remote configuration, fault diagnosis, performance monitoring, and software upgrades.
5. Green energy saving, optimal TCO
Level 6 dynamic energy-saving, automatic sleep mode for idle ports, reducing power consumption by 40%.
Parameters
| Comparison item | MA5800-X7 (Medium sized Main Force) |
| Product positioning | Medium scale optical access, suitable for medium-sized communities, parks, and urban area network edges |
| equipment height | 6U |
| Slot configuration | Main control board slots: 8, 9 (dual main control redundant backup) |
| Business/Upboard slots: 1-7 | |
| Maximum number of PON ports | 112 pieces (GPON/XG (S) - PON/Colombo) |
| Maximum number of GE/FE ports | 336 pieces |
| Maximum 10GE/GE ports | 168 of them |
| Number of ONTs connected | 34816 pieces |
| switching capacity | 4.68 Tbit/s (Backplane Bus) |
| Main control board exchange capacity | H901MPLB：7 Tbit/s |
| Maximum bandwidth per slot | H901MPLB：200 Gbit/s |
| Number of MAC addresses | 262143 |
| ARP/Routing Table Entry | 65536 |
| Number of concurrent 4K video users | 8000 |
| Physical specifications (width x depth x height) | 442.0mm × 268.7mm × 263.9mm (without hanging ears) |
| Maximum weight for full configuration | 26 kg (with hanging ears) |
| power supply method | DC power supply (dual backup) |
| Maximum input current | 40 A |
| Working environment temperature | -40℃ ～ +65℃ |
| system reliability | >99.999%, supports Type B/Type C protection, dual main control/dual power backup |
