USG6620 USG6630 02352HMF 12*GE RJ45+8*GE SFP+4*10GE SFP+ Security Firewalls
5.0
Samples:
$1500/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
USG6620, USG6630
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Simultaneous Sessions
without
Throughput
without
VPN Support
Yes
Products Status
Stock
Place of Origin
Guangdong, China
Type
Wired & Wireless
Products Description

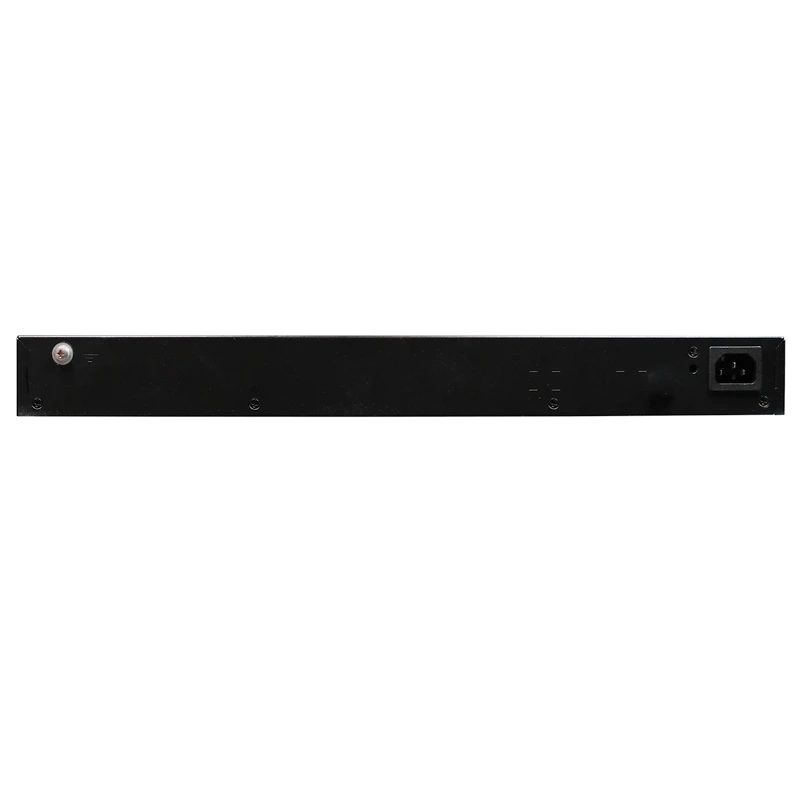

The USG6620, USG6630 has only AC models and no DC models and uses an integrated chassis that contains the fixed interface board, single power module, and built-in fan module. You can also add some optional modules, such as hard disk, additional power module, and expansion cards, to improve system reliability and add more ports.
Details Images
Specification
|
Item
|
Description
|
|
|
Part number
|
50050068
|
|
|
System specifications
|
||
|
CPU
|
Multi-core 1.0 GHz processor
|
|
|
Memory
|
DDR3 1 GB
|
|
|
Flash
|
32 MB
|
|
|
NAND Flash
|
512 MB
|
|
|
Micro SD card
|
Optional. Purchase one 64-GB micro SD card from Huawei as required.
|
|
|
Hard disk
|
Not supported
|
|
|
SPUB (the service engine)
|
Not supported
|
|
|
4G LTE data card
|
Supported
|
|
|
Dimensions and weight
|
||
|
Dimensions (Ha x Wb x D)
|
44 mm x 300 mm x 220 mm (1.73 in. x 11.81 in. x 8.66 in., 1 U)
|
|
|
Weight
|
1.55 kg
|
|
|
Power consumption and heat consumption
|
||
|
Typical power consumption
|
8.8 W
|
|
|
Maximum power consumption
|
10.5 W
|
|
|
Typical heat consumption
|
30.0 BTU/hour
|
|
|
Maximum heat consumption
|
35.8 BTU/hour
|
|
|
Power specifications
|
||
|
AC model
|
Supported (external AC power adapter)
|
|
|
Rated input voltage (AC)
|
100 V to 240 V, 50 Hz/60 Hz
|
|
|
Maximum input voltage (AC)
|
90 V to 264 V, 47 Hz to 63 Hz
|
|
|
Maximum input current/Maximum output power
|
0.8 A/24 W or 1.0 A/36 W
|
|
|
Heat dissipation
|
||
|
Fan module
|
Has no fan and uses natural cooling.
|
|
|
Port density
|
||
|
Console port
|
1 (RJ45)
|
|
|
USB 2.0 port
|
1
|
|
|
Service ports in standard configuration
|
8 10/100/1000M autosensing Ethernet electrical ports
|
|
|
Micro SD card slot
|
1
|
|
|
Expansion slot
|
None
|
|
|
Environment specificationsd
|
||
|
System reliability
|
MTBF (year)
|
12.75
|
|
MTTR (hour)
|
1
|
|
|
Long-term operating ambient temperature
|
0°C to 45°C
|
|
|
Storage ambient temperature
|
-40°C to 70°C
|
|
|
Operating ambient relative humidity
|
5% RH to 95% RH, non-condensing
|
|
|
Storage ambient relative humidity
|
5% RH to 95% RH, non-condensing
|
|
|
Altitude
|
5,000 m
|
|
