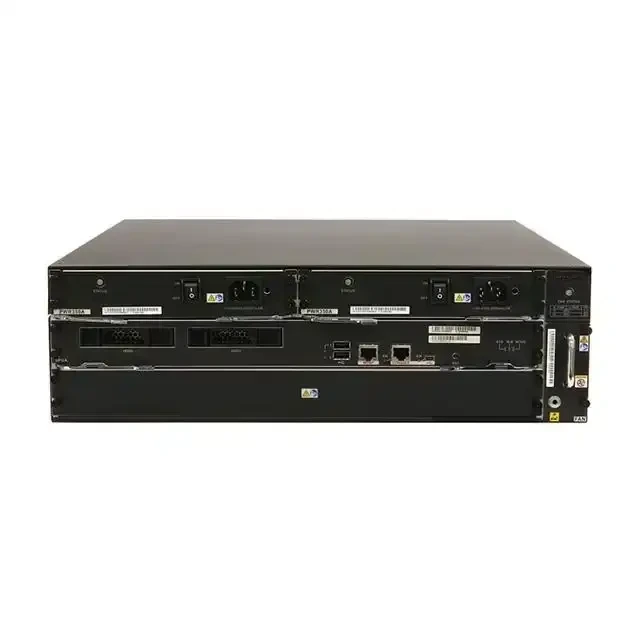

USG6712E Usg6000e Series Enterprise Rackmount Security Gateway Ai Multi-port Firewall
5.0
Samples:
$1000.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
USG6712E
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
12 kg
Place of Origin
Guangdong, China
Products Description
|
Description
|
Part Number
|
Model
|
First supported version
|
|
USG6712E-AC Host (20* (SFP+) + 2*QSFP+2*QSFP28 + 2*HA,2AC power supply)
|
02352CNL
|
USG6712E-AC
|
V600R006C00
|
|
USG6712E-AC Host(20*(SFP+)+2*QSFP+2*QSFP28+2*HA,2AC power supply)
|
02352CNL-001
|
USG6712E-AC
|
V600R007C20SPC600
|
Details Images
Specification
|
Item
|
Specification
|
|
Installation Type
|
Rack
|
|
Cabinet installation standard
|
Cabinet with a depth of 800 mm or above
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
43.6 mm x 442 mm x 600 mm (1.72 in. x 17.4 in. x 23.62 in.)
|
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
225 mm x 590 mm x 790 mm (8.86 in. x 23.23 in. x 31.1 in.)
|
|
Chassis height [U]
|
1 U
|
|
Weight with packaging [kg(lb)]
|
17.6 kg (38.8 lb)
|
|
Weight without packaging [kg(lb)]
|
12 kg (26.46 lb)
|
|
CPU
|
2 CPU, 14 cores/CPU, up to 1.9 GHz
|
|
Memory
|
DDR4 64GB, 32GB/CPU
|
|
Storage
|
USG6712E-AC (02352CNL): 32GB
|
|
USG6712E-AC (02352CNL-001): 32 GB
|
|
|
NOR Flash
|
64MB, 32MB/CPU
|
|
Hard disk
|
Optional. You can purchase a 2.5-inch SATA hard disk (240 GB/960 GB/1000 GB) from Huawei based on the site requirements. The hard
disk is hot swappable. |
|
Console port
|
RJ45
|
|
Eth Management port
|
RJ45
|
|
Maximum power consumption [W]
|
566 W
|
|
Maximum heat dissipation [BTU/hour]
|
1935.27 BTU/hour
|
|
MTBF [years]
|
25 years
|
|
MTTR [hours]
|
2 hours
|
|
Power supply mode
|
AC built-in
|
|
Number of power modules
|
2
|
|
Rated input voltage [V]
|
AC power input: 100 V AC to 130 V AC/200 V AC to 240 V AC, 50/60 Hz
|
|
High-voltage DC power input: 240V
|
|
|
Input voltage range [V]
|
AC power input: 90 V AC to 290 V AC, 47 Hz to 63 Hz
|
|
Rated output power [W]
|
800 W (100 V AC to 130 V AC)
|
|
1200 W (200 V AC to 240 V AC)
|
|
|
1200 W (240 V DC)
|
|
|
Types of fans
|
Pluggable
|
|
Number of fan modules
|
5
|
|
Heat dissipation mode
|
The fan module locates at the air exhaust of the system.
|
|
Airflow direction
|
Air inlet from front and air outlet from rear
|
|
Redundant power supply
|
1+1
|
|
Redundant fans
|
4+1
|
|
Long-term operating temperature [掳C(掳F)]
|
Without hard disk driver: 0掳C to 45掳C
|
|
With hard disk driver: 5掳C to 40掳C
|
|
|
Storage temperature [掳C(掳F)]
|
-40掳C to 70掳C
|
|
Long-term operating relative humidity [RH]
|
5% RH to 95% RH, non-condensing
|
|
Storage relative humidity [RH]
|
5% RH to 95% RH, non-condensing
|
|
Long-term operating altitude [m(ft.)]
|
Without hard disk driver: 0 m to 5000 m
|
|
With hard disk driver: 0 m to 3000 m
|
|
|
Storage altitude [m(ft.)]
|
0 m to 5000 m
|
