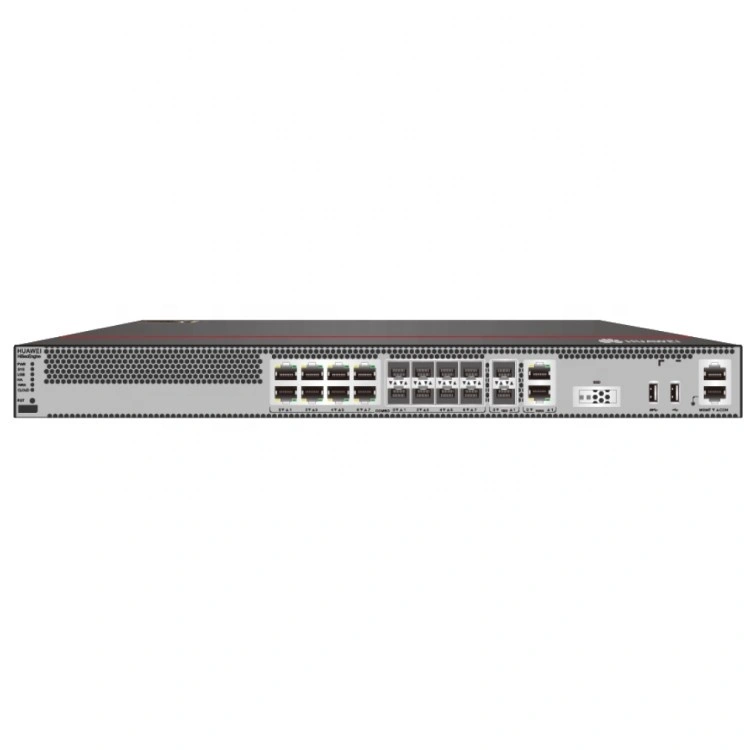

USG6385E-AC Usg6385e Firewall Appliance 02353afw 2*ge Wan+8*ge Combo+2*10ge Sfp+ Ssl Vpn

Installation Type

·       Rack

·       Work bench

Dimensions without packaging (H x W x D) [mm(in.)]

442mm x 420mm x 43.6mm

Dimensions with packaging (H x W x D) [mm(in.)]

550mm x 530mm x 220mm

Chassis height [U]

1 U

Weight with packaging (base configuration) [kg(lb)]

8.75 kg(lb)

Weight without packaging (base configuration) [kg(lb)]

5.8 kg(lb)

CPU

1 CPU, 4 cores/CPU, up to 1.4 GHz

Memory

DDR4 4 GB

NOR Flash

32 MB

NAND Flash

2 GB

Console port

RJ45

Maximum power consumption [W]

40 W

Maximum heat dissipation [BTU/hour]

136.88 BTU/hour

MTBF [year]

68.98 year

MTTR [hour]

2 hour

Number of power modules

1

Rated input voltage [V]

100 V to 240 V, 50 Hz/60 Hz

Input voltage range [V]

90V~290V,47Hz~63Hz

Number of fan modules

1

Maximum number of GE ports

8

Maximum number of 10GE ports

2

Maximum number of electrical ports

8

Long-term operating temperature [°C(°F)]

0°C to 45°C

Storage temperature [°C(°F)]

-40°C to 70°C

Long-term operating relative humidity [RH]

5% RH to 95% RH, non-condensing

Storage relative humidity [RH]

5% RH to 95% RH, non-condensing

Long-term operating altitude [m(ft.)]

0 m to 5000 m

Storage altitude [m(ft.)]

0 m to 5000 m
