W0PSA2200 02130909 S9300 series S9300E series S9312/S9306/S9303 Switch 2200W AC power module 1

W0PSA2200 02130909 S9300 series S9300E series S9312/S9306/S9303 Switch 2200W AC power module 2

W0PSA2200 02130909 S9300 series S9300E series S9312/S9306/S9303 Switch 2200W AC power module

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

W0PSA2200

Inquiry

Write a Review

Weight

< 2.5 kg

Switch Capacity

3.84 Tbps

Communication Mode

Full-Duplex

Certification

CE RoHS FCC

Rated input voltage

220 V AC/110 V AC; 50/60 Hz

Use

other

Place of Origin

Guangdong, China

Type

power module

Product Description

Version Mapping

Table 1 Switch chassis and software versions matching a 2200 W AC power module

Model	Power Module Name	S9300 Chassis	S9300E Chassis
W0PSA2200	2200 W AC power module	S9303, S9306 and S9312 chassis: In V100R006C00, this power module is supported only in the PoE power module slots. In V200R001C00 and later versions, this power module is supported in all the power module slots. S9310 chassis: supported in V200R010C00 and later versions	Supported in V200R001C00 to V200R013C00

Model

Power Module Name

S9300 Chassis

S9300E Chassis

W0PSA2200

2200 W AC power module

S9303, S9306 and S9312 chassis: In V100R006C00, this power module is supported only in the PoE power module slots. In V200R001C00 and later versions, this power module is supported in all the power module slots.

S9310 chassis: supported in V200R010C00 and later versions

Supported in V200R001C00 to V200R013C00

Appearance

A 2200 W AC power module is 3 U in height.

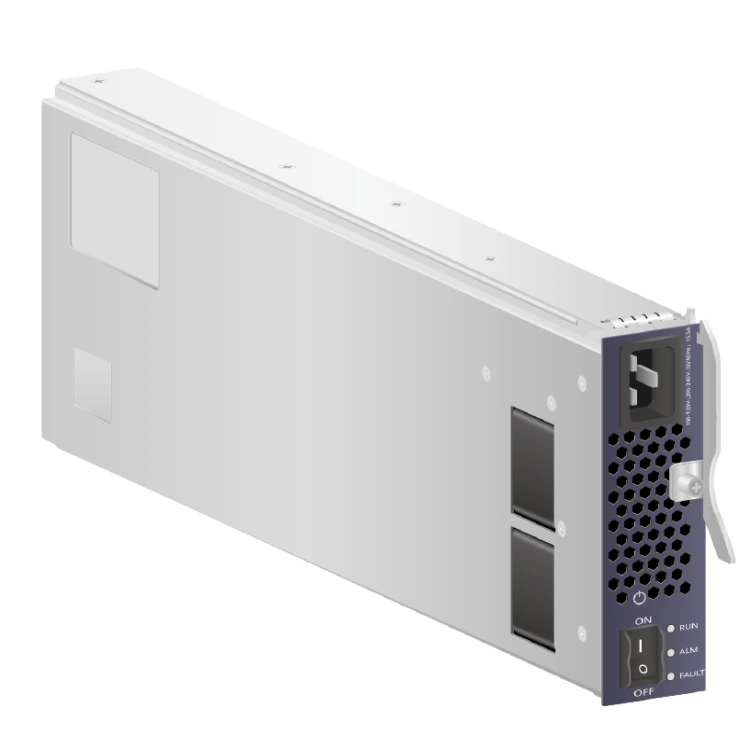

Figure 1 2200 W AC power module (W0PSA2200)

W0PSA2200 02130909 S9300 series S9300E series S9312/S9306/S9303 Switch 2200W AC power module for h w

Functions

A 2200 W AC power module provides a maximum power of 2200 W for the chassis. Table 2 describes the functions of a 2200 W AC power module.

Table 2 Functions of a 2200 W AC power module

Function		Description
Input protection	Input undervoltage protection	In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again.
Input protection	Input overcurrent protection	In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced.
Output protection	Output overvoltage protection	In this protection state: If output overvoltage is caused by the power module itself, the power module stops supplying power. When the system recovers from output overvoltage, the power module cannot automatically start supplying power again. If output overvoltage is caused by increase of the input voltage received from the external power source, the power module stops supplying power. When the system recovers from output overvoltage, the power module can automatically start supplying power again.
	Output overcurrent protection	In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again.
	Output short-circuit protection	In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again.
Overtemperature protection		When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping		The power module is hot swappable.

Panel Description

Figure 2 Panel of a 2200 W AC power module (W0PSA2200)

1. Power socket	2. Power switch	3. FAULT indicator
4. ALM indicator	5. RUN indicator	6. Ejector lever

Table 3 Indicators on a power module panel (W0PSA2200)

Indicator	Color	Description
FAULT	Red	Steady on: The power module has a fault that cannot be rectified.
ALM	Yellow	Steady on: A power output shutdown alarm, overtemperature alarm, output overcurrent alarm, input overvoltage alarm, or input undervoltage alarm has been generated. Blinking: Communication with the monitoring device (MCU or CMU) has been interrupted.
RUN	Green	Steady on: The power input is normal.

Indicator

Color

Description

FAULT

Red

Steady on: The power module has a fault that cannot be rectified.

ALM

Yellow

Steady on: A power output shutdown alarm, overtemperature alarm, output overcurrent alarm, input overvoltage alarm, or input undervoltage alarm has been generated.

Blinking: Communication with the monitoring device (MCU or CMU) has been interrupted.

RUN

Green

Steady on: The power input is normal.

Specifications

Table 4 Technical specifications of a 2200 W AC power module

Item		Value
Dimensions (H x W x D)		130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight		< 2.5 kg
Input	Rated input voltage	220 V AC/110 V AC; 50/60 Hz
	Rated input voltage range	200 V AC to 240 V AC (220 V AC input)/100 V AC to 120 V AC (110 V AC input); 47 Hz to 63 Hz
	Maximum input voltage range	90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage is in the range of 90 V AC to 175 V AC.)
	Maximum input current	15.5 A
Output	Maximum output current	42 A (220 V AC input)/21 A (110 V AC Input)
Output	Maximum output power	2200 W (220 V AC input)/1100 W (110 V AC input)
Hot swapping		Supported
Part number		02130909
