Optixstar Eg8147x6 Wi-fi 6 Routing-type Optical Network Terminal Ont
5.0
Samples:
$500.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
OptiXstar EG8147X6
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
0.6 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Router
Products Description

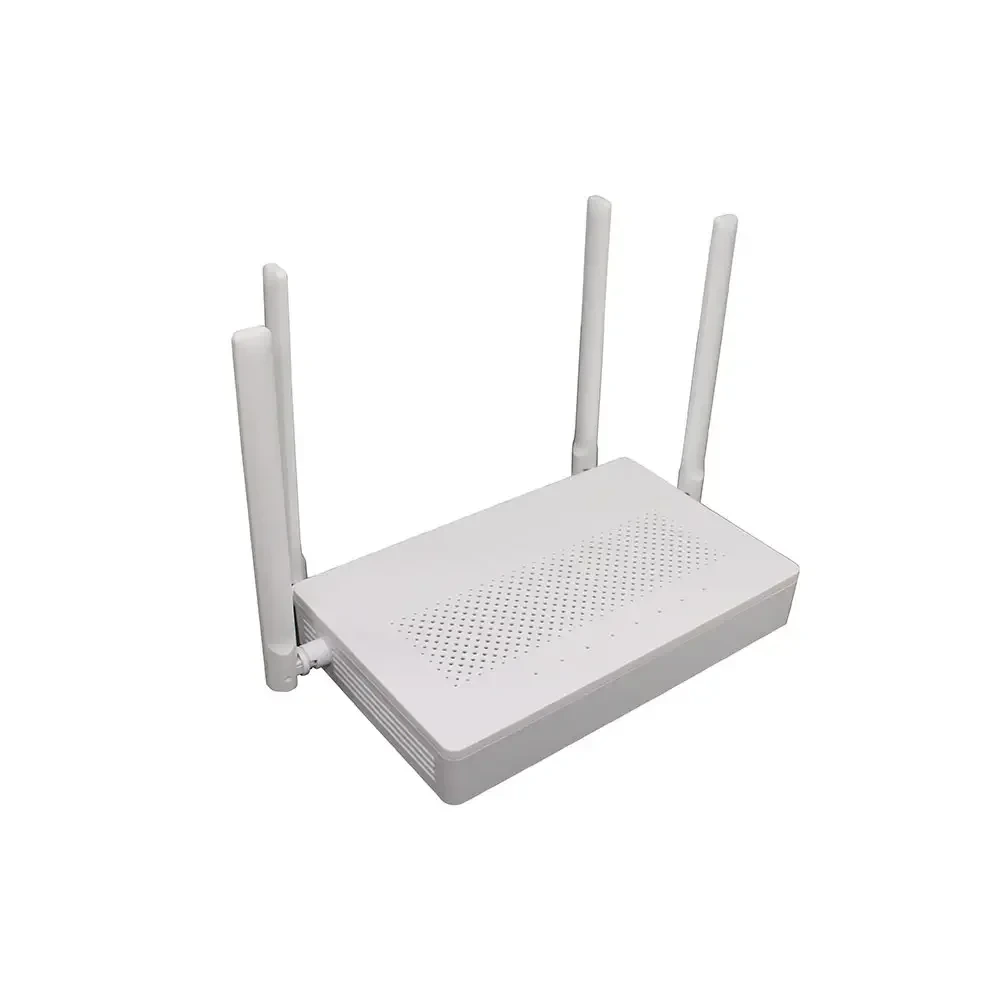

OptiXstar EG8147X6 is an intelligent Wi-Fi 6 routing-type Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance ensuring a high-quality experience for voice, data, and High Definition (HD) video services — along with future-oriented service support capabilities — OptiXstar EG8147X6 helps enterprises construct powerful all-optical access solutions.
Details Images
Specification
|
Parameters
|
HW OptiXstar EG8147X6
|
|
Dimensions (H x W x D)
|
35 x 220 x 145 mm
|
|
Weight (Without Power Adapter)
|
< 600 g
|
|
Operating Temperature
|
0–40°C
|
|
Operating Humidity
|
5–95% RH (non-condensing)
|
|
System Power Supply
|
11–14 V DC, 1.5 A
|
|
Power Adapter Input
|
100–240 V AC, 50/60 Hz
|
|
Maximum Power Consumption*
|
18W
|
|
NNI
|
GPON
|
|
UNI
|
4 x GE, 1 x POTS, 1 x CATV, 2.4G/5G Wi-Fi 6, 1 x USB
|
|
Installation Mode
|
Desktop
|
|
Authentication
|
802.1X
|
|
GPON Port
|
• Port type: SC/APC
|
|
|
• Class B+
|
|
|
• Receiver sensitivity: –27 dBm to –29 dBm
|
|
|
• Overload optical power: –8 dBm
|
|
|
• Wavelengths: US 1310 nm, DS 1490 nm
|
|
|
• Wavelength Blocking Filter (WBF) of G.984.5
|
|
|
• Flexible mapping between the GEM port and TCONT
|
|
|
• GPON: consistent with the SN or password authentication defined in G.984.3
|
|
|
• Bi-directional FEC
|
|
|
• SR-DBA and NSR-DBA
|
