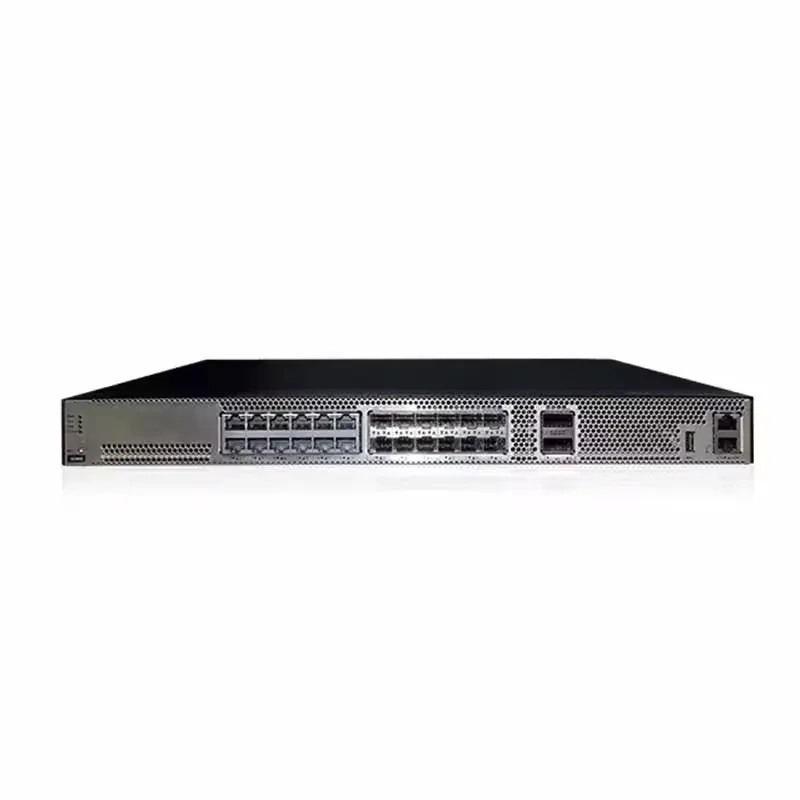

WLAN Access Controllers AC6805 12*10GE SFP+ ports Wifi Outdoor Access Point
● Model No.: AC6805
● Size:43.6 mm x 442 mm x 420 mm
● Port details: 12*GE ports, 12*10GE SFP+ ports, 2*40GE QSFP+ ports, no power
● Place of Origin: Guangdong, China
● Forwarding performance: Maximum 120Gbps; supports both direct forwarding and tunnel forwarding modes
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Wireless network core for large and medium-sized enterprise parks: This is its most core application scenario. In large office buildings, headquarters bases, and other scenarios, there are thousands of APs that need to be managed uniformly. The AC6805 can manage 10240 APs and, in conjunction with Huawei's full range of Wi Fi 6/7 APs, achieve wireless full coverage and seamless roaming in office areas, conference rooms, and public areas.
2. Wireless coverage of general education/higher education smart campus: In universities and large middle schools, wireless access is required for teaching buildings, libraries, dormitories, sports fields, etc. AC6805 can serve as the core of campus wireless networks, while also serving tens of thousands of teachers and students. In the case of Huawei Qiankun Cloud Platform, AC6805 was used to implement the cloud migration of campus network inventory.
3. Large scale medical/venue/hotel wireless network: In scenarios such as large hospitals, sports venues, conference centers, and star rated hotels that require high-density and high concurrency wireless coverage, AC6805 can centrally manage all APs and work with high-density APs to meet the simultaneous access needs of thousands of users. The wireless network construction project of Deyang People's Hospital adopts AC6805
Core selling points
1. Comprehensive wireless protocol and air interface optimization: supports 802.11k/v/r intelligent roaming, load balancing, and interference suppression; Support multiple secure accesses such as WPA3, MAC authentication, 802.1X, Portal, etc
2. Flexible networking: direct/side mounted deployment, L2/L3 layer network compatibility, NAT traversal (AP private network AC public network)
3. Rich operation and maintenance methods: iMaster NCE Campus/eSight network management, web interface, CLI command line; Visual monitoring, one click diagnosis, fault location
4. High reliability: dual AC redundancy VRRP、 Hot swappable power supply/fan
Detailed description
| Item | Specification |
|---|---|
| Installation Type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum: 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.40 in. x 17.48 in.) |
| Weight without packaging [kg(lb)] | 6.39 kg (14.09 lb) |
| Storage | M.2 memory card 32 GB |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Maximum power consumption [W] | 202.5 W |
| Maximum heat dissipation [BTU/hour] | 690.89 BTU/hour |
| Power supply mode | Pluggable power supply |
| Service port surge protection | 6 kV in common mode |
| Types of fans | Pluggable |
| Number of fan modules | 4 |
| Maximum number of physical ports on the entire device |
2*40G (QSFP+)+12*10GE (SFP+)+12*GE One 40G interface and four 10G interfaces are mutually exclusive. |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Noise at normal temperature (acoustic power) [dB(A)] | ≤ 55 dBA |
| Ground | Ground |
| USB | Standard USB 3.0 port (host type A) x 1 |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
