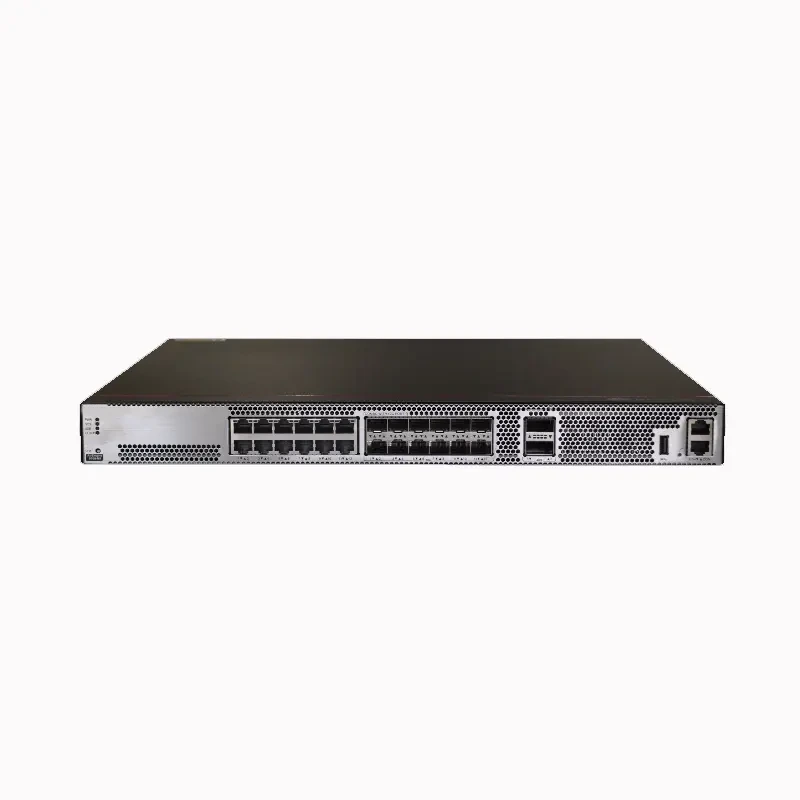

WLAN Access Controllers AirEngine 9700-M1 2*40GE QSFP+ ports Wireless Ap
● Model No.: AirEngine 9700-M1
● Size:43.6 mm x 442 mm x 420 mm
● Port details: 12*GE ports, 12*10GE SFP+ ports, 2*40GE QSFP+ ports, no power
● Place of Origin: Guangdong, China
● Forwarding performance: Up to 120 Gbps, achieved in both direct forwarding and tunnel forwarding modes
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Wireless network core for medium and large enterprise parks: This is its most core application scenario. High quality wireless coverage is required for office buildings, conference rooms, and public areas in parks, large manufacturing bases, or headquarters office areas with thousands of employees. The 9700-M1 can manage 3072 APs and, when combined with Huawei Wi Fi 6/7 APs, can easily meet the needs of high-density access and seamless roaming.
2. Wireless coverage of general education/higher education smart campus: In higher education institutions or large middle school campuses, stable and high concurrency wireless networks need to be provided for teaching buildings, libraries, dormitories, sports fields and other places. The 9700-M1 can serve as the core of campus wireless networks, serving tens of thousands of teachers and students. Its 120Gbps forwarding capability is sufficient to ensure a smooth teaching and office experience.
3. Large medical/hotel/venue wireless network: In scenarios such as large hospitals, star rated hotels, and conference centers that require high-density and high concurrency wireless coverage, the 9700-M1 can centrally manage all APs. Its AI intelligent RF optimization algorithm can effectively improve interference suppression efficiency and ensure the stable operation of high bandwidth services such as video conferences and AR/VR.
4. Multi branch wireless network core for enterprises: For large enterprises with multiple branch offices, 9700-M1 can be deployed at the headquarters to centrally manage the APs of all branch offices, achieve unified policy issuance and operation, and simplify management
Core functional characteristics
1. Air interface intelligent optimization: SmartRadio (DFA dynamic channel+TPC power control), 802.11k/v/r/BSS Coloring intelligent roaming; Support load balancing, interference suppression, and Airtime scheduling; Compatible with 802.11be (Wi Fi 7), smooth evolution
2. Multi factor secure access: WPA3, 802.1X, MAC, Portal, Radius, certificate authentication; Built in Portal/AAA server to reduce additional hardware investment; Support wireless threat detection and illegal AP location
3. Flexible networking deployment: direct/side mounted deployment, L2/L3 cross network segment networking, NAT traversal (AP private network AC public network); Support on-demand switching between centralized forwarding/local forwarding
4. Visual operation and maintenance: one click diagnosis, network health page, AP/user/traffic KPI visualization; AI fault prediction and root cause analysis to reduce operational complexity
Detailed description
| Item | Specification |
|---|---|
| Installation Type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum: 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.40 in. x 17.48 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Weight without packaging [kg(lb)] | 6.25 kg (13.78 lb) |
| Weight with packaging [kg(lb)] | 8.5kg (18.74 lb) |
| Storage | M.2 memory card 32 GB |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Maximum power consumption [W] | 163.4 W |
| Maximum heat dissipation [BTU/hour] | 557.49 BTU/hour |
| Power supply mode | Pluggable power supply |
| Number of power modules | 2 |
| Service port surge protection | 6 kV in common mode |
| Types of fans | Pluggable |
| Number of fan modules | 3 |
| Maximum number of physical ports on the entire device |
2*40G (QSFP+)+12*10GE (SFP+)+12*GE One 40G interface and four 10G interfaces are mutually exclusive. |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Noise at normal temperature (acoustic power) [dB(A)] | ≤ 55 dBA |
| Ground | Ground |
| USB | Standard USB 3.0 port (host type A) x 1 |
| MTBF [year] | 28 year |
| MTTR [hour] | 2 hour |
