S5735I-S24T4XE-V2 98012019 (2410/100/1000BASE-T ports, 410GE SFP+ ports) enterprise access switch

Samples:

$538/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

CloudEngine S5735I-S24T4XE-V2

Inquiry

Write a Review

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

Item	Details
Description	S5735I-S24T4XE-V2 (2410/100/1000BASE-T ports, 410GE SFP+ ports, 2*12GE stack ports, without power module)
Part Number	98012019
Model	S5735I-S24T4XE-V2

Details Images

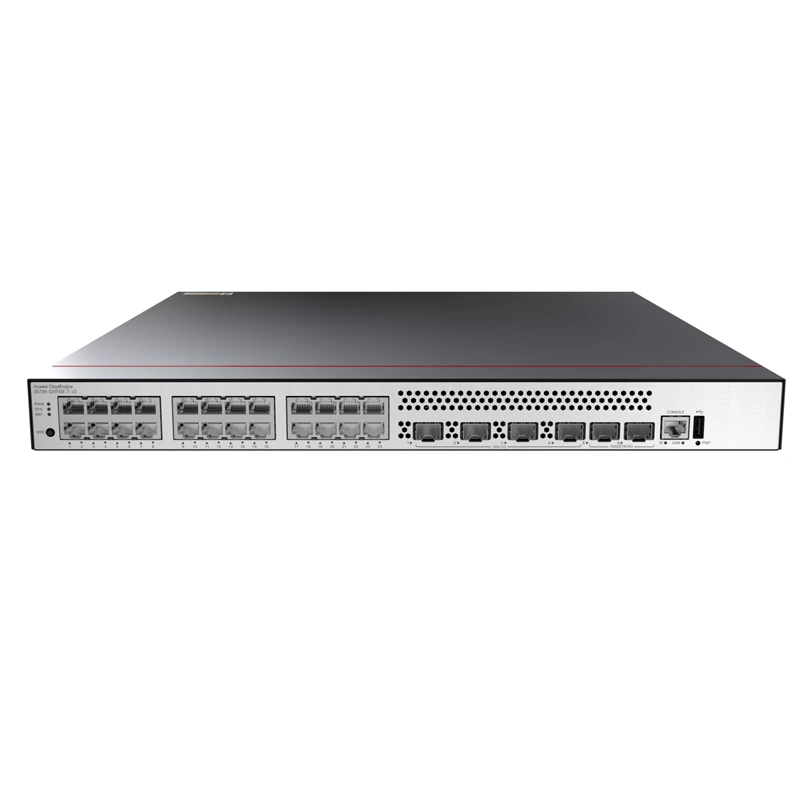

98012019 S5735I-S24T4XE-V2 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports)access switch

Specification

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Dimensions without packaging (H x W x D) [mm(in.)]	Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	4.44 kg (9.79 lb)
Weight with packaging [kg(lb)]	7.58 kg (16.71 lb)
Typical power consumption [W]	38.2 W
Typical heat dissipation [BTU/hour]	130.34 BTU/hour
Maximum power consumption [W]	60.90 W (two 180 W AC power modules)
Maximum power consumption [W]	94.77 W (two 1200 W DC power modules)
Maximum heat dissipation [BTU/hour]	207.80 (two 180 W AC power modules)
Maximum heat dissipation [BTU/hour]	323.36 (two 1200 W DC power modules)
MTBF [year]	146.35 year
MTTR [hour]	2 hour
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	51.5 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	39.5 dB(A)
Number of card slots	0
Number of power slots	2
Number of fans modules	3
Redundant power supply	1+1
Redundant power supply	Power modules without fans and power modules with fans cannot be installed in the same chassis.
Long-term operating temperature [°C(°F)]	–40°C to +65°C (-40°F to 149°F) at an altitude of 0–1800 m (0–5906 ft.), mapping industrial optical modules
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
	Devices cannot start when the temperature is lower than -25°C (-13°F).
Storage temperature [°C(°F)]	–40°C to +75°C (–40°F to +167°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz
	High-voltage DC input: 240 V DC
	DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45–65 Hz
Input voltage range [V]	High-voltage DC input: 190 V DC to 290 V DC
