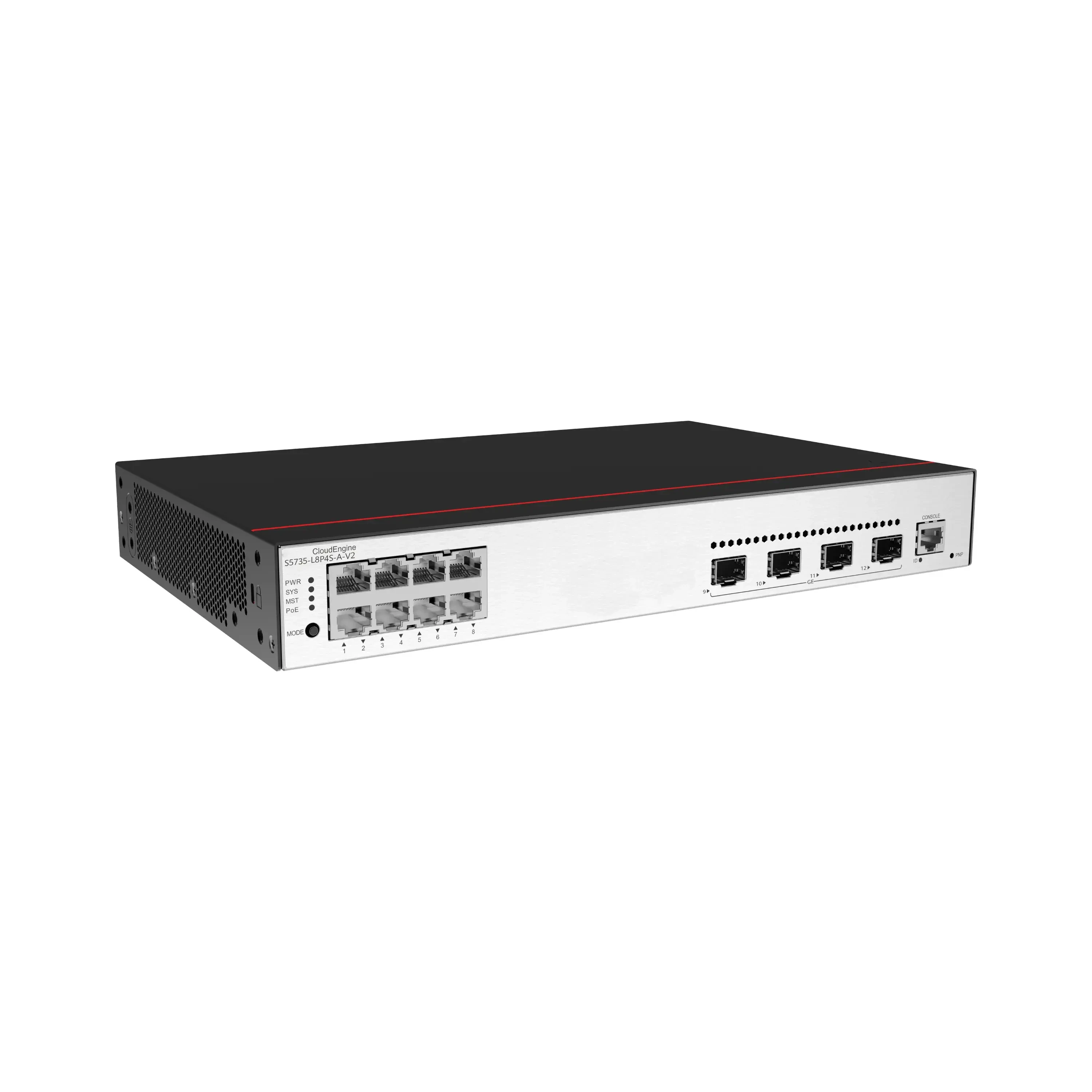

S5735I-L8P4X-A-V2 98012151 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power) enterprise access switch
5.0
Samples:
$495/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
CloudEngine S5735I-L8P4X-A-V2
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
4 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Switch
Products Description
S5735I-L8P4X-A-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)
|
Item
|
Details
|
|
Description
|
S5735I-L8P4X-A-V2 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)
|
|
Part Number
|
98012151
|
|
Model
|
S5735I-L8P4X-A-V2
|
|
First supported version
|
V600R022C10
|
Details Images
Specification
|
Item
|
Specification
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 320.0 mm x 210.0 mm (1.72 in. x 12.6 in. x 8.27 in.)
|
|
|
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm
x 320.0 mm x 217.0 mm (1.72 in. x 12.6 in. x 8.54 in.) |
|
Dimensions with packaging (H x W x D) [mm(in.)]
|
90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)
|
|
Chassis height [U]
|
1 U
|
|
Weight without packaging [kg(lb)]
|
2.23 kg (4.92 lb)
|
|
Weight with packaging [kg(lb)]
|
3.06 kg (6.75 lb)
|
|
Typical power consumption [W]
|
22.42 W
|
|
Typical heat dissipation [BTU/hour]
|
76.5 BTU/hour
|
|
Maximum power consumption [W]
|
Without PoE: 27.59 W
|
|
|
Full PoE load: 173.15 W (PoE: 125 W)
|
|
Maximum heat dissipation [BTU/hour]
|
Without PoE: 94.14
|
|
|
Full PoE load: 590.81
|
|
MTBF [year]
|
69.71 year
|
|
MTTR [hour]
|
2 hour
|
|
Availability
|
>0.99999
|
|
Noise at normal temperature (acoustic power) [dB(A)]
|
47 dB(A)
|
|
Noise at normal temperature (acoustic pressure) [dB(A)]
|
35 dB(A)
|
|
Number of card slots
|
0
|
|
Number of power slots
|
0
|
|
Number of fans modules
|
1
|
|
Redundant power supply
|
Not supported
|
|
Long-term operating temperature [°C(°F)]
|
–40°C to +65°C (-40°F to 149°F) at an altitude of 0–1800 m (0–5906 ft.), mapping industrial optical modules
|
|
Restriction on the operating temperature variation rate [°C(°F)]
|
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.). |
|
|
Devices cannot start when the temperature is lower than -25°C (-13°F).
|
|
Storage temperature [°C(°F)]
|
–40°C to +70°C (–40°F to +158°F)
|
