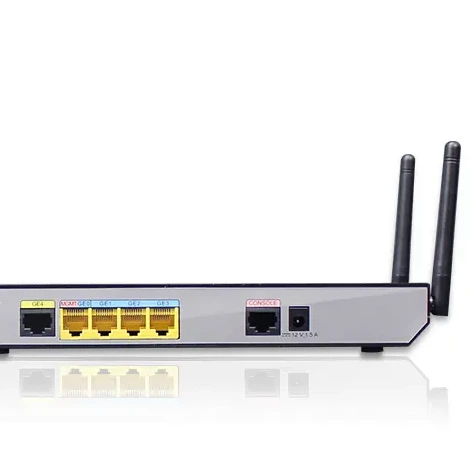

AR157VW 02354416 ADSL2+ ANNEX A/M WAN,4FE LAN,802.11b/g/n AP,4FXS+1FXO,1 USB Original Mini WiFi Router
5.0
Samples:
$336/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
AR157VW
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
3 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Router
Products Description
next generation routers, the AR100 series are designed for enterprise branch offices and small businesses, delivering a comprehensive set of services, including routing, switching, voice, securi ty, and wireless access
Details Images
Specification
|
Item
|
Specification
|
|
System parameters
|
|
|
Processor
|
Dual-core, 533 MHz
|
|
Memory
|
512 MB
|
|
Flash
|
512 MB
|
|
Micro SD card (sd1 by default)
|
None
|
|
Hard disk
|
Not supported
|
|
Dimensions and weight
|
|
|
Dimensions (H x W x D)
|
Without rack-mounting bracket installed: 44.0 mm x 300.0 mm x 216.4 mm (1.73 in. x 11.81 in. x 8.52 in.)
|
|
With rack-mounting brackets installed: 44.0 mm x 482.6 mm x 216.4 mm (1.73 in. x 19.00 in. x 8.52 in.)
|
|
|
Weight
|
2.8 kg (6.17 lb)
|
|
Power
|
|
|
Rated input voltage range (AC)
|
100 V to 240 V, 50 Hz/60 Hz
|
|
Maximum input voltage range (AC)
|
90 V to 264 V, 47 Hz to 63 Hz
|
|
Maximum output current
|
5 A
|
|
Maximum output power
|
60 W
|
|
RPS
|
Not supported
|
|
PoE
|
Not supported
|
|
Power consumption
|
|
|
Maximum power consumption
|
20.8 W
|
|
Heat dissipation
|
|
|
Fan
|
None
|
|
Airflow (facing the front panel)
|
None
|
|
Interface density
|
|
|
Management interfaces
|
1 (RJ45)
|
|
CON/AUX interfaces
|
1 (RJ45)
|
|
USB 2.0
|
1
|
|
Service interfaces (standard configuration)
|
WAN interface: one ADSL-A/M interface
|
|
LAN interfaces: four FE electrical interfaces, in which FE0 LAN interface can be switched to a WAN interface, and two Wi-Fi
antenna interfaces |
|
|
Voice interfaces: four FXS interfaces, one FXO interface
|
|
|
Extended slots
|
Not supported
|
|
Environment
|
|
|
Operating temperature
|
0°C to 45°C (32°F to 113°F)
|
|
|
|
|
NOTE:
|
|
|
When the altitude is between 1800 m and 5000 m, the operating temperature reduces by 1°C every time the altitude increases 220 m.
|
|
|
|
|
|
Storage temperature
|
-40°C to +70°C (-40°F to +158°F)
|
|
Operating relative humidity
|
5% to 95%, noncondensing
|
|
Operating altitude
|
< 5000 m (16404.2 ft.)
|
|
Part number
|
2354416
|
