Cr2b0bkp0810 02355529 Ne20e-s8 Integrated Dc Chassis Components
5.0
Samples:
$1000/piece | Min. order : 1 piece
Shipping:
Express · Ocean freight · Land freight · Air freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-50(pieces):7(days),51-100(pieces):15(days),>100(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 1000 sets)
Brand Name:
hw
Model Number:
CR2B0BKP0810
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Dimensions without packaging (H x W x D)
222 mm x 220 mm x 442 mm
Chassis height
5 U
Weight without packaging
10.5 kg (23.15 lb)(base configuration)
Part Number
02355529
Use
other
Place of Origin
Guangdong, China
Type
Chassis
Product Description
NE20E-S8
Overview
Table 1 Basic information about the NE20E-S8
| Description | Part Number | Model | First Supported Version | Remarks |
|---|---|---|---|---|
| NE20E-S8 Integrated DC Chassis Components | 02355529 | CR2B0BKP0810 | V800R008C10 | - |
Appearance

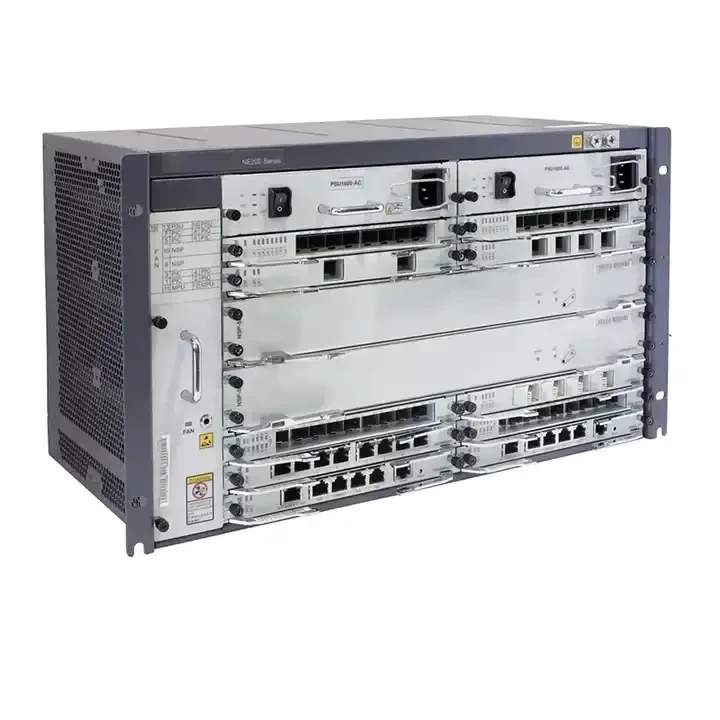

Figure 1 Appearance of the NE20E-S8(DC)
Table 2 Technical specifications of the CR2B0BKP0810
| Item | Specification |
|---|---|
| Cabinet installation standards | ETSI 21-inch; IEC 19-inch |
| Dimensions without packaging (H x W x D) [mm(in.)] | 222 mm x 220 mm x 442 mm (8.74 in. x 8.66 in. x 17.40 in.) |
| Chassis height [U] | 5 U |
| Weight without packaging (base configuration) [kg(lb)] | 10.5 kg (23.15 lb) |
| Weight without packaging (full configuration) [kg(lb)] |
[NSP-240] 21.5 kg (47.4 lb) [NSP-480] 24.1 kg (53.1 lb) |
| Typical power consumption [W] |
493 W(NSP-50) 559 W(NSP-120) 615 W(NSP-240) 942 W(NSP-480) |
| Typical heat dissipation [BTU/hour] |
1599.5 BTU/hour(NSP-50) 1813.6 BTU/hour(NSP-120) 1995.3 BTU/hour(NSP-240) 3056.2 BTU/hour(NSP-480) |
| MTBF [year] | 138.61 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999999588 |
| Flash memory |
MPU:16 MB NSP-50: 64 MB NSP-120:64 MB NSP-240:64 MB NSP-A/B:64 MB NSP-C:128 MB |
| Power supply mode | DC |
| Rated input voltage [V] | -48 V/-60 V |
| Input voltage range [V] | -40 V to -72 V |
| Maximum input current [A] | 32 A |
| Maximum input cable diameter [mm²] | 16mm^2. 6mm^2 (1-20 meters) recommended. 10mm^2 (21-35 meters) recommended |
| Front-end circuit breaker/fuse [A] | ≥32 A |
| Heat dissipation | Air cooling |
| Airflow direction | left-to-right direction |
| Noise at normal temperature (acoustic power) [dB(A)] | < 72 dB (meeting the ETSI 72 dBA standard) |
| Number of slots | 15 |
| Number of service board slots | 8 |
| Switching capacity |
100 Gbps(NSP-50) 240 Gbps(NSP-120) 480 Gbps(NSP-A/B) 480 Gbps(NSP-240) 960 Gbps(NSP-C) |
| Redundant MPUs | 1:1 |
| Redundant network processing units | 1:1 |
| Redundant power supply | 1+1 |
| Redundant fans | If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C. |
| Long-term operating temperature [°C(°F)] | 0°C(33.8°F) to 45°C(113°F) |
| Short-term operating temperature [°C(°F)] | -5°C(23°F) to 55°C(131°F) |
| Enhanced operating temperature [°C(°F)] | -40°C(-40°F) to 65°C(149°F), –20°C(-4°F) start |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 30°C/hour(54°F/hour) |
| Storage temperature [°C(°F)] | -40°C(-40°F) to 70°C(158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | <= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m(< 16404.2 ft.) |
