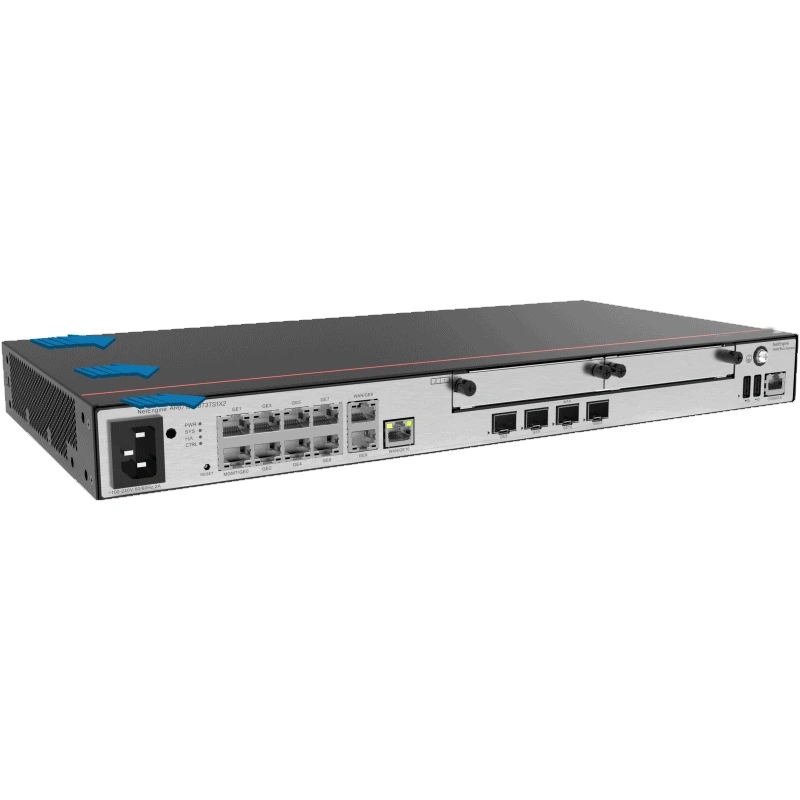

Enterprise Access Routers AR6710-L8T3TS1X2 With 2*GE combo WAN
● Model No.:AR6710-L8T3TS1X2
● Size: 90 mm x 570 mm x 390 mm
● Manage ports:1×RJ45 Console、1×USB 2.0
● Place of Origin: Guangdong, China
● Core strengths:Dual controller redundancy, 14 × 10GE optical+10 × GE electrical, 4 × SIC+8 × WSIC+6 × XSIC expansion, CPU+NP heterogeneous forwarding, 280Mpps extreme forwarding, ≥ 30Gbps IPSec, dual power redundancy, routing/switching/security/SD-WAN integration
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Export gateway for small businesses/subsidiaries/stores: This is its most core application scenario. In small business headquarters, branches, or retail stores with 50-100 employees, it can serve as a network egress router, connecting 2 GE links and 1 10GE link (via 2 GE Combo WAN ports and 1 10GE optical port). Its 2 Gbps NAT forwarding performance can support daily internet, email, cash register system and other traffic for all employees. Huawei's official information clearly positions it as an ideal choice for "headquarters or branches of small and medium-sized enterprises".
2. Edge nodes for SD-WAN networking: With built-in SD-WAN functionality, they can serve as branch nodes (Spokes) for enterprise SD-WAN networks, enabling intelligent connections with headquarters or other branches. Supports typical SD-WAN performance of 1.2 Gbps, supports intelligent routing based on application and link quality, and ensures that critical applications (such as ERP and video conferencing) are always transmitted on the optimal link.
3. Multi service integration access node: integrates routing, switching VPN、 Integrating multiple functions such as security and voice. It can expand 5G/LTE, E1/T1, voice, firewall and other business cards through 2 SIC slots to meet the diversified development needs of enterprises in the future.
4. IPsec VPN gateway: Provides 1.6 Gbps IPsec performance, can establish encrypted tunnels through hardware acceleration, connect remote branches or employees on business trips, and ensure data transmission security.
Core functional characteristics
- 1. Routing and Switching
- Supports IPv4/IPv6 dual stack, static routing RIP、OSPF、BGP、IS‑IS
- Support MPLS, L3VPN, VPLS, EVPN, QinQ, VLAN, port aggregation, and stacking
- Support NAT, PAT, port mapping, traffic control (QoS), ACL access control
- 2. VPN and Security
- Supports various VPNs such as IPSec, GRE, L2TP, SSL VPN, EVPN, etc
- Built in firewall, URL filtering, Intrusion Prevention (IPS), AAA authentication, URPF attack prevention
- Support management of plane security, SSH, SNPv3, NETCONF/YANG encryption management
- 3. High reliability and operation and maintenance
- Support dual controller, dual forwarding, dual power redundancy, hot swappable board
- Support high reliability features such as VRRP, BFD, FRR, NSR, GR, etc
- Support ZTP zero configuration, USB opening, iMaster NCE centralized control
- Support multiple operation and maintenance methods such as Web, CLI, SNMP, NETCONF, etc
- 4. Multi WAN and SD-WAN
- Support multi WAN load balancing, intelligent routing, link backup, 5G/4G backup
- Fully supports Huawei SD-WAN solutions, including intelligent traffic scheduling, application recognition, and SLA guarantee
- Compatible with cloud platforms (Huawei Cloud, AWS, Azure, etc.), supporting cloud edge collaboration
Detailed description
| Item | Specification |
|---|---|
| Installation type |
|
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.) |
| Weight with packaging [kg(lb)] | 4.6 kg (10.12 lb) |
| Weight without packaging [kg(lb)] | 3.2 kg (7.04 lb) |
| CPU | 1.4 GHz, quad-core |
| Memory | 4 GB |
| NAND Flash | 2 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 8 x GE electrical, 1 x GE combo |
| WAN ports | 1 x 10GE SFP+, 2 x GE combo |
| Number of service board slots | 2 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 2/2 |
| WSIC slots (default/maximum) | 0/1 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 41.89 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999945502 |
| Typical power consumption [W] | 27 W |
| Maximum power consumption [W] | 33 W |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] | 70 W |
| Redundant power supply | Not supported |
| Types of fans | Built-in |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 45.3 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
